SparkFun 6 Degrees of Freedom IMU Digital Combo Board - ITG3200/ADXL345

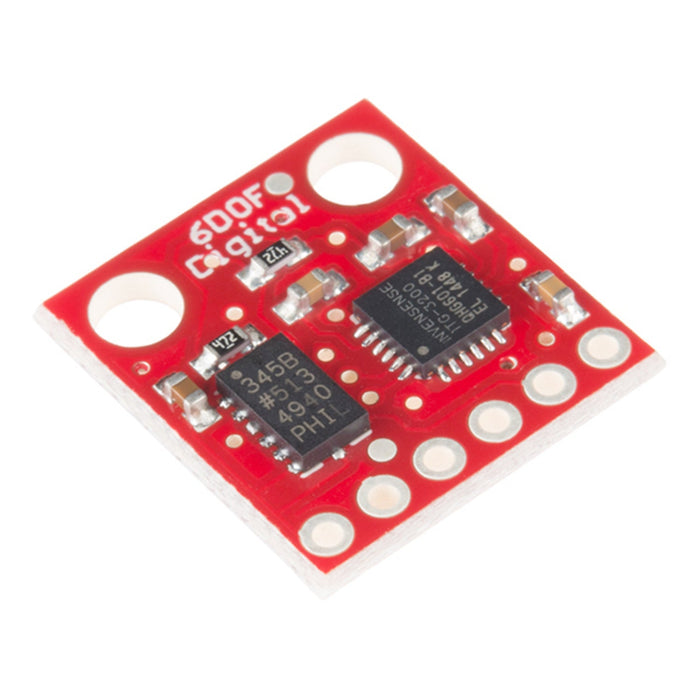

This is a simple breakout for the ADXL345 accelerometer and the ITG-3200 MEMS gyro. With this board, you get a full 6 degrees of freedom. The sensors communicate over I2C and one INT output pin from each sensor is broken out. If you need a simple and tiny board that gives you 6 degrees of freedom, this would be a good choice.
Having a hard time picking an IMU? Our Accelerometer, Gyro, and IMU Buying Guide might help!
Features:
- Tiny!
- Two mounting holes
- ADXL345 accelerometer
- ITG-3200 gyro
- 3.3V input
- I2C interface
Documents:
- Schematic
- Eagle Files
- Datasheet (ITG-3200)
- Datasheet (ADXL345)
- bildr Tutorial
- GitHub
The SparkFun 6 Degrees of Freedom IMU Digital Combo Board - ITG3200/ADXL345 appears in the following collections:
SKU SF-SEN-10121
