SMT Test Socket - TQFP-44 Breakout

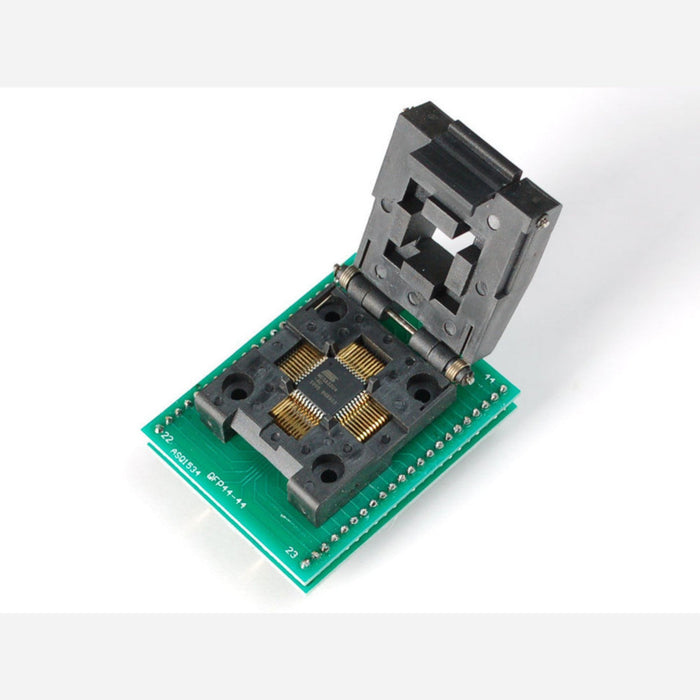

This ZIF (zero insertion force) test socket lets you program and test SMT parts in TQFP-44 packages without soldering. Open the latch, place your chip carefully into the socket, and close the top — the IC is held securely against gold contact fingers for reliable connection.

The socket is soldered onto a pair of PCBs that convert it into a 44-pin DIP footprint with 15.24 mm (0.6″) row spacing, making it easy to use on a breadboard. Manufactured by Yamaichi.

Key Features

• ZIF Socket – Zero insertion force for easy chip placement and removal
• TQFP-44 Compatible – Fits any QFP-44 in a 10 mm square body
• DIP Breakout – Converts to 44-pin DIP with 15.24 mm (0.6″) row spacing
• Gold Contact Fingers – Reliable electrical connection
• Breadboard Friendly – DIP footprint for easy prototyping

Package Contents

• 1× SMT Test Socket (TQFP-44) with DIP breakout PCB
