PiBreak Raspberry Pi Prototyping Board
The PiBreak from Freetronics is a prototyping board for the Raspberry Pi, providing labelled breakout pins for all GPIOs, a large solder-pad prototyping area, and GND and 3.3 V power rails for easy connections.

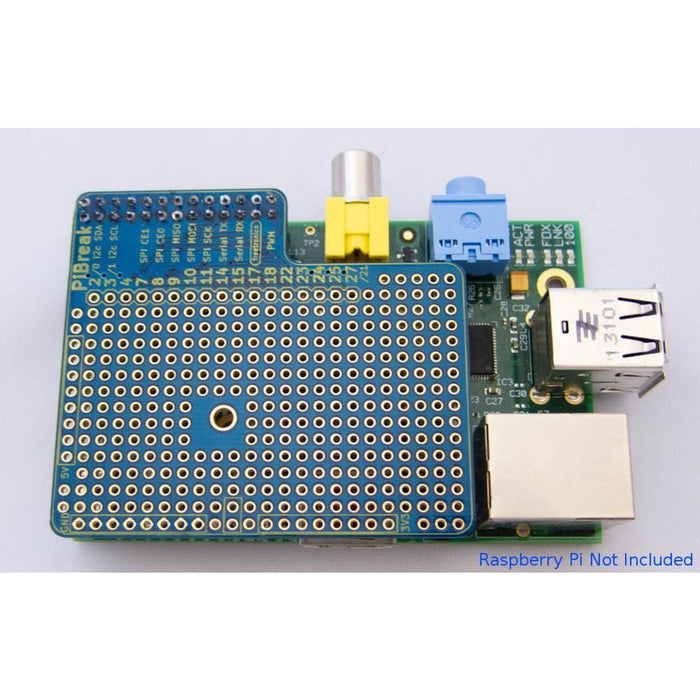

Compatible with Raspberry Pi models that have a 26-pin expansion header, including the original Model A and Model B.
Note: This board will physically fit on newer Raspberry Pi models with a 40-pin header (A+, B+, Pi 2, Pi 3, etc.), but it only connects to the first 26 pins. For full 40-pin breakout, see the PiBreak Plus.
Key Features
- Gold-Plated PCB (ENIG) – Durable, corrosion-resistant finish
- Large Prototyping Area – Solder pads for placing your own components

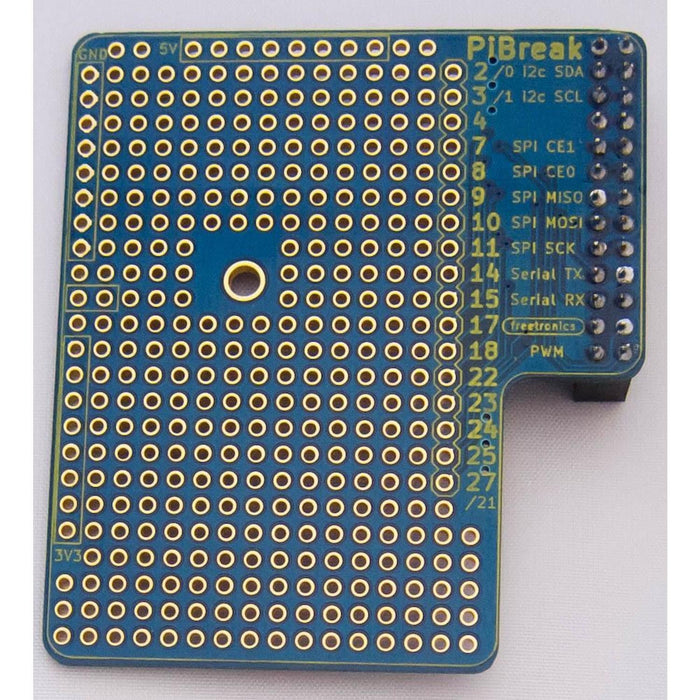

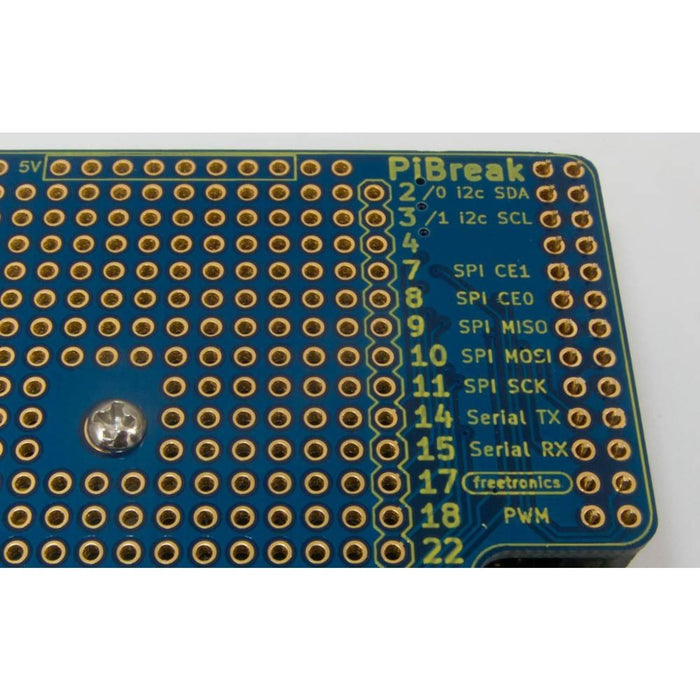

- Labelled GPIO Breakout – All 26 pins broken out and clearly marked
- Power Rails – GND and 3.3 V rails for easy power distribution

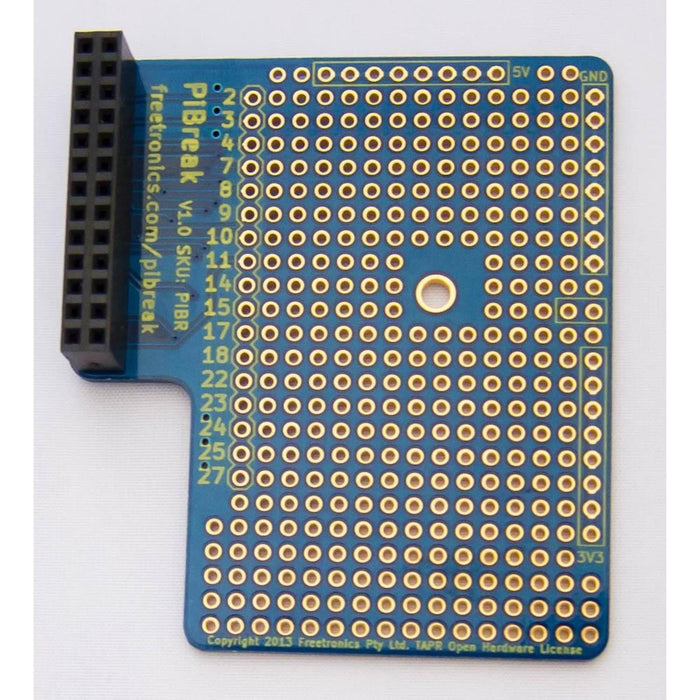

- Dual-Side Pinout Markings – Pin labels on both top and bottom of the board

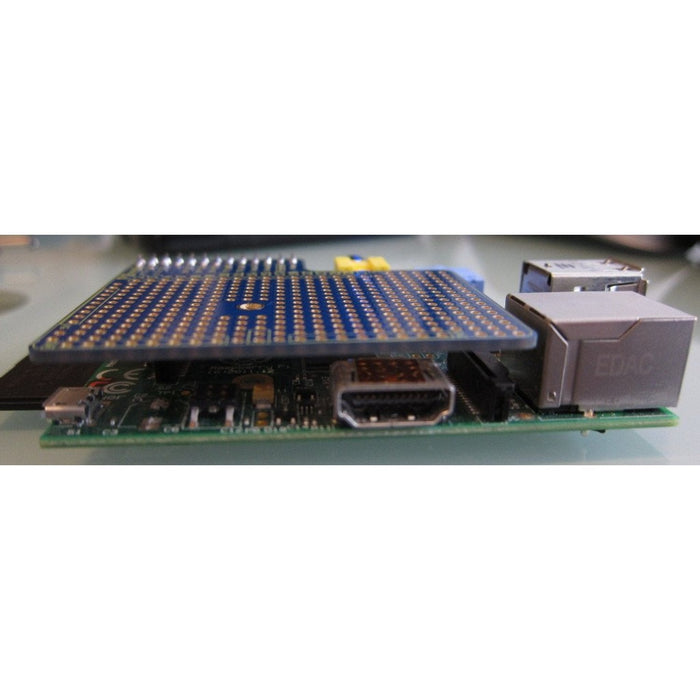

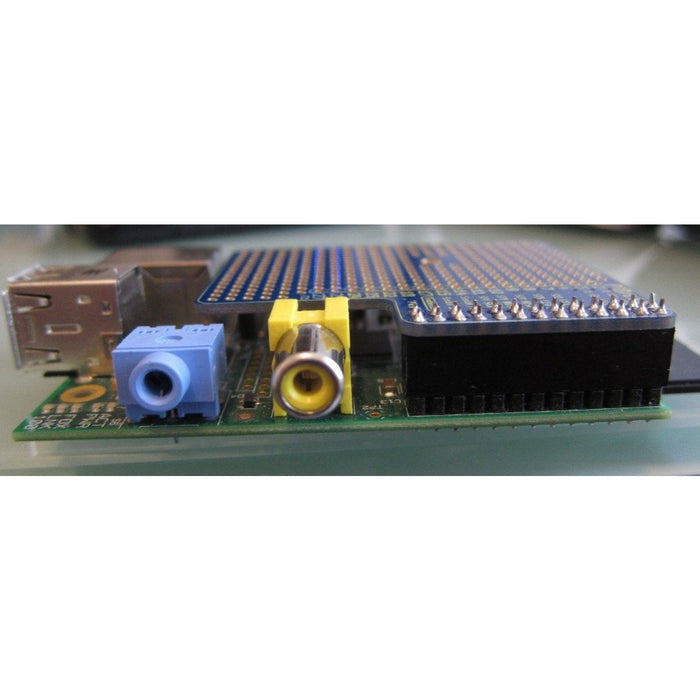

- Mounting Hardware Included – Nut, bolt, and spacer for secure attachment
Ideal For
- Prototyping circuits with the Raspberry Pi
- Connecting sensors and components to GPIO pins
- Learning electronics with the Raspberry Pi platform
Package Contents
- 1× PiBreak prototyping board
- 1× Nut, bolt, and spacer
