Temperature Sensor - TMP36

Temperature Sensor - TMP36

We have ✅ 19 available of the SF-SEN-10988 in our Sydney warehouse. An extra 907 units will be available shortly.

Express post delivery (2-5 business days)

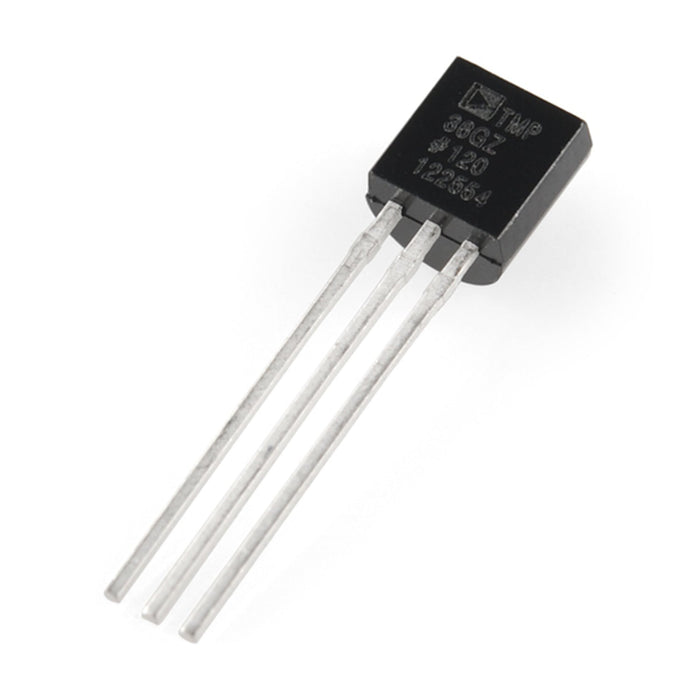

This is the same temperature sensor that is included in our SparkFun Inventor’s Kit. The TMP36 is a low voltage, precision centigrade temperature sensor. It provides a voltage output that is linearly proportional to the Celsius temperature. It also doesn’t require any external calibration to provide typical accuracies of ±1°C at +25°C and ±2°C over the −40°C to +125°C temperature range. We like it because it’s so easy to use: Just give the device a ground and 2.7 to 5.5 VDC and read the voltage on the Vout pin. The output voltage can be converted to temperature easily using the scale factor of 10 mV/°C.

Features:

  • Voltage Input: 2.7 V to 5.5 VDC
  • 10 mV/°C scale factor
  • ±2°C accuracy over temperature
  • ±0.5°C linearity
  • Operating Range: −40°C to +125°C

Documents:

The Temperature Sensor - TMP36 appears in the following collections:

SKU SF-SEN-10988
by Little Bird

Customer Reviews

Based on 2 reviews
100%
(2)
0%
(0)
0%
(0)
0%
(0)
0%
(0)
R
Ricky Sinclair
Temperature Sensor - TMP36

I give the Temperature Sensor - TMP36 a rating of 5 stars!

J
John Henry
Temperature Sensor - TMP36

I am currently playing around with Arduino and noticed the TMP36 sensor is used to make an analog thermometer.
Jaycar used to have a shop in my town but they recently closed down which makes it inconvenient to purchase small quantities of electronic components.
I googled TMP36 and up came Little Bird, the price seemed great so I ordered a few and they arrived very promptly. I would not hesitate to use them again.
