We have ✅ 10 available of the LB-LR0509A in our Sydney warehouse.

Express post delivery (2-5 business days)
Specification:

14 Digital input / output port: RX, TX, D2 - D13
8 analog inputs: A0 - A7
1 pairs of ports TTL level serial transceiver: RX / TX
6 PWM ports: D3, D5, D6, D9, D10, D11
Using Atmel AtMega328P-AU MCU
Support serial download
Support for external 3.3V - 12V DC power supply
Support 9V battery supply
Clock frequency: 16MHz
Size: 33.3 x 18.0mm
Circuit voltage: 3.3 V
Standard power supply: 5V

Note: Please check carefully that you align the black wire of your FTDI cable with the pin marked GND before applying power. Not all Pro Minis are oriented the same.


Package included:

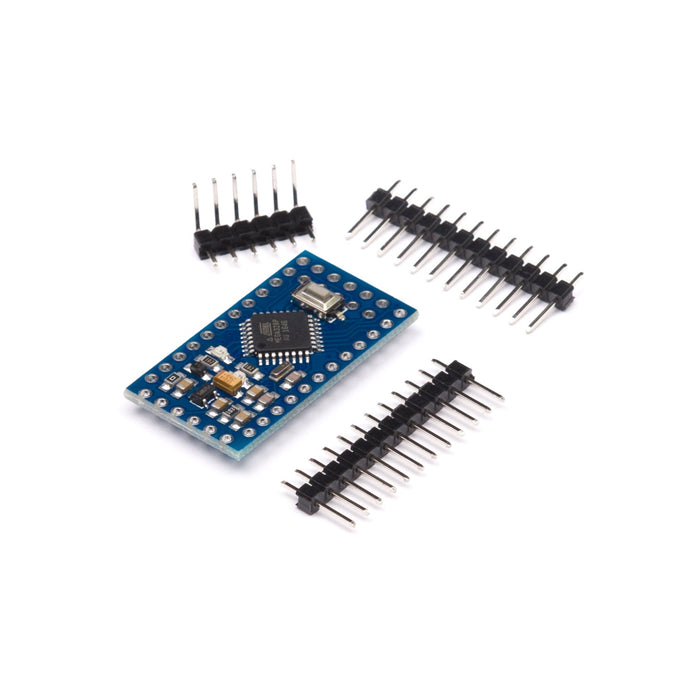

1 x Pro mini microcontroller circuit board
3 x Pins

The Pro Mini board ATMEGA328P 5V/16M appears in the following collections:

SKU LB-LR0509A
