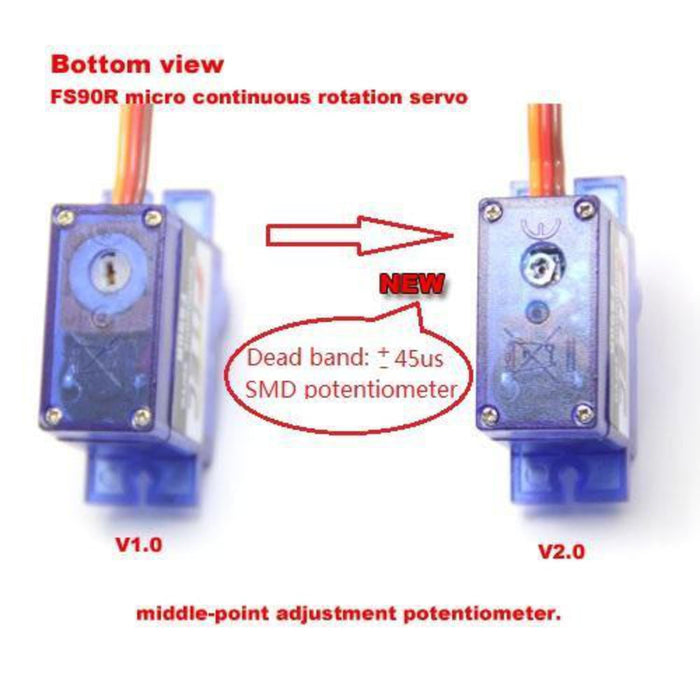

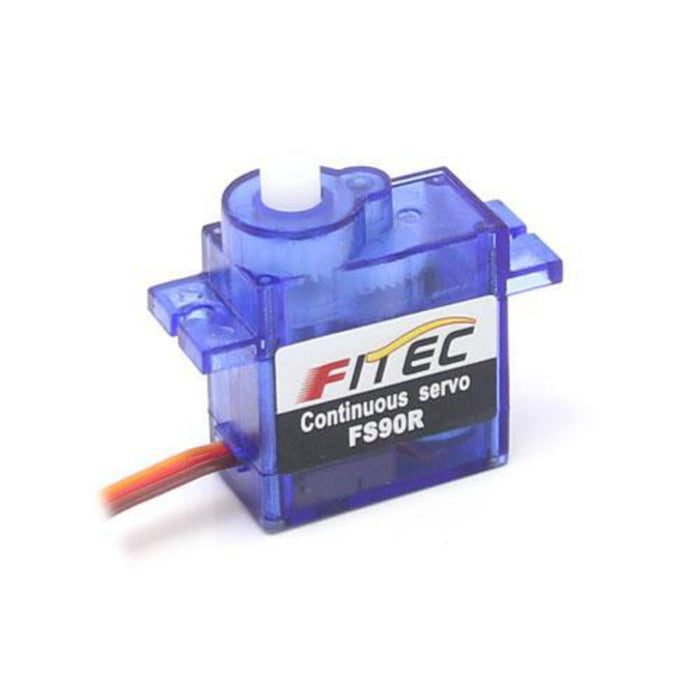

Micro 360 Degree Continuous Rotation Servo FS90R
These continuous rotation servos are ideal when you need very precise degrees of rotation, to build a dial display for example.
| Dimensions: | 23.2×12.5×22 mm |
| Weight: | 9g |
| Operating speed: | 110RPM (4.8V) / 130RPM (6V) |
| Stall torque : | 1.3kg.cm/18.09oz.in (4.8V) / 1.5kg.cm/20.86oz.in (6V) |
| Operating voltage: | 4.8-6V |
| Control system: | Analog |
| Direction: | CCW |
| Operating angle: | 360 degrees |
| Required pulse: | 900-2100us |
| Bearing type: | None |
| Gear type: | Plastic |
| Motor type: | Metal |
| Connecting wire length: | 20cm |
