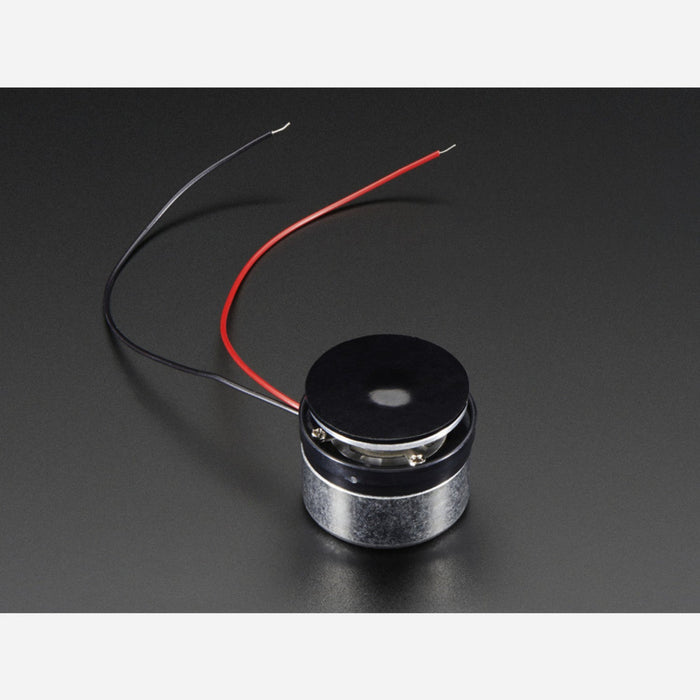

Medium Surface Transducer with Wires - 4 Ohm 3 Watt

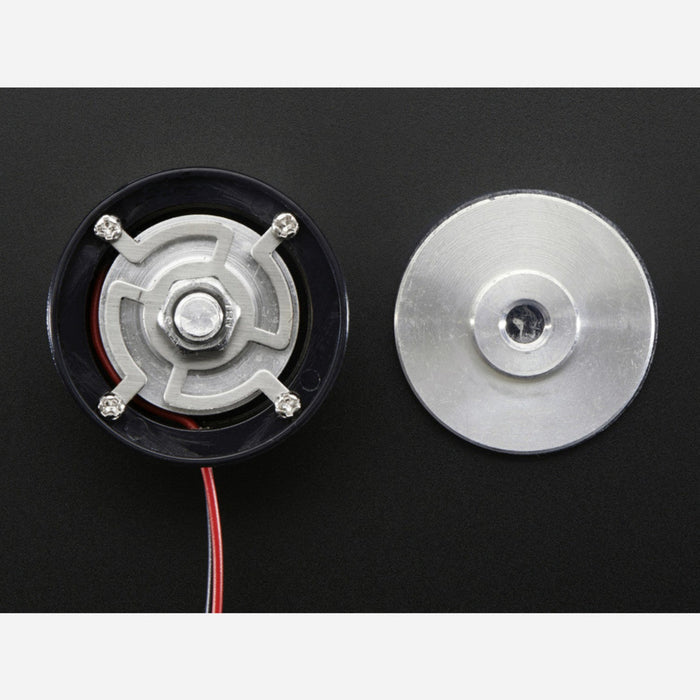

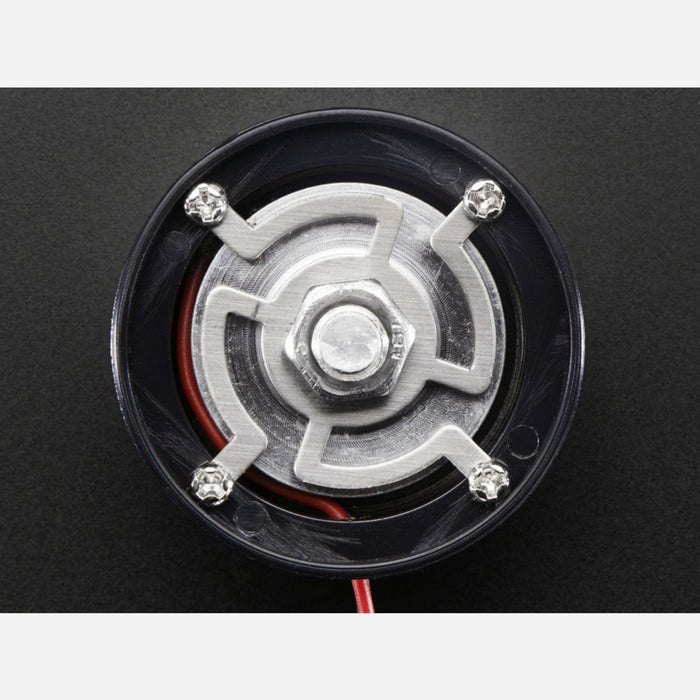

A medium surface transducer that turns any flat surface — tables, walls, panels — into a speaker. Unlike traditional cone speakers, a voice coil wrapped around a metal rod causes vibration that transfers directly to the surface it's pressed against, producing surprisingly clear sound from the surface itself.
The transducer has a heavy body so it can simply be placed top-down on a surface. It operates at 4 Ω impedance and 3 W, making it compatible with common Class D audio amplifier breakouts. Pre-soldered wires are included for easy connection.
Key Features
- Surface-Driven Audio – Turns any flat surface into a speaker
- Pre-Soldered Wires – Ready to connect to an audio amplifier
- Heavy Body – Stays in place on surfaces without mounting
Specifications
- Diameter – 28 mm
- Impedance – 4 Ω
- Power Rating – 3 W
Ideal For
- Interactive audio installations
- Hidden speaker projects
- Directional sound experiments (e.g. mounted in a cup or tube)
- Pairing with Class D audio amplifier breakouts
Package Contents
- 1× Medium surface transducer with pre-soldered wires
The Medium Surface Transducer with Wires - 4 Ohm 3 Watt appears in the following collections:
SKU AF-1785
by Adafruit
