Need more room for your MKR Proto Shield?

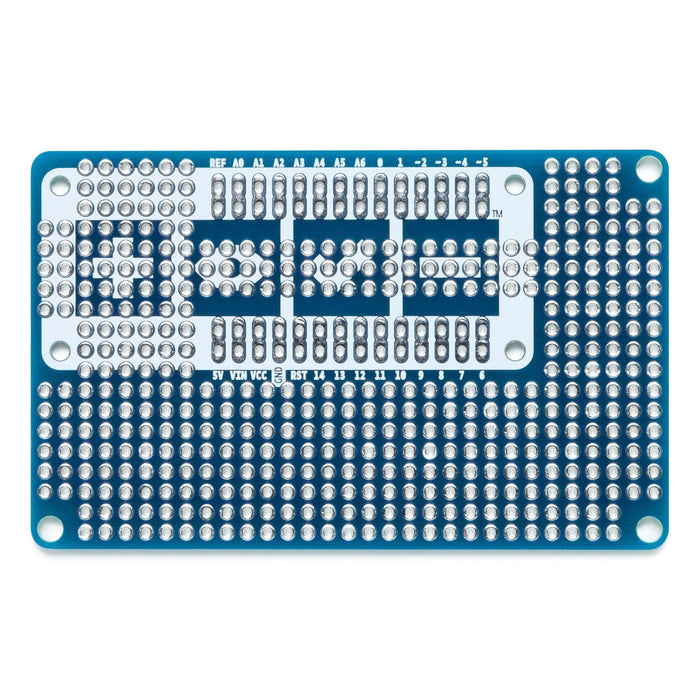

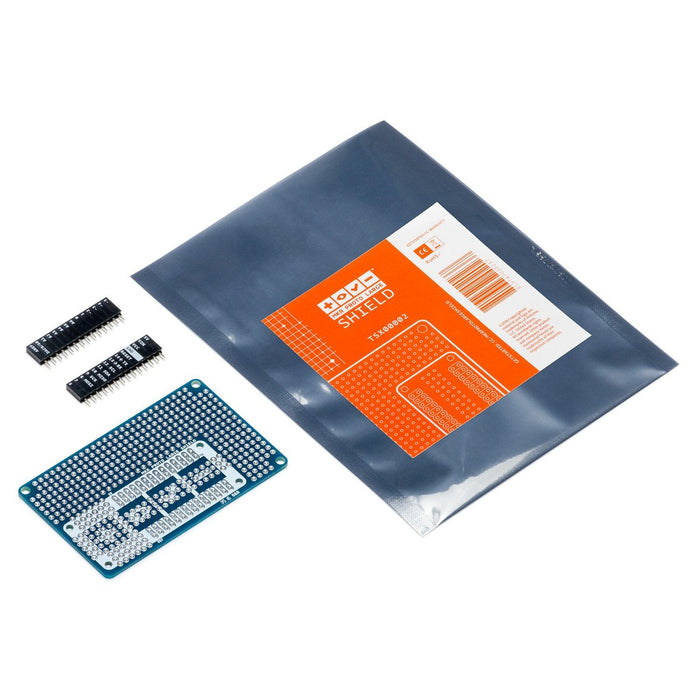

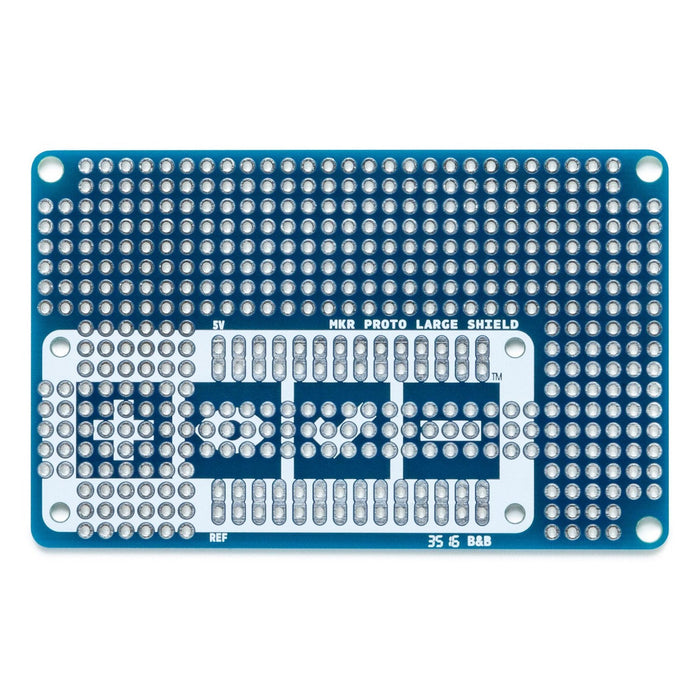

The MKR Proto Large Shield fits onto your MKR board using its provided female/male headers and enables you to fix it wherever you want with the mounting holes. This shield features a larger prototyping area with more than 300 solder points and makes connecting components to your board super simple, thanks to the silk that indicates the MKR board pins location

Tech Specs

Digital I/O Pins 21
PWM Digital I/O Pins depending on the board
Analog Input Pins 7
Analog Output Pins depending on the board
DC Current per I/O Pin depending on the board
DC Current for 3.3V Pin depending on the board
DC Current for 5V Pin depending on the board
Lenght 80 mm
Width 50 mm
Weight 19 gr

The Arduino MKR Proto Large Shield appears in the following collections:

SKU PI-TSX00002
