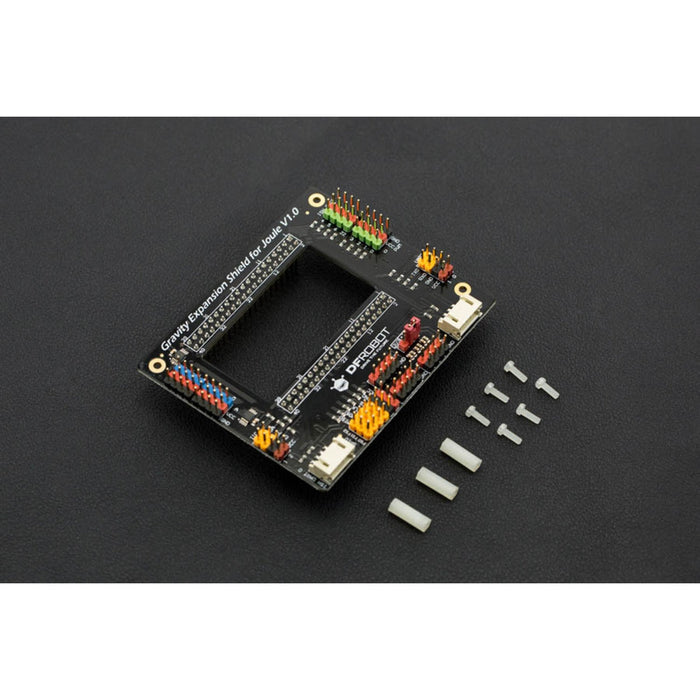

Gravity: Expansion Shield for Intel Joule

Name: Gravity: Expansion Shield for Intel Joule
Brand: Little Bird
SKU: DF-DFR0465
Price: 27.48 AUD
Availability: OutOfStock

Ships from OS via Sydney

Edu Orders Accepted

Prices AUD & include GST

DFRobot's Expansion Shield for Intel Joule is a powerful add-on component to the Intel Joule compute module with its carrier Expansion Board for Intel Joule. Other than what is originally supported by Intel Joule and the expansion board, the expansion shield adds following features especially for robotics, smart gadget, and IoT device development uses.

Analog input support

3.3V / 5V switchable power voltage

Standard extended connectors (DFRobot Gravity Series sensors and modules compatible)

The expansion shield is sized just as big as the expansion board and can be easily mounted on to the expansion board through breakout pins. Its well-designed shape and layout allows you to get all access to the connectors, LED indicators and buttons on the Intel Joule compute module and the expansion board.
SPECIFICATIONS

Digital I/O: 8

PWM: 4

Analog I/O: 8 (using onboard chip via I2C)

SPI: 1 (with 3 chip select pins)

I2C: 3

UART: 3

Power Output: 5V & 3.3V & 1.8V

Gravity I2C: 1

Gravity UART: 1

Module Voltage: 5V or 3.3V

Size: 86mm * 71mm * 22mm

Weight: 30g
