DFRduino FIO (Arduino Compatible)
We have ✅ 2 available of the DF-DFR0069 in our Sydney warehouse.
This DFRduino FIO is Discontinued Now, We recommend other best selling arduino boards as a suitable replacement.

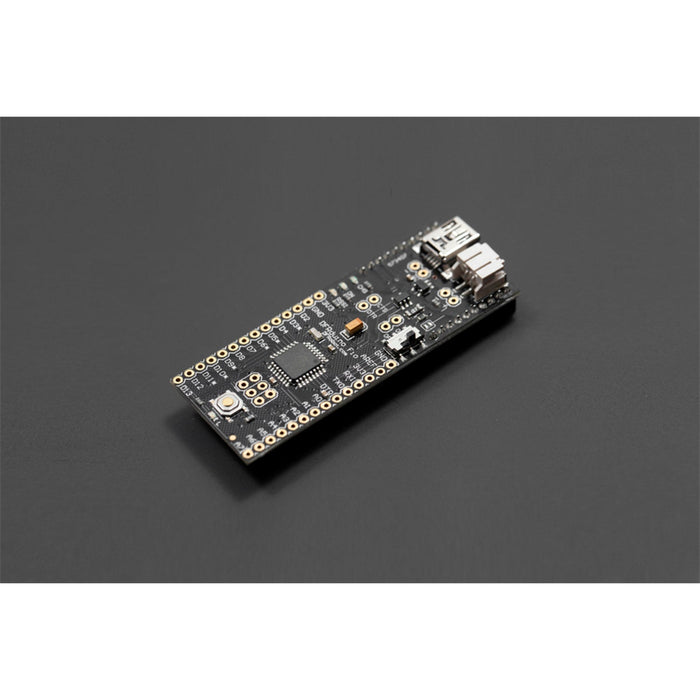

The DFRduino Funnel I/O (Fio) is a board based on the original design of Arduino FIO. It is 100% compatible with original Arduino FIO.
Funnel is a toolkit to sketch your idea physically, and consists of software libraries and hardware. By using Funnel, the user can interface to sensors and/or actuators with various programming languages such as ActionScript 3, Processing, and Ruby.
Arduino Fio is compatible with Funnel. It has connections for a Lithium Polymer battery and includes a charge circuit over USB. An XBee socket is available on the bottom of the board. The Fio has been designed to be wirelessly reprogrammable. Checkout our tutorial on wireless bootloading!
Note: The miniUSB connector is used for battery charging only. To bootload new firmware, you will need an external serial connection over an FTDI Basic Breakout, cable, or other serial connection.
Note: The XBee socket and FTDI connection live on the same TX/RX pins of the ATmega328. You will need to remove the XBee module while reprogramming over serial. We recommend using a wireless bootloader whenever possible to avoid this step.
FEATURES
- ATmega328V running at 8MHz
- Arduino Bootloader
- XBee socket
- Lithium Polymer battery compatible
- MAX1555 LiPo Charger
- Reset button
- On/Off Switch
- Status/Charge/RSSI LEDs
SPECIFICATIONS
- Size: 65x25x13 mm (2.6x1.0x0.5 in)
- Weight: 10 gram
SHIPPING LIST
- DFRduino FIO (Arduino Compatible) x1
