Mini 3-Layer Round Robot Chassis Kit - 2WD with DC Motors
We have ✅ 17 available of the AF-3244 in our Sydney warehouse. An extra 100 units will be available shortly.

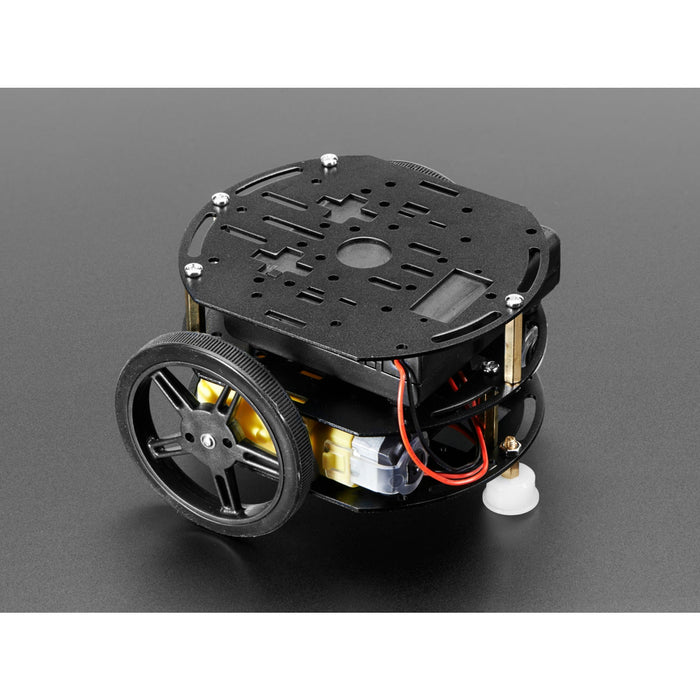

Does this guy look familiar? Of course it does! It's our Black, 3-Layer Round Robot Chassis Kit from AdaBox002!
This kit gives you everything you need to build the shell of a 2-wheel-drive Mobile Platform Robot! You get the metal plates that make up the chassis, two DC drive motors with matching wheels, and a caster ball for balance. You'll fill in the rest with a power supply, microcontroller board, and motor controller. The differential drive (two separately driven wheels) allows for a near zero turning radius while the high-strength aluminum alloy body plus high-quality high-speed motors make it suitable for flat indoor surfaces. It's adorably small like our other round robot, but has an extra layer for more storage and comes in fashionable Adafruit black!
We of course have suggestions to run the motors like our TB6612 breakout, Motor FeatherWing, Motor Shield for Arduino, or Motor HAT for Raspberry Pi. Basically anything that can do two bi-directional brushed DC motors at ~5V and 1.5 Amp peak. To steer the wheels, you'll need a microcontroller to toggle the motor driver like our Feather 32u4 Bluefruit LE, which we used for AdaBox002, and to power the robot we used a 4 x AA battery holder (not included) which fits nicely between layer #2 and #3. But this is all up to you and your imagination!
Note: LiPoly Battery, Feather board, FeatherWings, and Feather accessories are not included! This is just the body of the mobile platform robot. Purchasing AdaBox002 will set you up with nearly everything you need, or you can use whatever microcontroller and motor drivers you already have.
Kit includes:
- 2x Drive Motors (drive with 3-6VDC, 200-400 mA run, 1.5A hard stall)
- 2x Wheels
- 1x Plastic Caster Ball
- Anodized aluminum frames and all mounting hardware for assembly
