4-pin JST PH to JST SH Cable - STEMMA / Grove to QT / Qwiic - 200mm long
We have ✅ 2 available of the AF-4424 in our Sydney warehouse. An extra 100 units will be available shortly.
Are you a maker in the midst of a STEMMA dilemma? This 200mm long 4-wire cable is a fantastic chimera-cable fitted with STEMMA QT / Sparkfun Qwiic JST SH on one end, and Grove / STEMMA JST PH connectors on the other.

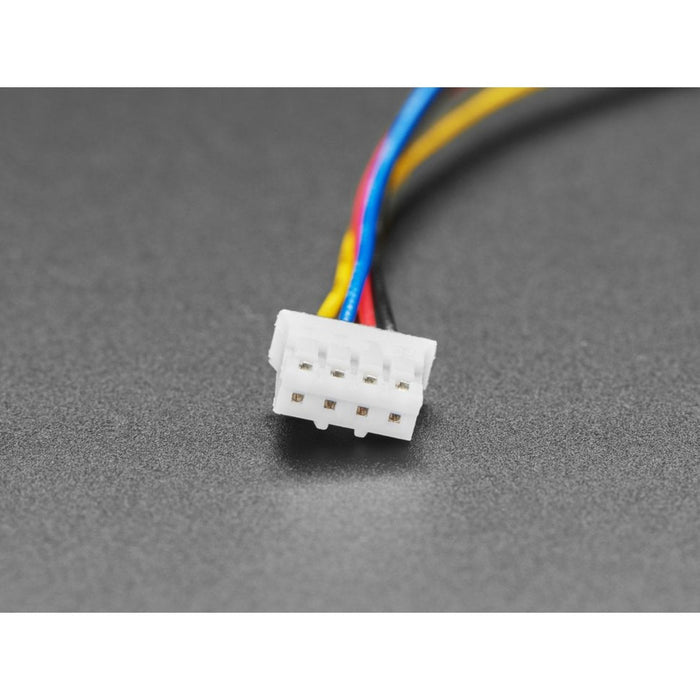

Chunkier JST PH connectors come with 2mm pitch, and JST SH (also known as Qwiic) are 1mm pitch. Both have a nice latching feel, while being easy to insert and remove. Great for use with PyPortal, PyBadge, PyGamer, HalloWings, and anything else we made with a 4-pin JST PH connector for I2C.
This cable can be used with STEMMA or STEMMA QT / Qwiic boards to easily connect sensors and drivers from one board to the other.
Please note you will have to watch for voltages on the power/signal pin when using 3V-only Qwiic sensors with this cable!
- You can use this to connect any Grove I2C sensor (3-5V) to an I2C host with Stemma QT or Qwiic connectors (3V)
- You can use this to connect any STEMMA QT (3-5V) sensor to Grove or STEMMA host (5V) board, and vice versa
- Warning: If you want to connect a Qwiic board (3V power only!) to a Grove or STEMMA host, make sure the power switch is set to 3V
The colors are:
- Black for GND
- Red for V+ - For Qwiic boards, 3.3V. For STEMMA QT, 3 to 5V.
- Blue for SDA
- Yellow for SCL
For more information, visit the JST website for JST PH and JST SH.
Check out all our STEMMA QT offerings here including a wide range of lengths and connectors
