10.2" e-Paper Display (G) – 960x640, Quad-Color, SPI with driver Hat
100 units will be available shortly.
Product Title: 10.2-Inch Multi-Color e-Paper Display with SPI Interface for Raspberry Pi, Arduino, and More
Product Description:

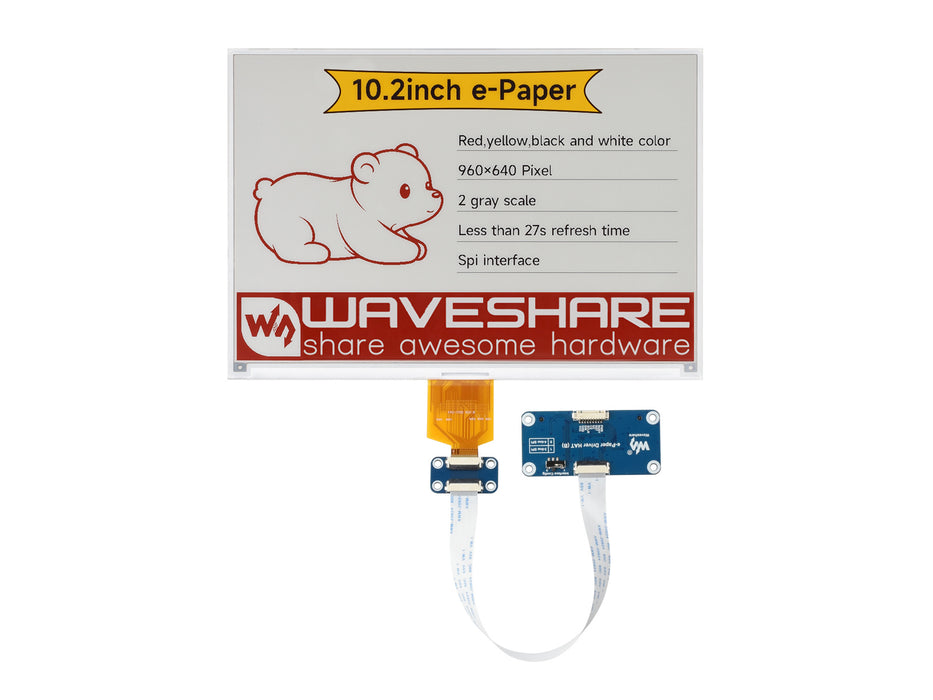

Enhance your projects with the 10.2-Inch e-Paper Display (G) - a versatile, large-format E-Ink screen that provides a crisp 960x640 resolution with four vibrant display colors: red, yellow, black, and white. This eco-friendly display mimics the look and feel of actual paper without the need for a power-consuming backlight.
Key Features:
- Paper-Like Display: Experience reading and viewing content in a paper-like format, offering a comfortable visual experience that's viewable under ambient light conditions.
- High-Resolution: Enjoy clear and detailed images with a resolution of 960x640 pixels, ensuring your content stands out with clarity.
- Multi-Color: Break away from monochrome constraints with a screen capable of displaying four colors – adding versatility and vibrance to your designs.
- Wide Viewing Angle: With a >170° viewing angle, your content will be easy to read from almost any direction.
- Low Power Consumption: This e-Paper display retains the last content shown without electricity, conserving power and reducing operating costs.
- Full Refresh Time: The display refreshes fully in just 27 seconds, ensuring that new content is presented promptly and efficiently.
- Dot Pitch: A close-knit dot pitch of 0.2245 × 0.2245 mm makes for a dense and detailed image.
Technical Specifications:
-
Operating Voltage:
- Raw display: 3.3V
- With driver board: 3.3V/5V
- Interface: 3-wire SPI, 4-wire SPI for easy communication with microcontrollers.
- Grey Scale: Capable of 2 levels of grey.
-
Outline Dimensions:
- Raw display: 224.00 × 157.00 × 1.00 mm
- Driver board (optional): 65.00 × 30.50 mm
- Refresh Power: Less than 100mW required for refreshing content.
- Standby Current: Below 0.01uA - almost negligible power consumption when idle.
Compatibility and Integration:
- SPI Interface: Easily adapts to a spectrum of development boards and microcontrollers with SPI connections, including Raspberry Pi, Jetson Nano, Arduino, and STM32.
- Voltage Translator Onboard: Seamless compatibility with 3.3V and 5V MCUs.
Use Cases:
Ideal for applications such as retail price tags, digital shelf labels, asset tagging, industrial instrumentation, and conference name tags.
Development Resources and Documentation:
Comprehensive online resources including a manual and development tools are provided, supporting an array of platforms for diverse project requirements (available on the Waveshare wiki).
Package Contents:
- 10.2inch e-Paper (G) Display
- (Optional) 10.2inch e-Paper Driver HAT
- Screws Pack
- MX1.25 9PIN Cable
Please Note: The Raspberry Pi and Jetson Nano displayed in the images are not included when purchasing this e-Paper Display. If you require the optional e-Paper Driver HAT, ensure to select it when placing your order.
Elevate your project with this state-of-the-art 10.2-Inch e-Paper Display and bring a modern, power-efficient, and visually stunning component to your designs.
