All Products
Showing 1-11 of 11 products
SparkFun Load Cell Amplifier - HX711
The SparkFun Load Cell Amplifier is a small breakout board for the HX711 IC that allows you to easily read load cells to measure weight. By connecting the amplifier to your microcontroller you will be able to read the changes in the resistance of the load cell, and with some calibration you’ll be...

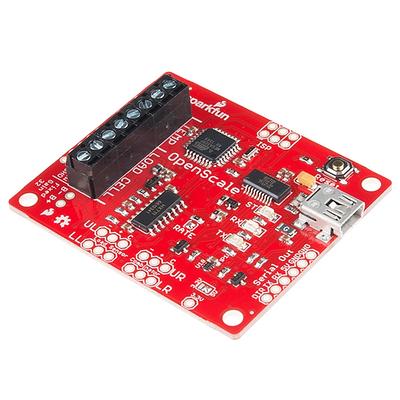

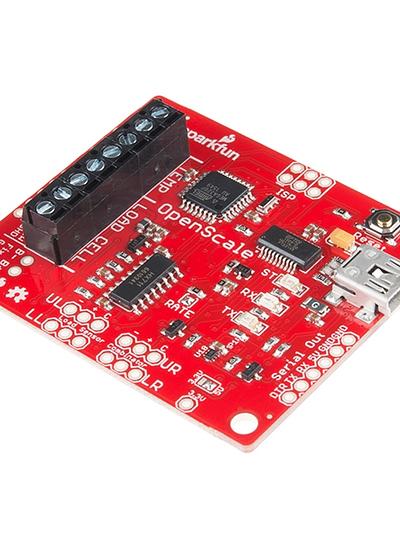

SparkFun OpenScale
The SparkFun OpenScale is an open-source weight measurement board designed for load cells. Simply connect a four-wire or five-wire load cell of any capacity, plug into USB, open a serial terminal at 9,600 bps, and you'll immediately see mass readings. A built-in serial menu lets you configure cal...
Load Cell - 10kg, Straight Bar (TAL220)
A straight bar load cell (strain gauge) that translates up to 10 kg of force into an electrical signal. Built from aluminium alloy with four strain gauges in a Wheatstone bridge configuration, it measures the change in electrical resistance proportional to the applied load. Use it to weigh objec...
Load Sensor - 50kg
A single-point load cell (strain gauge) rated for up to 50 kg. This is the same type of sensor found in digital bathroom scales. It outputs a small analogue voltage proportional to the applied force, which can be read using a load cell amplifier such as the HX711. Specifications Capacity – 50 ...
Load Cell - 5kg, Straight Bar (TAL220B)
A straight bar load cell (strain gauge) that translates up to 5kg of force into an electrical signal. Made from aluminium alloy with four strain gauges in a Wheatstone bridge configuration, it measures electrical resistance changes proportional to the applied load. Use it to measure object weigh...
SparkFun Load Sensor Combinator
The SparkFun Load Sensor Combinator is a bare PCB that combines four load sensors into a standard four-wire Wheatstone bridge configuration. If you open up an electronic bathroom scale, you’ll find a large rat’s nest of wires. The Load Sensor Combinator was created to combine the 12 wires foun...
SparkFun OpenLog Artemis
The SparkFun OpenLog Artemis is an open source data logger that comes preprogrammed to automatically log IMU, GPS, serial data, and various pressure, humidity, and distance sensors. All without writing a single line of code! OpenLog Artemis, or "OLA," automatically detects, configures, and logs Q...
SparkFun DataLogger IoT
The SparkFun DataLogger IoT is a data logger that comes preprogrammed to automatically log GPS and various pressure, humidity, and distance sensors. All without writing a single line of code! The DataLogger automatically detects, configures, and logs Qwiic sensors. It was specifically designed fo...
Load Cell - 50kg, Disc (TAS606)
This single disc load cell (sometimes called a strain gauge) can translate up to 50kg of pressure (force) into an electrical signal. Each load cell is able to measure the electrical resistance that changes in response to, and proportional of, the strain (e.g. pressure or force) applied to the dis...
Load Cell - 200kg, Disc (TAS606)
This disc load cell (sometimes called a strain gauge) can translate up to a whopping 200kg of pressure (force) into an electrical signal. Each load cell is able to measure the electrical resistance that changes in response to, and proportional of, the strain (e.g. pressure or force) applied to th...
Load Cell - 200kg, S-Type (TAS501)
This S-Type load cell (sometimes called a strain gauge) can translate up to 200kg of pressure (force) into an electrical signal. Each load cell is able to measure the electrical resistance that changes in response and proportion to the strain (e.g., pressure or force) applied to the form. With th...
