Load Cell - 200kg, S-Type (TAS501)
This S-Type load cell (sometimes called a strain gauge) can translate up to 200kg of pressure (force) into an electrical signal. Each load cell is able to me...
Get notified when back in stock

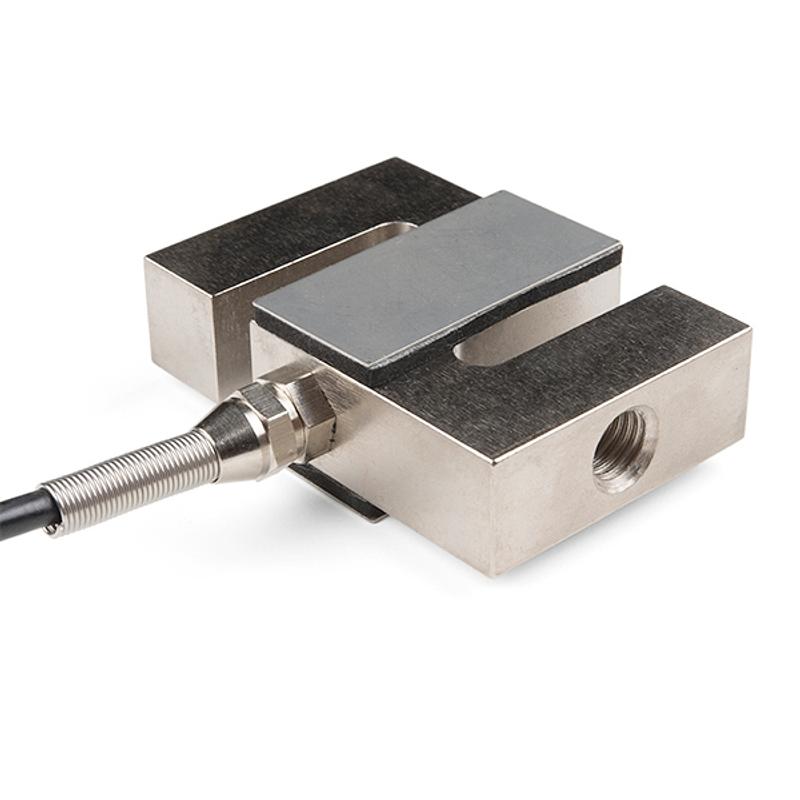

This S-Type load cell (sometimes called a strain gauge) can translate up to 200kg of pressure (force) into an electrical signal. Each load cell is able to measure the electrical resistance that changes in response and proportion to the strain (e.g., pressure or force) applied to the form. With this gauge you will be able to tell just how heavy an object is, if an object’s weight changes over time, or if you simply need to sense the presence of an object by measuring strain or load applied to a surface.

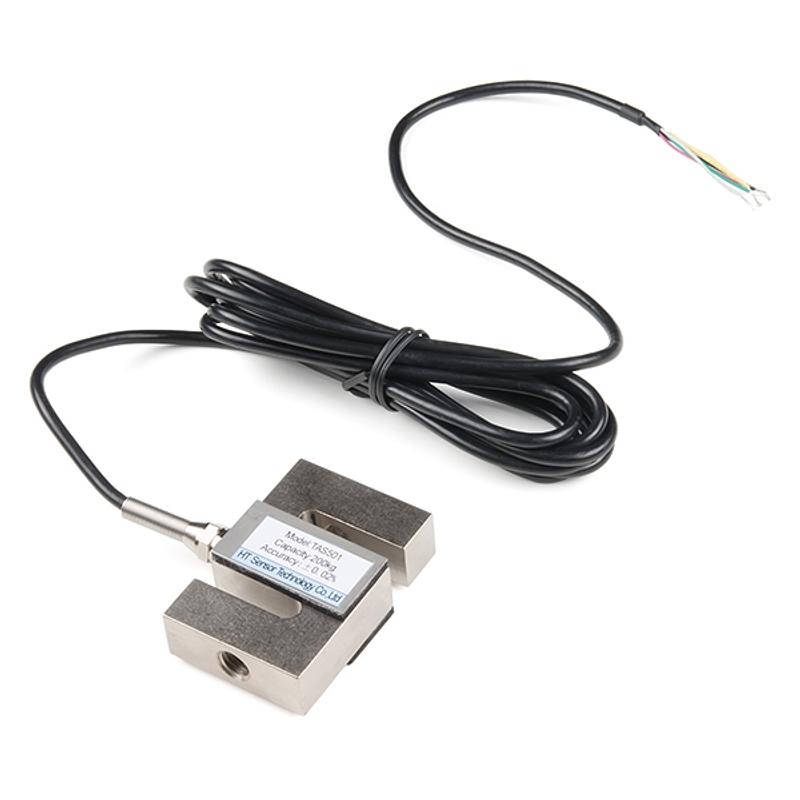

Each straight bar load cell is made from an alloy steel and is capable of reading a capacity up to 200kg. These load cells have four strain gauges that are hooked up in a Wheatstone bridge formation. The color code on the wiring is as follows: red = E+, green = O+, black = E-, and white = O-. Additionally, these load cells offer an IP66 protection rating and feature two M4 and two M5 sized through-holes for mounting purposes.
Get Started with the Load Cell Guide
Dimensions: 51mm x 19mm x 76mm, 3m Wire
Documents:
Jargon buster
Plain-language definitions for the technical terms used above.
- Strain gauge
- A strain gauge is a sensor element whose electrical resistance changes when it is stretched or compressed. It is commonly used to measure force, weight, pressure or bending, and because its resistance change is small it usually needs precise differential measurement electronics such as a high-resolution ADC.
