Stepper Motor - 29 oz.in (200 steps/rev, Threaded Shaft)

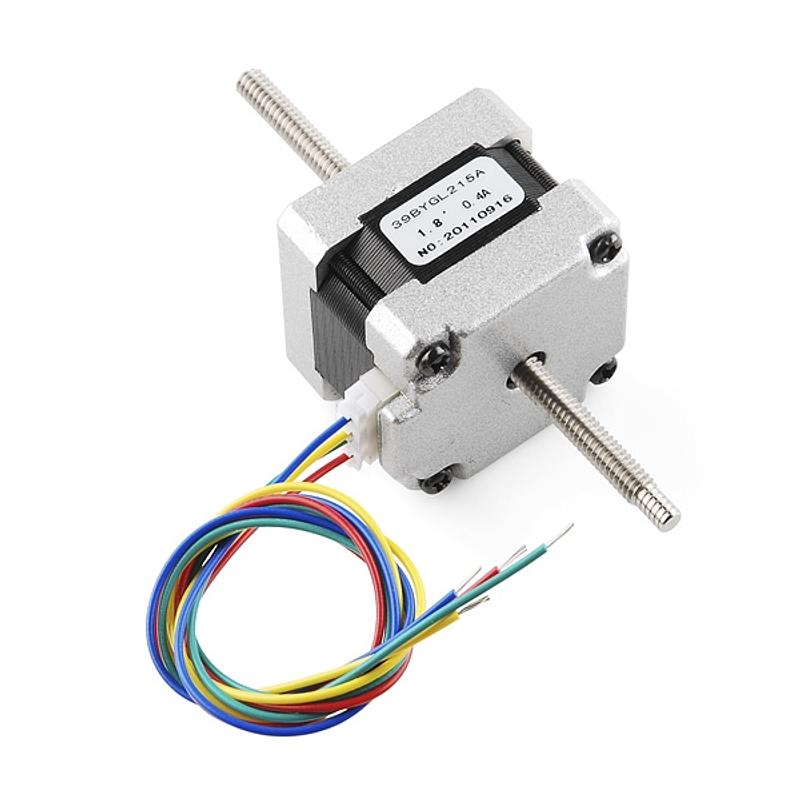

These steppers have a threaded shaft, which allows them to be used as a linear actuator. As the motor runs, it moves along the shaft at a specific rate of 1c...
These steppers have a threaded shaft, which allows them to be used as a linear actuator. As the motor runs, it moves along the shaft at a specific rate of 1cm per 5 full rotations. These are a good choice for linear motion where precision and repeatability are important.
Note: It looks like the datasheet for this stepper may not be accurate. When connecting this motor to a bi-polar driver you’ll want to wire it according to the wiring diagram in the documents below.
Features:
- Step Distance: 0.01mm
- 2-Phase
- Rated Voltage: 12V
- Rated Current: 0.4A/Phase

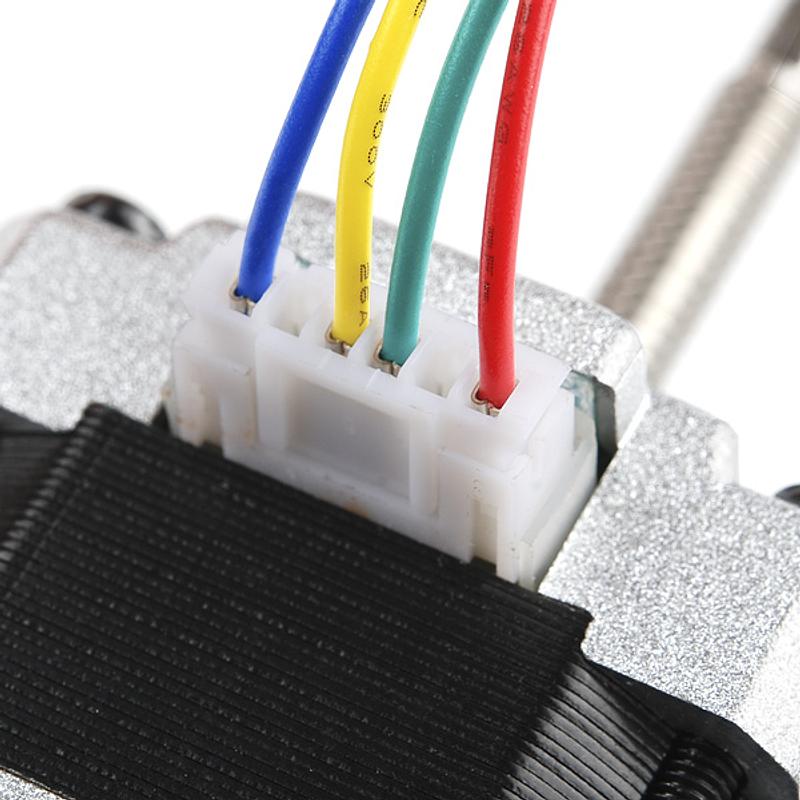

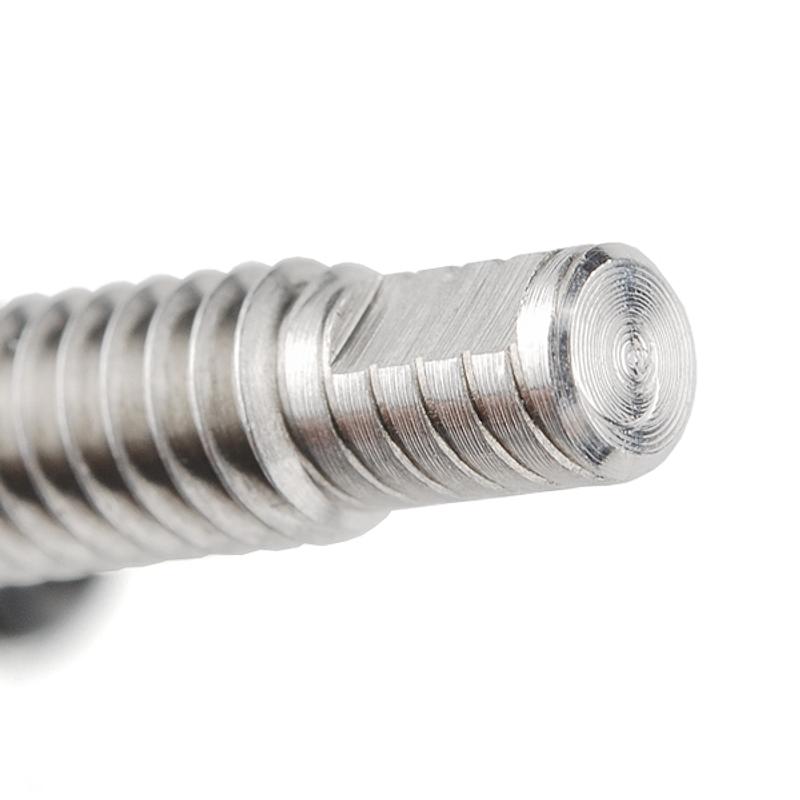

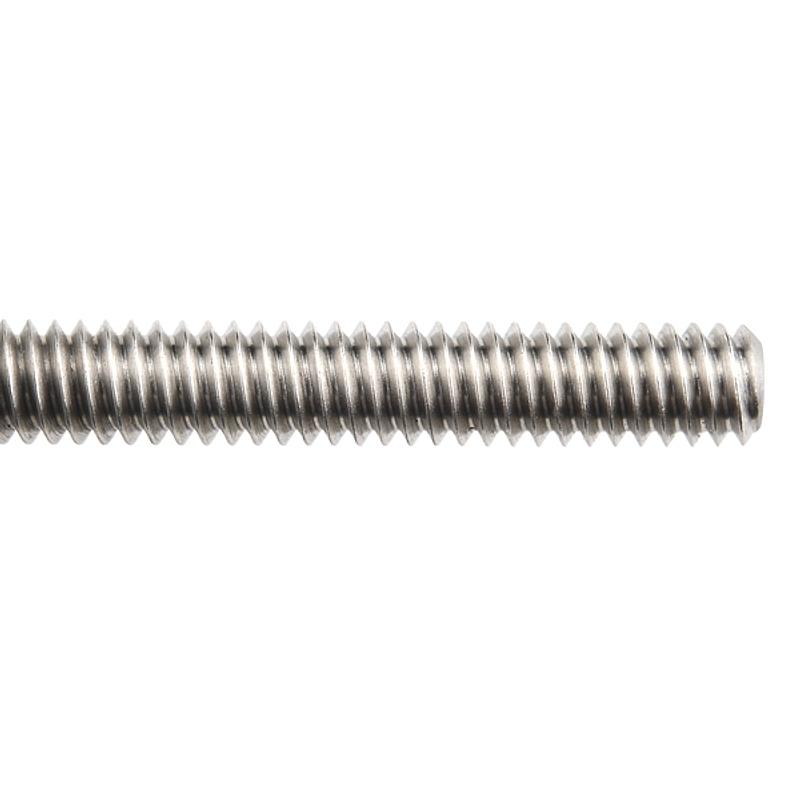

- 100mm Long Threaded Shaft (keyed on one end)
- Holding Torque: 21 N.cm

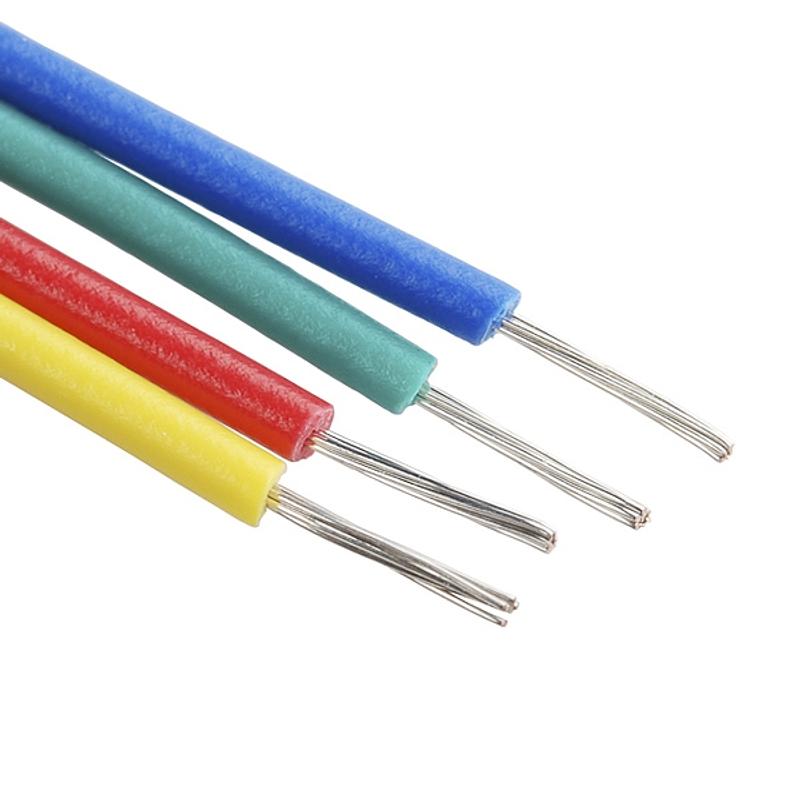

- 6-Pin Wiring Harness Included
- NEMA 15
Documents:
Jargon buster
Plain-language definitions for the technical terms used above.
- Torque
- A twisting force that causes something to rotate, usually measured in newton-metres or kilogram-centimetres. It matters when choosing motors, servos, gears, and tools because higher torque is needed to lift heavier loads, turn larger wheels, or move mechanisms without stalling.
