SparkFun Full-Bridge Motor Driver Breakout - L298N
This is a breakout board for the L298N full-bridge dual motor driver; which comes in a staggered, Multiwatt package. All pins of the L298N are broken ou...
Get notified when back in stock

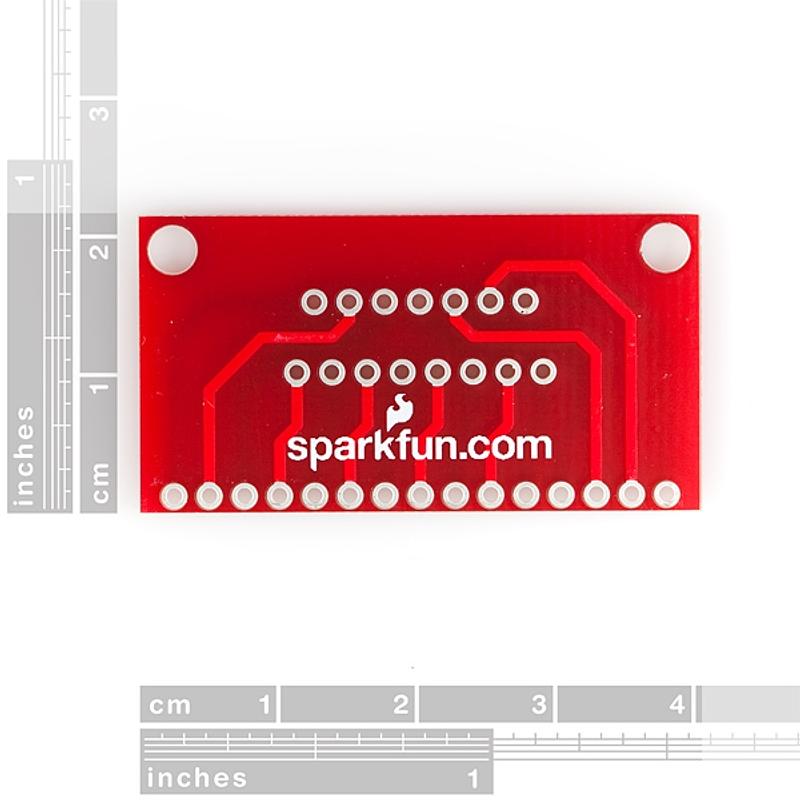

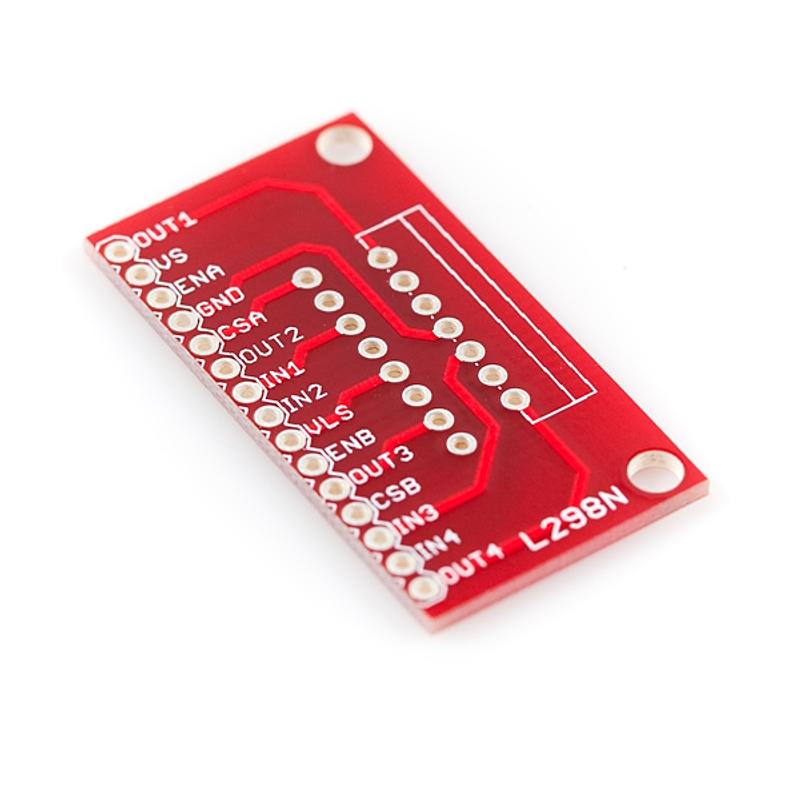

This is a breakout board for the L298N full-bridge dual motor driver; which comes in a staggered, Multiwatt package.

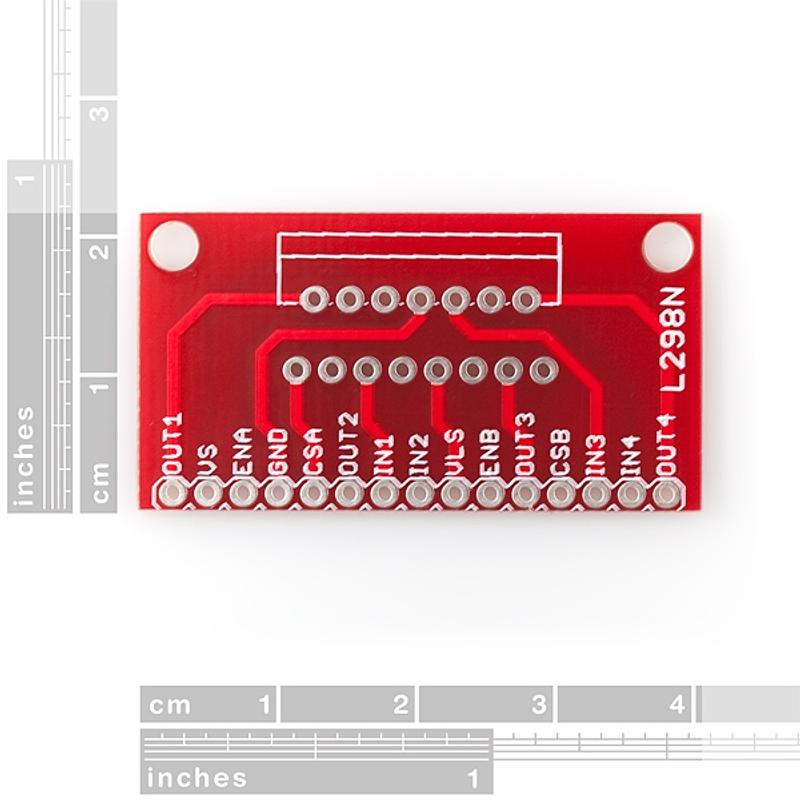

All pins of the L298N are broken out to a 15-pin 0.1" pitch header. Two mounting holes are also provided.
Dimensions:
- Board: 1.6x0.85 inches
Documents:
- Schematic
- Eagle Files
- Datasheet (L298N)
- GitHub (Design Files)
Jargon buster
Plain-language definitions for the technical terms used above.
- breakout
- A breakout board carries a small or fine-pitched component and brings its connections out to standard, breadboard- and header-friendly pins. Describing a part as a breakout means it can be wired into a project without soldering directly to the component's tiny contacts.
- motor driver
- An electronic circuit that lets a low-power controller switch and control a motor that needs more current than the controller pins can safely provide. Checking motor driver support matters because pumps and motors usually cannot be connected directly to a microcontroller output.
