Servo - Generic High Torque (Standard Size) [SF-ROB-11965]

Servo - Generic High Torque (Standard Size)

Servo - Generic High Torque (Standard Size) [SF-ROB-11965]

Price: $21.87
Fastest delivery: Thursday, 7th July
Order before 2pm Monday, 27th June
Available with a lead time
(126 units can dispatch between Jul 06 to Jul 11)
Need more than 0 units?
🔒 Secure transaction
Ships from: Little Bird (SYD) → You
Ships from: Supplier → Little Bird (SYD) → You

Product Image Gallery

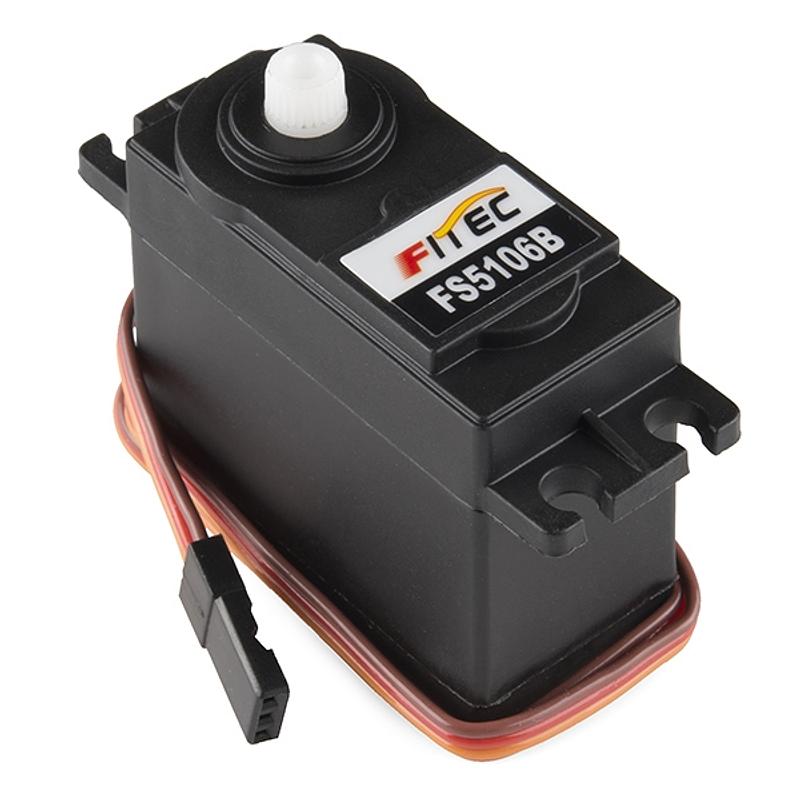

Photo of Servo - Generic High Torque (Standard Size) Photo of Servo - Generic High Torque (Standard Size) Photo of Servo - Generic High Torque (Standard Size)

Description

Here is a powerful, low-cost, reliable servo for all your mechatronic needs. This servo is able to take in 6 volts and deliver 83.47 oz-in. of maximum torque at 0.16 sec/60°

This is a tough little servo with a standard 3 pin power and control cable, and all hardware listed below.

Features:

  • Voltage: 4.8-6.0 Volts
  • Torque: 69.56/83.47 oz-in. (4.8/6.0V)
  • Speed: 0.18/0.16 sec/60° (4.8/6.0V)
  • Direction: Counterclockwise 1000-2000usec
  • Rotation: 180°
  • Dual Ball Bearing
  • Nylon Gears
  • 25T Spline (Futaba 3F)

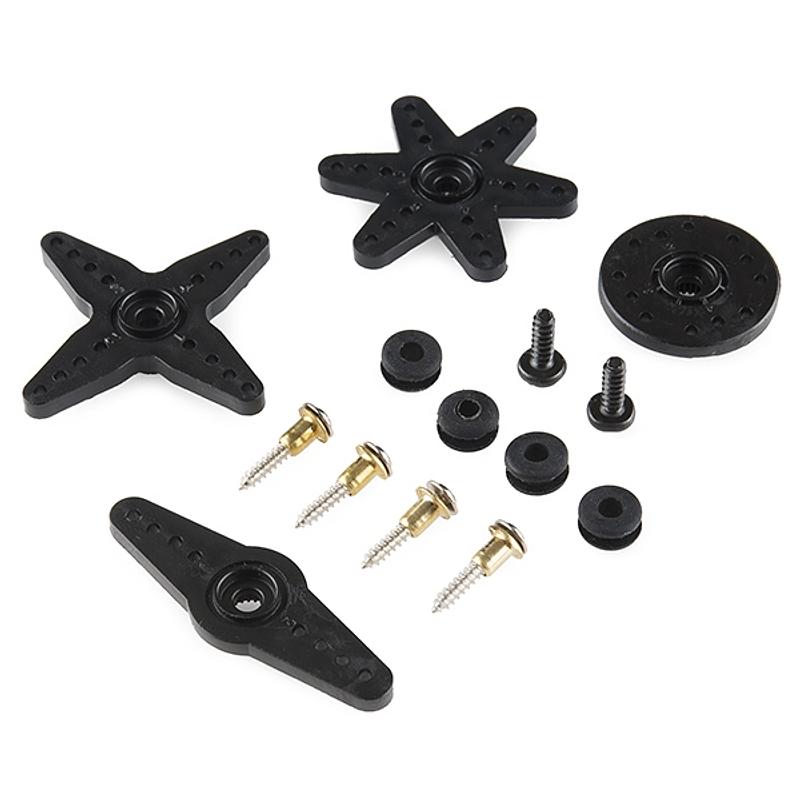

Includes:

  • 1x FS5106B High Torque Servo
  • 1x Double Arm Horn
  • 1x Circle Horn
  • 1x Four Point Horn
  • 1x Six Point Horn
  • 2x 3x10mm Phillips Screw
  • 4x 2x13mm Mounting Phillips Screw
  • 4x Rubber Grommets
  • 4x Brass Eyelets

Dimensions:

  • 40.8 x 20.1 x 38mm
  • Wire Length: 300mm
  • Weight: 40g

Documents:

Replaces:ROB-9064
