Raspberry Pi GPIO Tall Header - 2x20
All Products
Headers & Connectors
New Arrivals
SparkFun
Raspberry Pi
Brands and Manufacturers
Prototyping
Raspberry Pi Accessories
Components
Prototyping & Wiring
$7.10
|
In stock
This 2x20 “tall” header has the same number and spacing of pins as a Raspberry Pi and provides your board with the ability to extend the heights of your G...
Get notified when back in stock
Estimated Delivery
Arrives
Order within 2h 44m for same-day dispatch
Disclaimer
Secure checkout

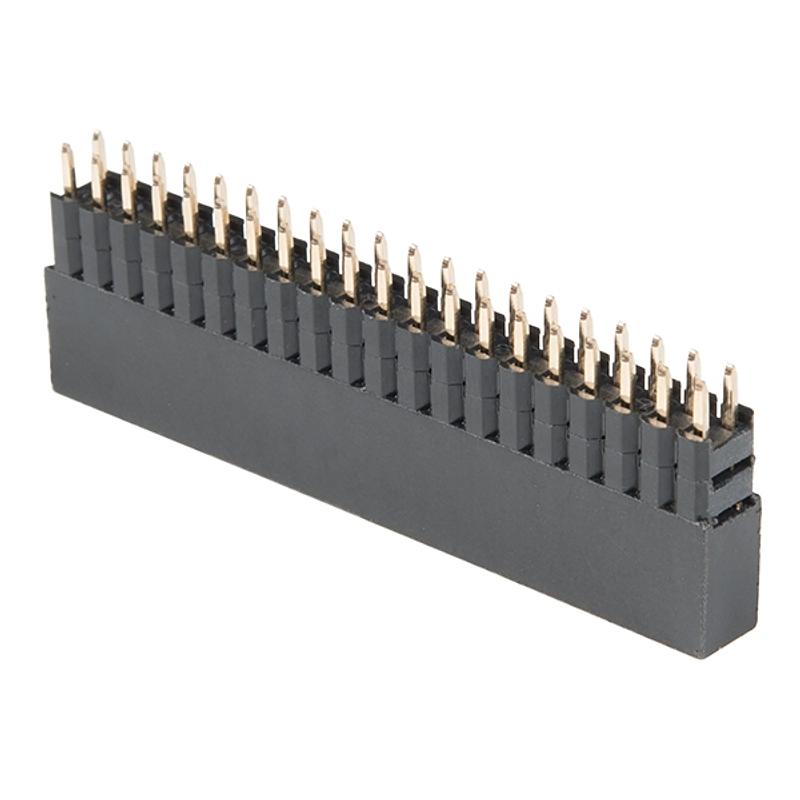

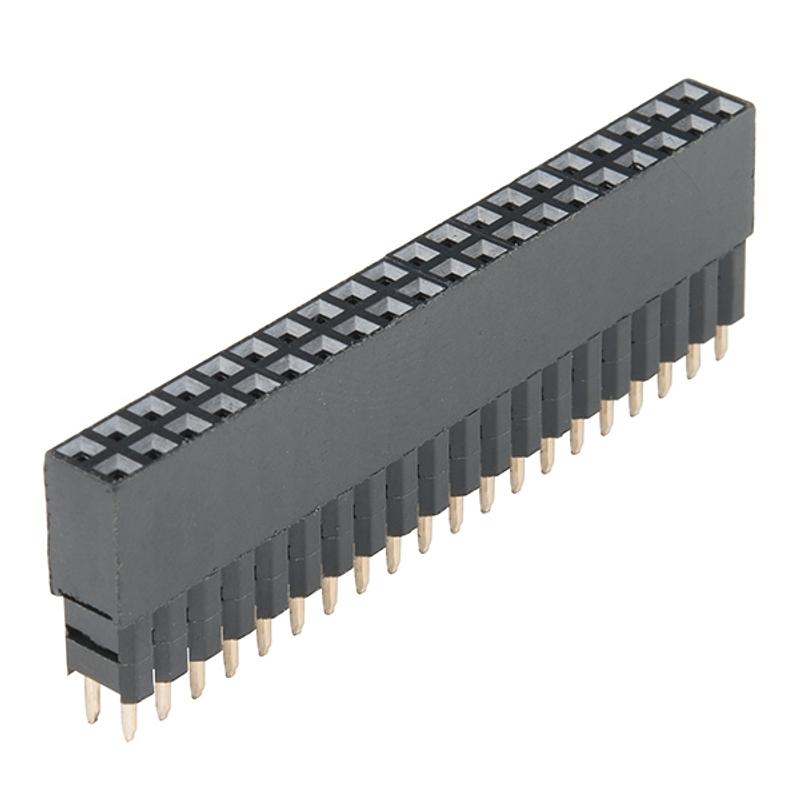

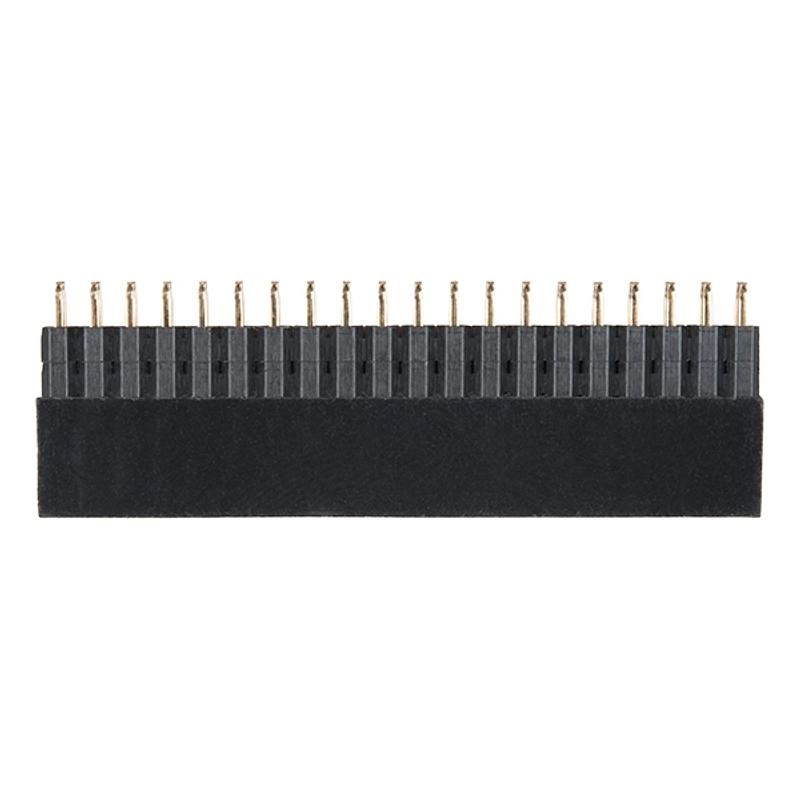

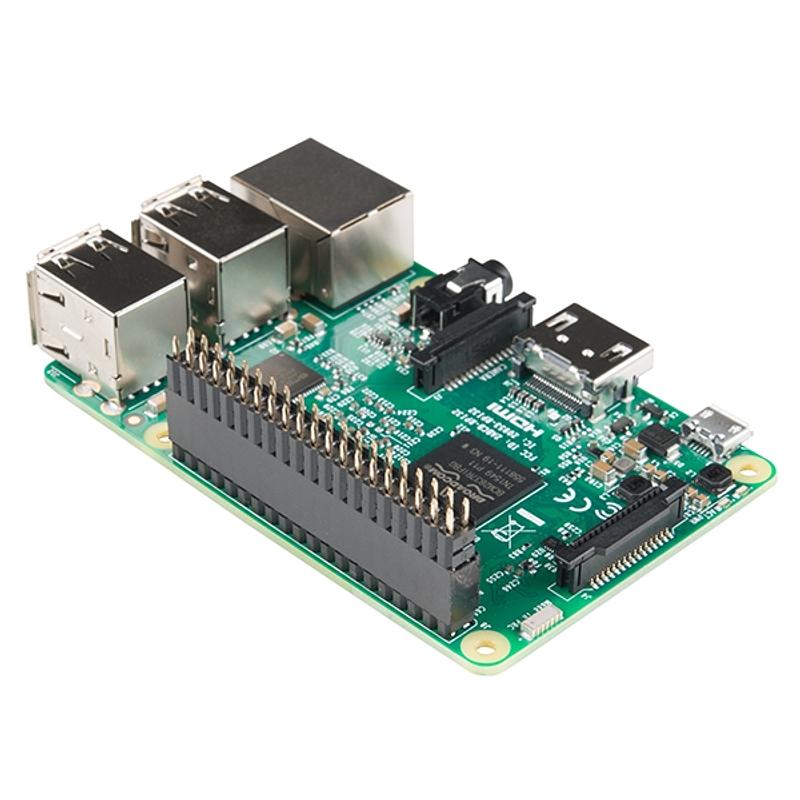

This 2x20 “tall” header has the same number and spacing of pins as a Raspberry Pi and provides your board with the ability to extend the heights of your GPIO to accommodate for enclosures or other parts that can encapsulate your Pi. This through-hole header has 40 0.1"-spaced pins and can just be snapped into place with minimal soldering to an applicable “shield.”
Documents:
Jargon buster
Plain-language definitions for the technical terms used above.
- GPIO
- General-purpose input/output pins are microcontroller pins you can set in software to read signals, switch devices on and off, or connect to peripherals. The number of GPIO pins matters because it limits how many buttons, LEDs, sensors, and other parts you can wire directly to the board.
- Shield
- An add-on board that plugs into a main controller board to give it extra features such as sensing, motor control or communication. Knowing a product supports shields helps you judge whether it can connect neatly into an existing maker-board setup.
- through-hole
- A mounting style where the component leads pass through holes in a circuit board and are soldered on the other side. Through-hole parts are often easier to handle and solder by hand, which is useful for classroom and hobby projects.
