DFRobot
Raspberry Pi Dual Fan Heatsink Kit for 3B/3B+/4B
· MPN: FIT0817
Keep your Raspberry Pi running cooler with this compact aluminium heatsink and fan kit for Raspberry Pi 3B, 3B+ and 4B boards. The main heatsink uses a slott...

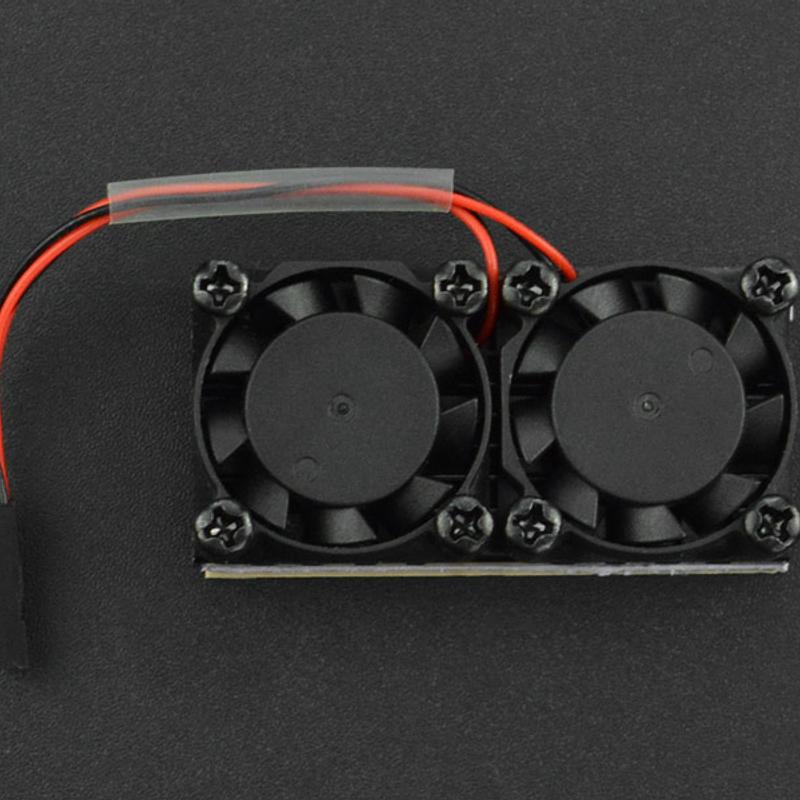

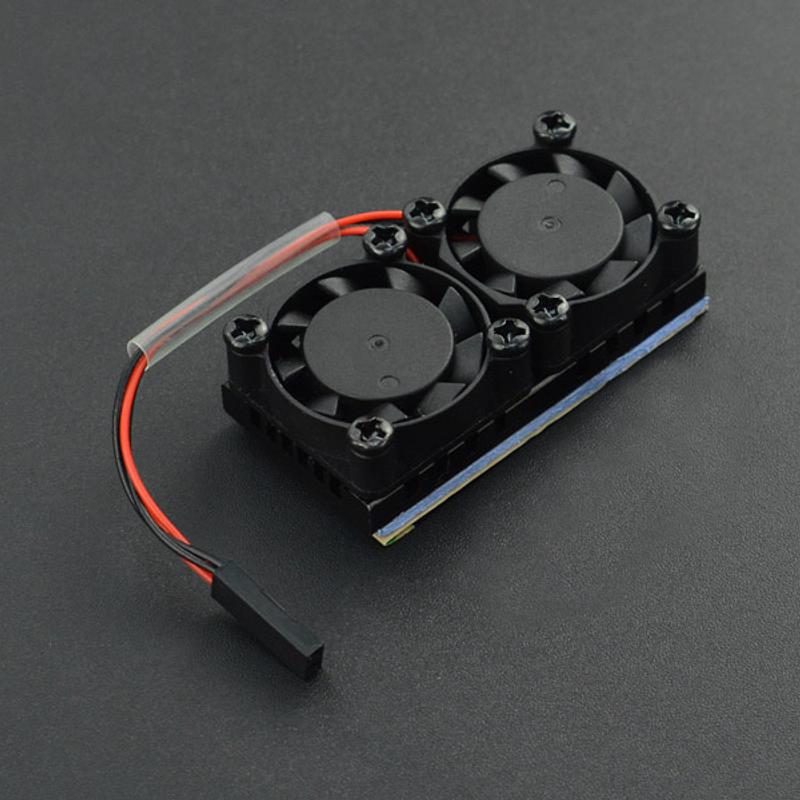

Keep your Raspberry Pi running cooler with this compact aluminium heatsink and fan kit for Raspberry Pi 3B, 3B+ and 4B boards. The main heatsink uses a slotted surface to help dissipate heat from the CPU.
Two 7 mm 9-blade cooling fans are mounted on the large aluminium heatsink for active cooling. The heatsink includes an adhesive backing, so installation is as simple as cleaning the CPU surface, peeling the film and sticking it in place.
The kit includes 1 large heatsink with fan and 2 small heatsinks, giving you a straightforward cooling upgrade for compatible Raspberry Pi boards.
Specifications:
- Working Voltage: 5V
- Power: 1.5W
- Speed: 7500rpm
- Weight: 12g
- Applicable to: 3B/3B+/4B
- Large Heat Sink: 50*25*13mm / 1.97*0.98*0.51 inch
- Small Heat Sink: 9*9*5mm / 0.35*0.35*0.2 inch
