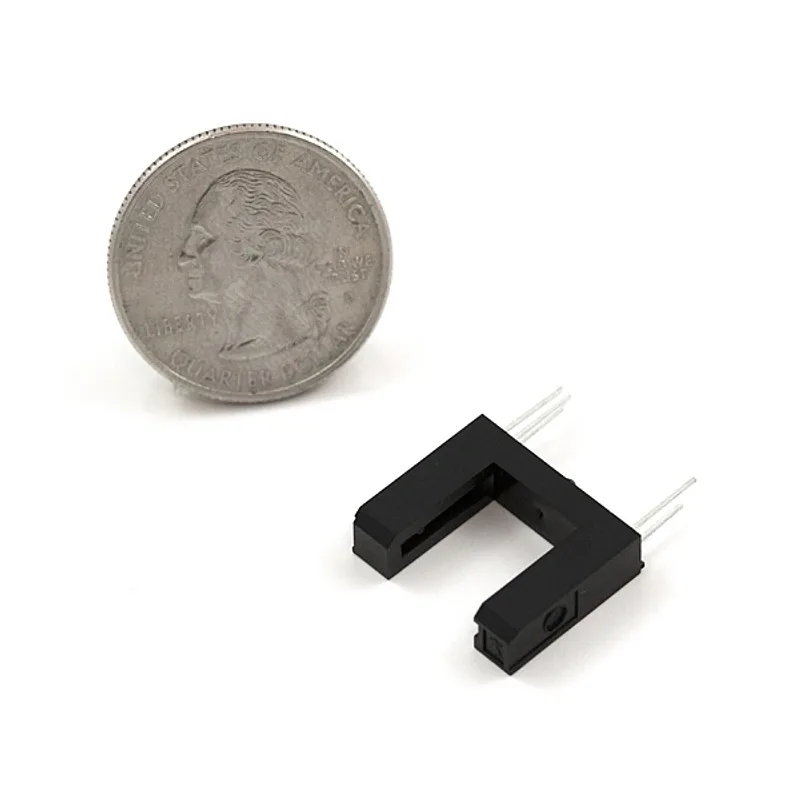

Photo Interrupter - GP1A57HRJ00F
The GP1A57HRJ00F is a slotted optical sensor (photo interrupter) with an infrared emitter on one upright and a shielded infrared detector on the other. When ...
The GP1A57HRJ00F is a slotted optical sensor (photo interrupter) with an infrared emitter on one upright and a shielded infrared detector on the other. When an object passes through the 10 mm gap between the uprights, it breaks the IR beam and the detector registers the interruption.
Key Features
- 10 mm Gap Width – Slot for object detection
- Infrared Emitter & Detector – Shielded phototransistor receiver
- Simple Digital Output – Beam broken or unbroken
Ideal For
- Optical limit switches and end stops
- Encoder wheels and RPM counting
- Object detection and pellet dispensing
- General-purpose beam-break sensing
Resources
Jargon buster
Plain-language definitions for the technical terms used above.
- encoder
- A device attached to a motor or shaft that reports movement, such as rotation steps or position. In a pump system, an encoder can help measure or control how much the motor has turned, which affects how repeatable the watering amount can be.
- phototransistor
- A light-sensitive transistor that changes its electrical output when light hits it. Compared with a modulated IR receiver, a simple phototransistor can be more affected by ambient light, so it may need extra filtering or careful setup.
