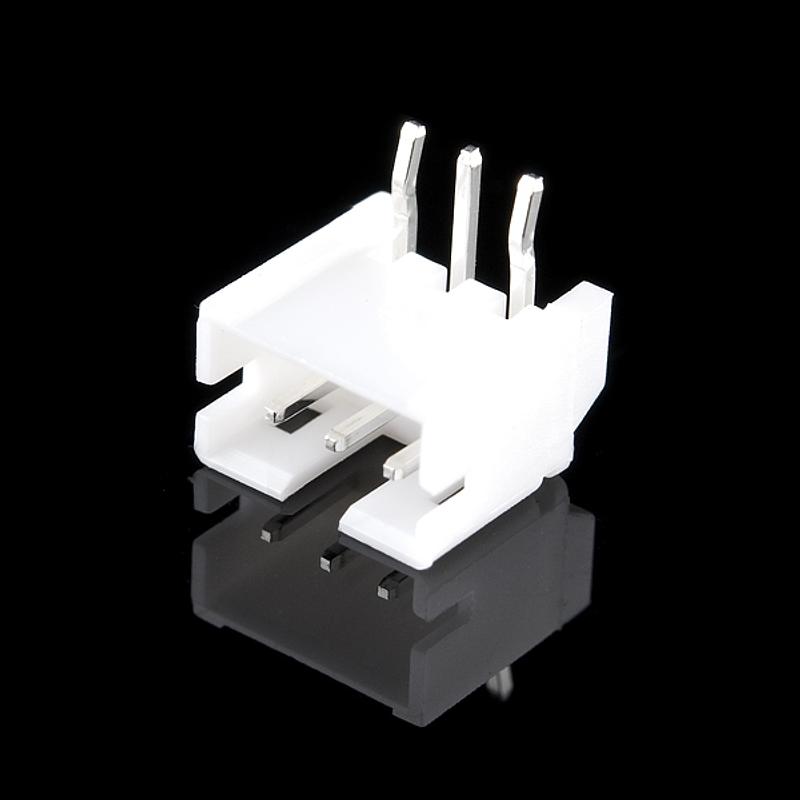

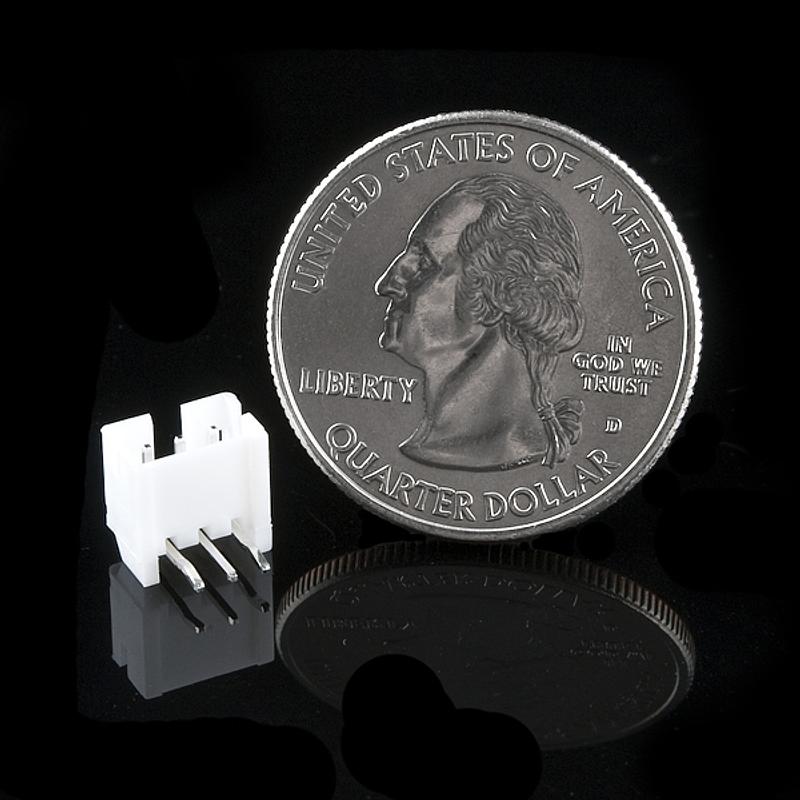

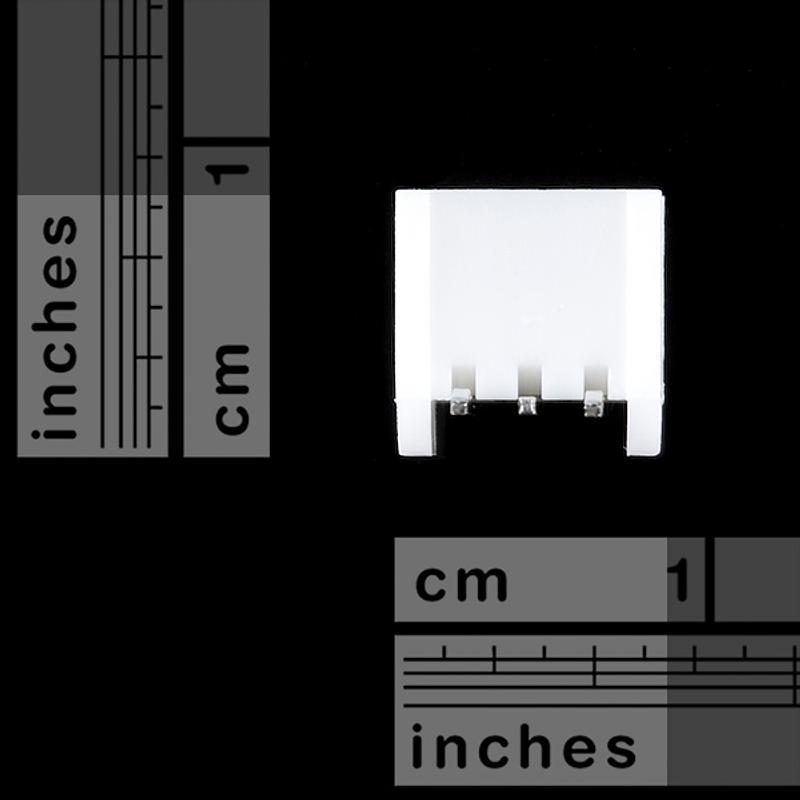

JST Right Angle Connector - Through-Hole 3-Pin
1043 units available with a short lead time.
A 3-pin right-angle JST PH series through-hole connector with 2mm pin spacing. These compact connectors provide a solid locking connection and are rated for moderate current, making them a reliable choice for PCB-mounted sensor and peripheral connections.
Commonly used to interface with Sharp infrared proximity sensors, serial LCDs, and other devices that use 3-pin JST PH cables. The right-angle orientation keeps cables running parallel to the PCB for a cleaner layout.
Key Features
- JST PH Series – 2mm pin pitch, industry-standard connector
- 3-Pin – Suitable for signal, power, and ground connections
- Right-Angle – Horizontal cable exit for low-profile PCB layouts
- Through-Hole – Solders directly to PCB pads
- Locking Connection – Secure snap-fit with matching JST PH cables
Ideal For
- Sharp IR proximity sensor connections
- Serial LCD and display interfaces
- Custom PCB designs needing compact connectors
- Sensor and peripheral breakout boards
Package Contents
- 1× JST PH 3-Pin Right-Angle Through-Hole Connector
The JST Right Angle Connector - Through-Hole 3-Pin appears in the following collections:
SKU SF-PRT-09750
by SparkFun
