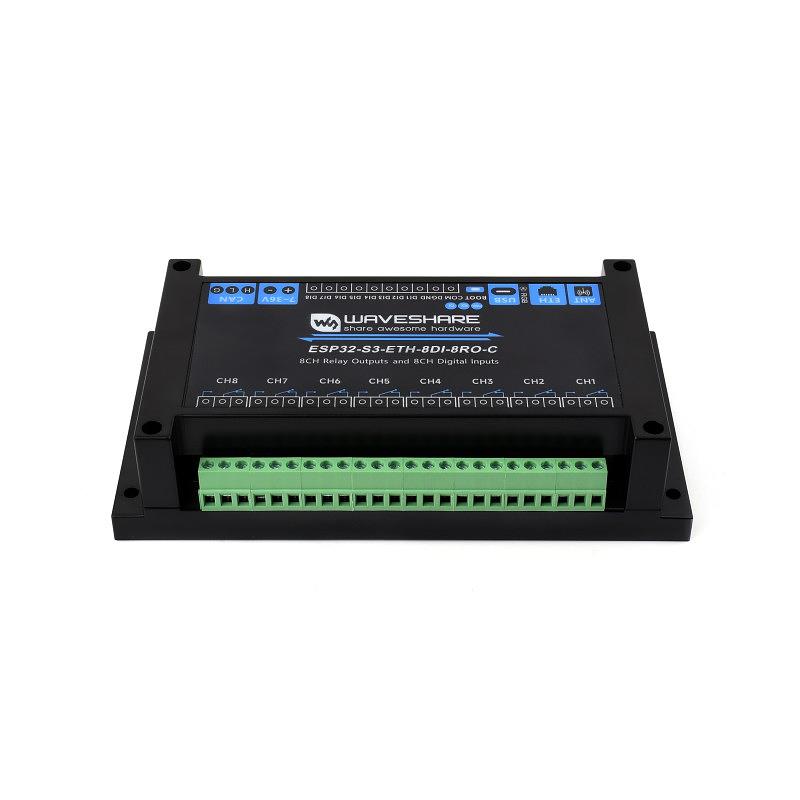

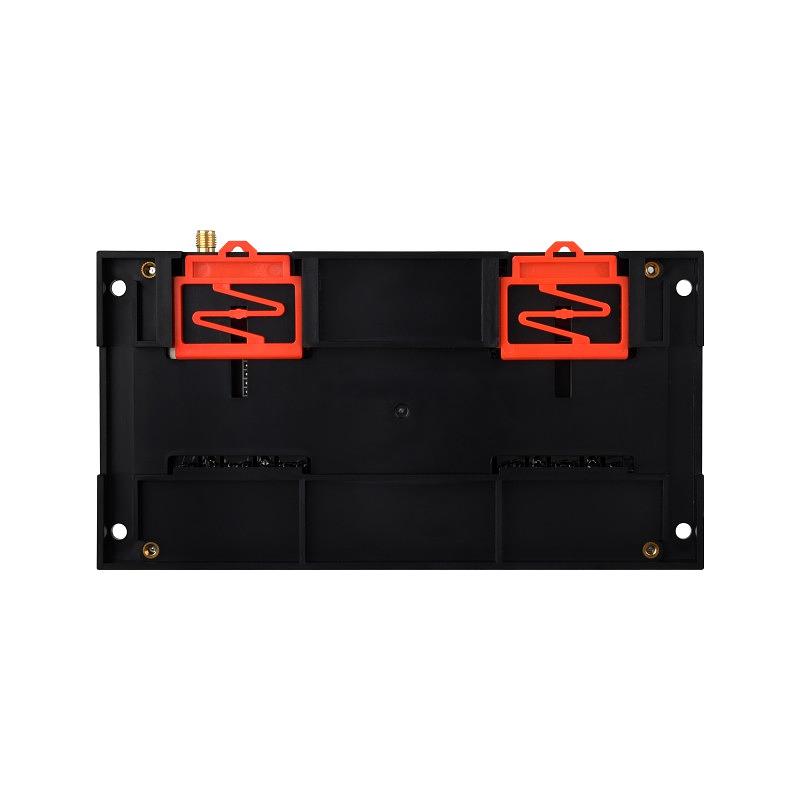

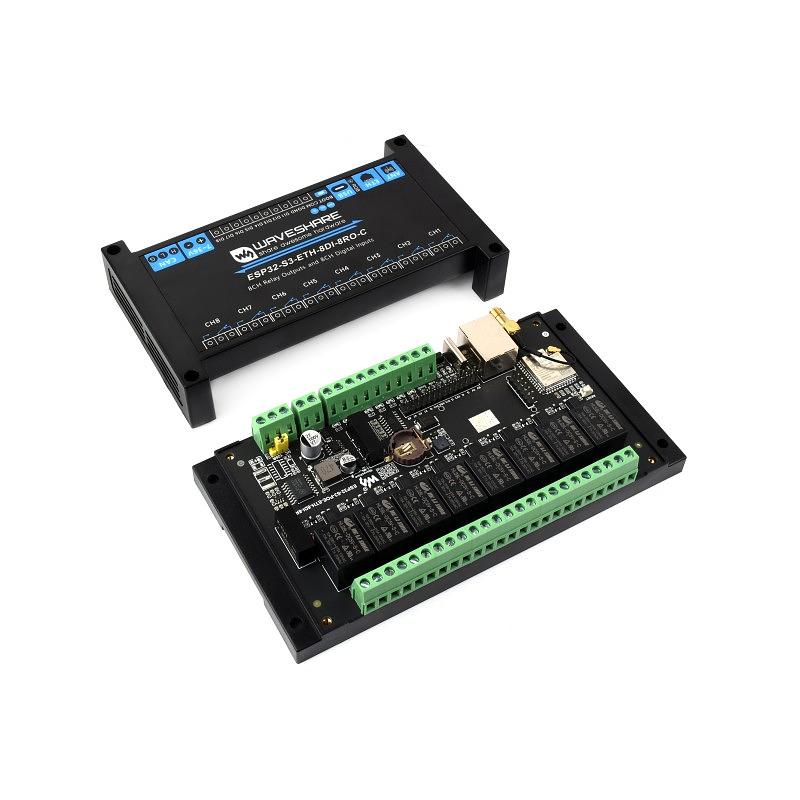

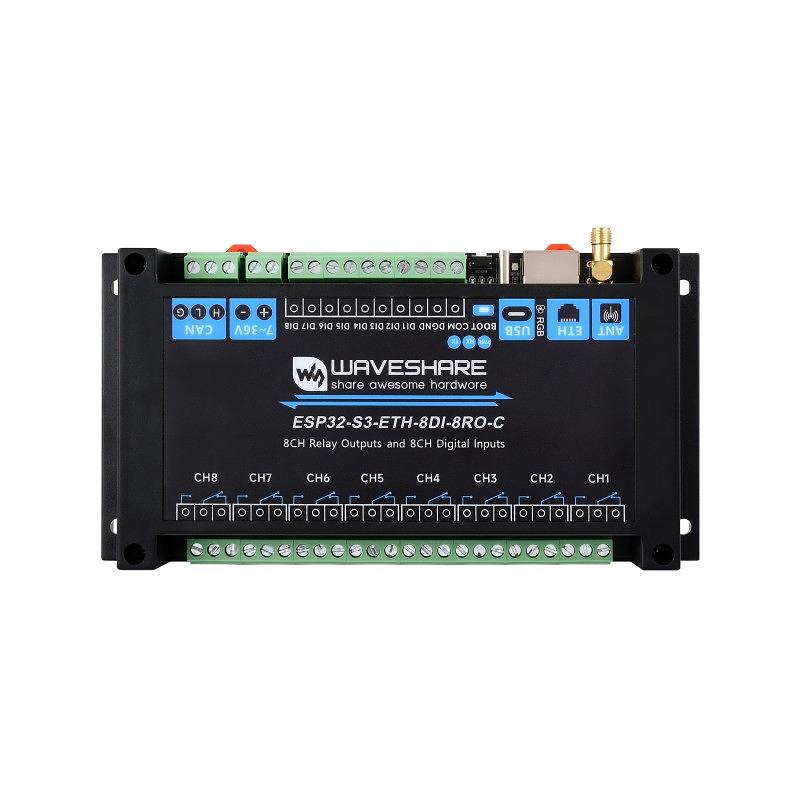

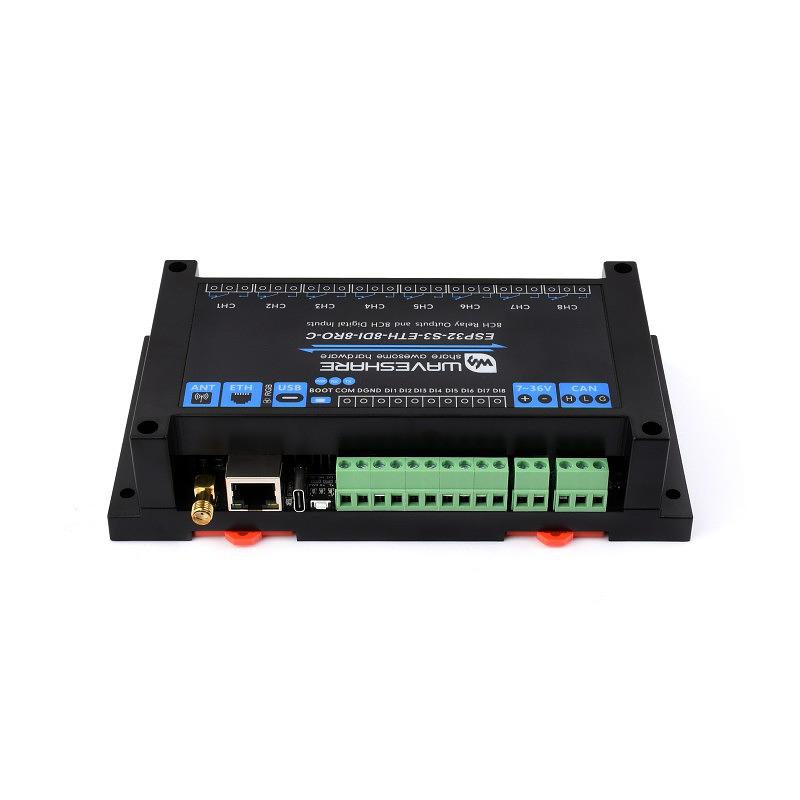

Industrial 8-Channel ESP32-S3 WiFi Relay Module (With POE)

Jargon buster

Plain-language definitions for the technical terms used above.

BLE

BLE stands for Bluetooth Low Energy, a Bluetooth mode designed for lower power use and modern phone compatibility. It matters because BLE support can make the module easier to use with Apple devices and battery-powered projects, though it may behave differently from classic serial Bluetooth.

CAN bus

CAN bus is a reliable two-wire communication network originally designed for vehicles and now common in machinery and robotics. It matters when you need multiple controllers or devices to share status and control messages in a noisy electrical environment.

DIN

DIN means data in, the pin where this display receives data from the controller. Connecting DIN to the correct SPI data output pin is needed for the screen to receive pixel and command information.

ESP32

ESP32 is a family of microcontroller modules with built-in wireless features such as Bluetooth and WiFi. Knowing this product uses an ESP32-based module helps explain how it provides wireless serial communication and firmware update features.

IoT

Short for Internet of Things, meaning physical devices that connect to networks or the internet to send data or be controlled remotely. It matters if you want projects such as connected sensors, remote controls or classroom data-logging activities.

LED

A light-emitting diode is a small electronic component that lights up when current flows through it in the correct direction. In this kit, LEDs create the flashing effect, so polarity and correct soldering matter for the project to work.

microcontroller

A microcontroller is a small computer on a chip that runs your program and controls connected inputs and outputs. For this product, it is the part that reads buttons and sensors, drives the display and speaker, and communicates over Bluetooth.

MicroPython

A version of the Python programming language made to run on microcontrollers. It matters because it lets beginners write readable code to control LEDs, sensors, motors and displays without needing to start with lower-level languages.

microSD card

A microSD card is a small removable memory card used to store files such as audio tracks. For this product, the card is where the sound files live, so its capacity and formatting can affect how many sounds you can use.

RGB

Short for red, green and blue, usually referring to an LED that can mix those three colours. It matters because controlling an RGB LED teaches how separate outputs combine to create different colours.

RTC

A Real-Time Clock keeps track of time even when the main processor is asleep or powered down, usually with a small backup battery. It matters for data logging and tracking projects that need accurate timestamps.

Tolerance

Tolerance tells you how far the real resistance value may be from the printed value. A 1% resistor is useful when a circuit needs more predictable behaviour than a looser 5% or 10% part.

USB Type-C

A reversible USB connector used for power and data on many modern devices. On this kit it indicates an alternate 5V power input, which may be useful for setup or charging without the solar panel.

USB-C

A modern reversible USB connector used for power and data connections. On this product it matters because it can connect directly to a computer as well as to a microcontroller project.
