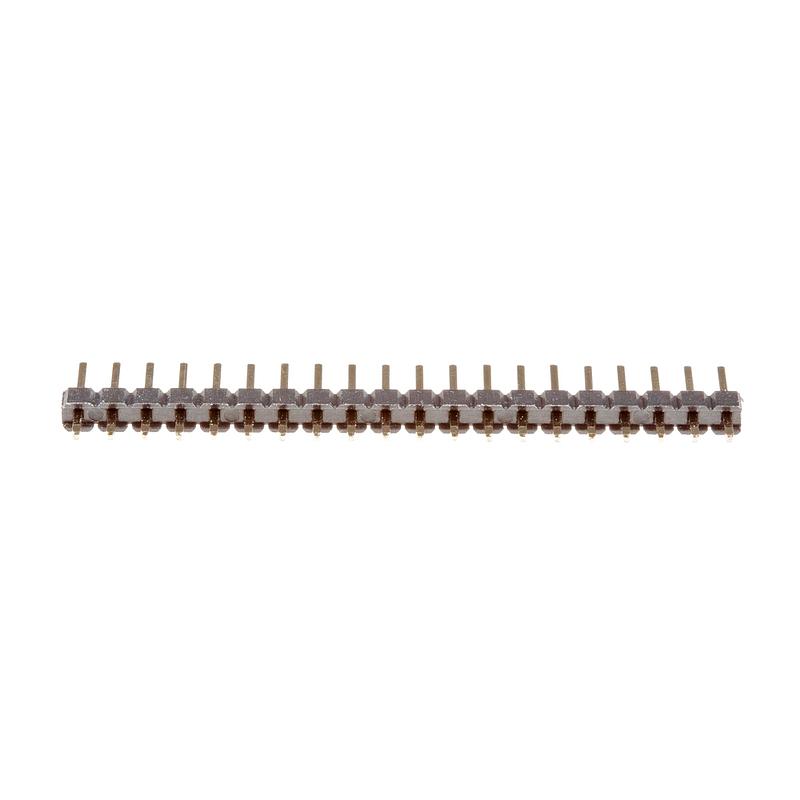

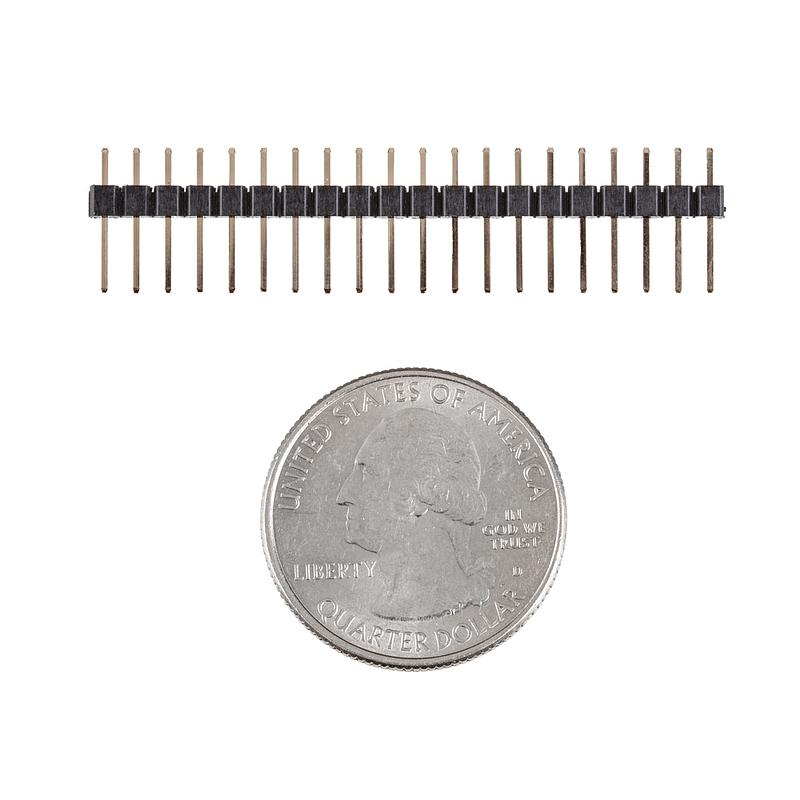

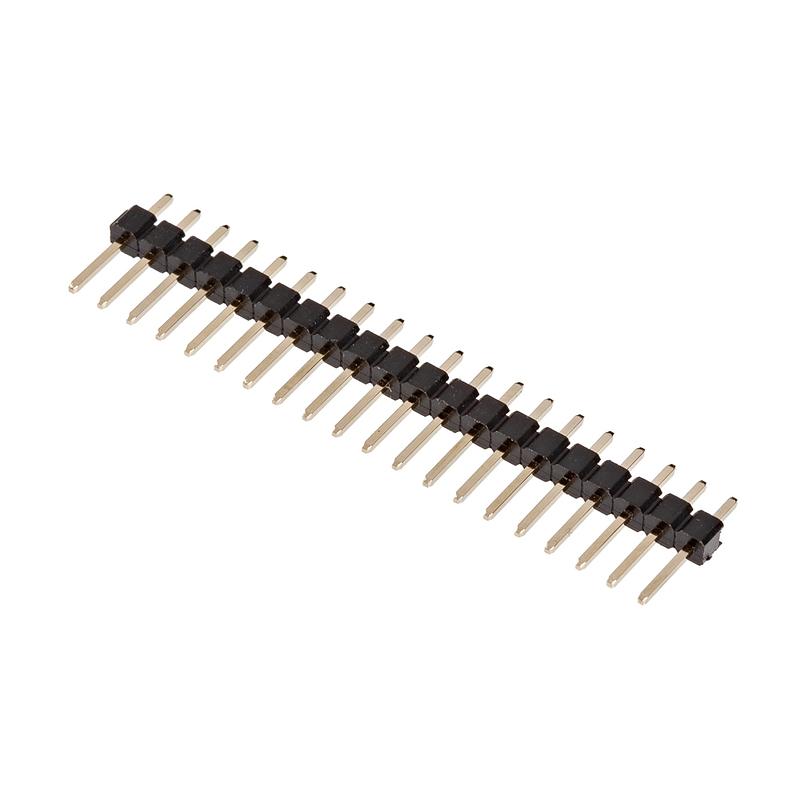

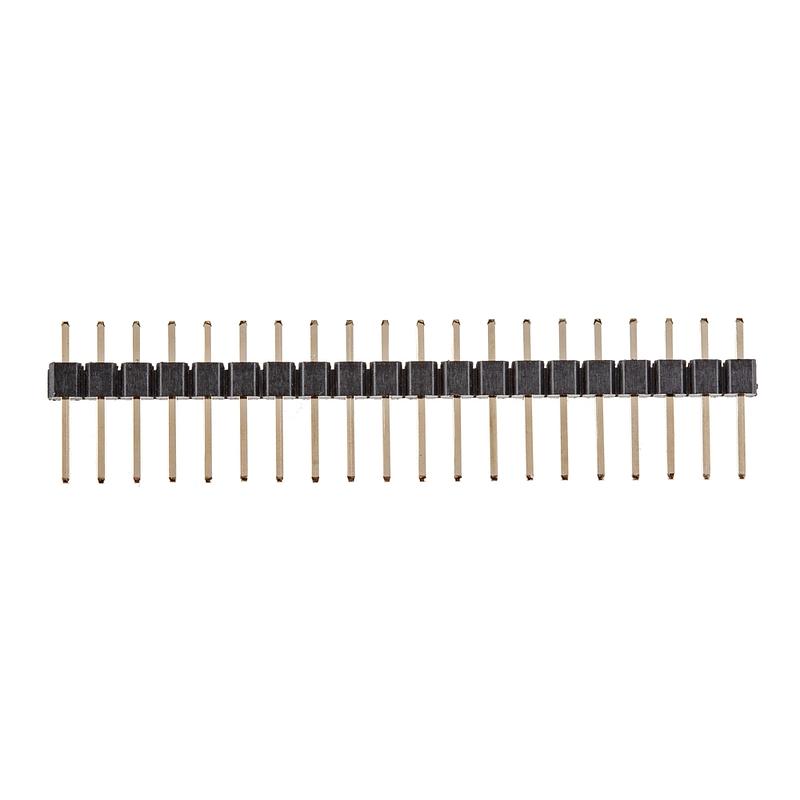

1x20 Male Header - 2.54mm Pitch
· MPN: PRT-29760
This is a single row of 20 male header pins for prototyping, board-to-board connections, and adding plug-in pins to PCBs or maker projects.The pins use stand...
Get notified when back in stock
This is a single row of 20 male header pins for prototyping, board-to-board connections, and adding plug-in pins to PCBs or maker projects.
The pins use standard 0.1" (2.54mm) spacing, making them suitable for common breadboard, perfboard, and Arduino-style prototyping layouts.
You can cut the strip down to the number of pins you need with a pair of wire-cutters, so one header can be used across multiple small jobs.
Features:
- Cut to size: Can be cut to size with a pair of wire-cutters.
- Compatibility: They mate very well with break away male headers.
Specifications:
- Pin count: 20-pins
- Row count: Single row
- Gender: Male
- Spacing: Standard 0.1" (2.54mm) spacing
A handy staple part for electronics workbenches, repairs, and quick prototype builds.
Jargon buster
Plain-language definitions for the technical terms used above.
- Headers
- Rows of connector contacts on a fixed pitch (commonly 2.54 mm) used to link a board to a breadboard, jumper wires, or another board. They come as male pin headers and female socket headers; when a module ships with pre-soldered headers it can be used straight away, whereas bare pads require soldering the pins yourself.
