20-Pin Straight Female Header - PTH, 0.1in (2.54mm)
· MPN: PRT-27906
This single-row female header provides 20 straight receptacles on standard 0.1 inch (2.54 mm) spacing, making it useful for prototyping, repairs and custom b...
Get notified when back in stock

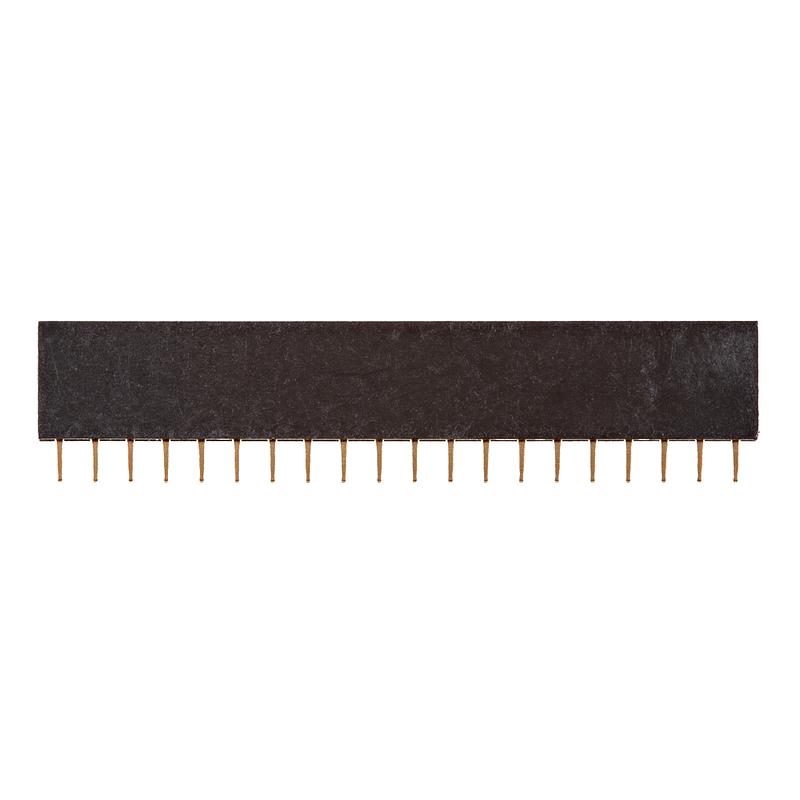

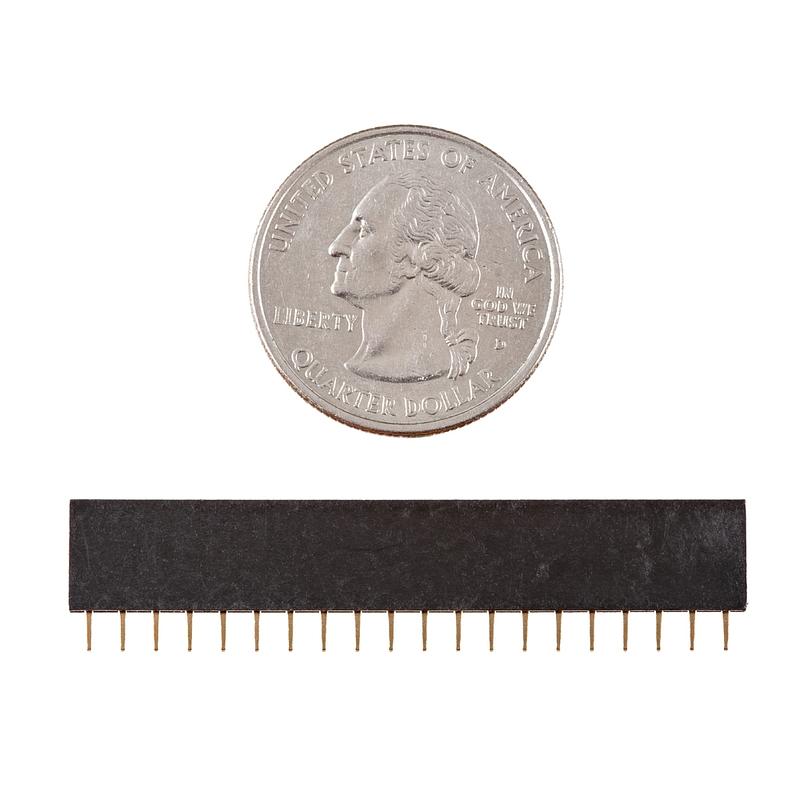

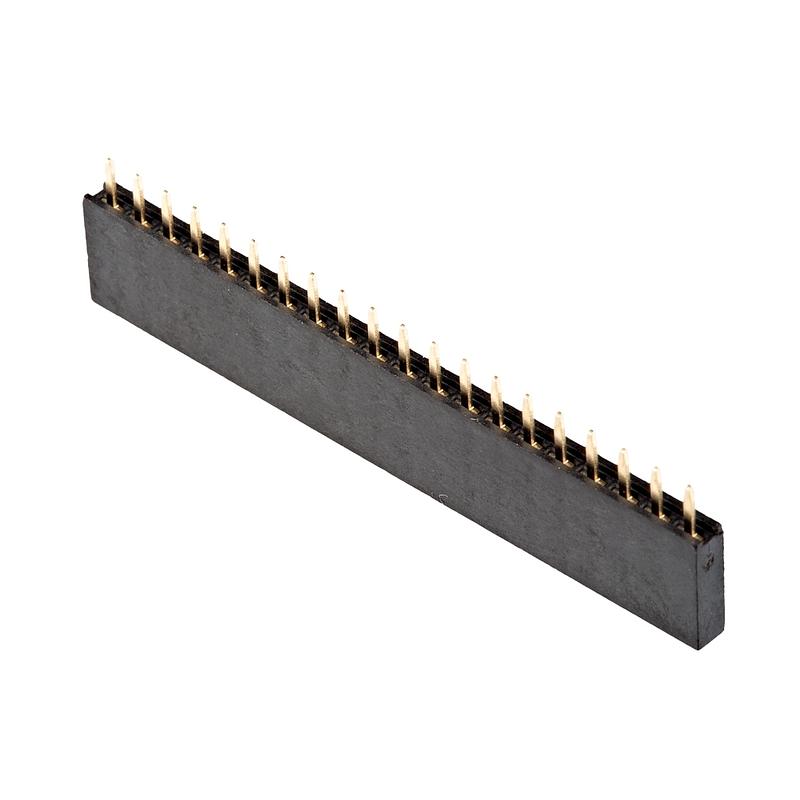

This single-row female header provides 20 straight receptacles on standard 0.1 inch (2.54 mm) spacing, making it useful for prototyping, repairs and custom board connections.
The strip can be cut down to the length you need with a pair of wire cutters. Please note that you will probably lose one pin with each cut.
It mates well with break-away male headers, so it is handy for Arduino-style shields, breakout boards and other 2.54 mm pitch maker projects.
Specifications:
- Receptacle Style: Square
- Number of Pins: 20
- Pin Spacing: 0.1" (2.54 mm)
- Receptacle Depth: 6 mm
