Header - 10-pin Female (PTH, 0.1)

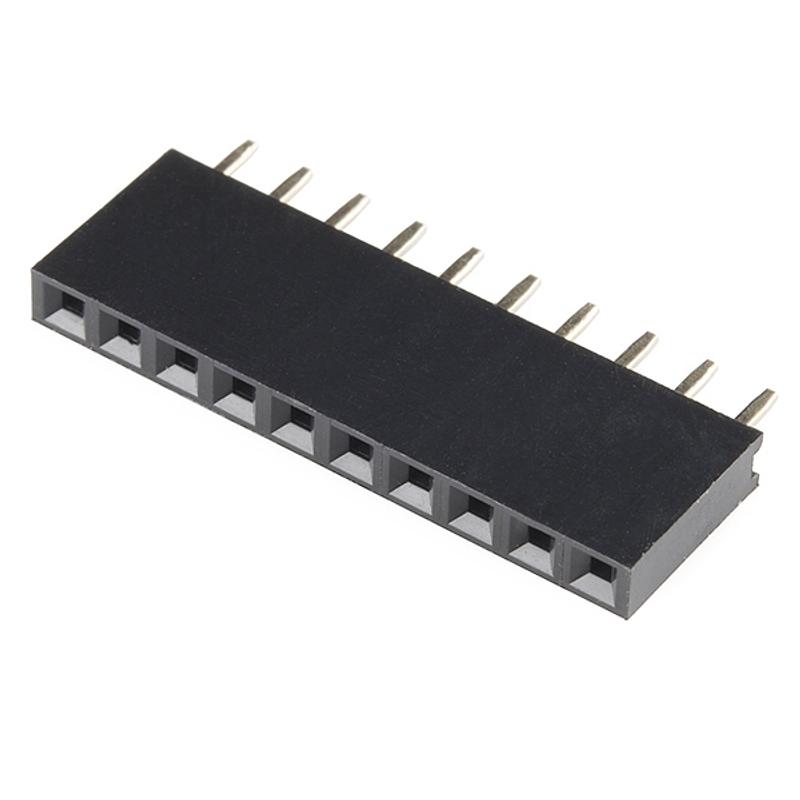

A standard 10-pin female header with 0.1" (2.54 mm) pitch, designed for through-hole soldering. Mates with standard 10-pin male headers for board-to-board co...
A standard 10-pin female header with 0.1" (2.54 mm) pitch, designed for through-hole soldering. Mates with standard 10-pin male headers for board-to-board connections, breakout boards, and prototyping.
Specifications
- Pin Count – 10 (1×10)
- Pitch – 0.1" (2.54 mm)
- Mounting – Through-hole (PTH)
- Gender – Female
Ideal For
- Prototyping and breadboard projects
- Board-to-board connections
- Socketing ICs and modules for easy removal
- Custom breakout boards and shields
Package Contents
- 1× 10-Pin Female Header (0.1" pitch, PTH)
Resources
Jargon buster
Plain-language definitions for the technical terms used above.
- breakout
- A breakout is a small circuit board that makes a tiny or hard-to-solder component easier to connect to with standard pins. It matters because this OLED module can be wired into a microcontroller project without needing to solder directly to the display’s fine contacts.
- Headers
- Rows of metal pins used to plug a module into a breadboard or connect it with jumper wires. Pre-soldered headers make the module easier to use straight away without needing to solder the pins yourself.
- PTH
- Plated through-hole means the pin holes are metal-lined so solder connects the pad on both sides of the board. It is useful for connectors and headers that need a strong mechanical and electrical connection.
