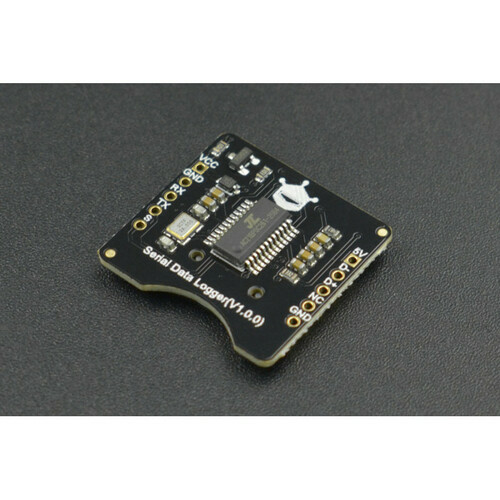

Fermion: Serial Data Logger for Arduino
Compared to the previous MicroSD Card Module, this Fermion: Serial Data Logger can store data more conveniently, and supports direct data printing through se...
Get notified when back in stock
Compared to the previous MicroSD Card Module, this Fermion: Serial Data Logger can store data more conveniently, and supports direct data printing through serial port without additional codes.
The Serial Data Logger supports 32GB TF card, making it suitable for long-time data storage. It comes with a USB function, which means you can directly connect it to a PC to read the stored files without using a card reader. Meanwhile, with the onboard LED indicator, data writing status can be viewed visually. And the onboard SAVE pin makes it easier to store data into separate files.
Connection Diagram
Pinout
Features
Applications
Specification
Documents
Shipping List
Jargon buster
Plain-language definitions for the technical terms used above.
- baud
- Baud is the signalling rate of a serial connection, often used as the speed setting for UART communication. Matching the baud rate matters because both connected devices must use the same setting for readable data.
- LED
- A light-emitting diode (LED) is a small electronic component that emits light when current flows through it in the correct direction. Because it only conducts one way, its polarity matters, and a through-hole LED must be soldered the correct way around to light up.
- microSD card
- A microSD card is a small removable flash memory card used to store data such as audio, images, logs or program files. Its capacity and formatting (often FAT32 or exFAT) affect how much can be stored and whether the card needs preparing before use.
Find this product in
Sensors & Input
Supplier page — dfrobot.com
Supplier Description · 702.2 KB · Click any page to view full size
TEL0148 serial data logger dimension V1.0
Mechanical Drawings · 44.7 KB · Click any page to view full size
TEL0148 serial data logger schematics V1.0
Schematic · 1.4 MB · Click any page to view full size
