7 Inch 1024x600 Raspberry Pi Monitor Touchscreen Capacitive IPS Display with Built-in Speaker Stand
100 units available with a short lead time.

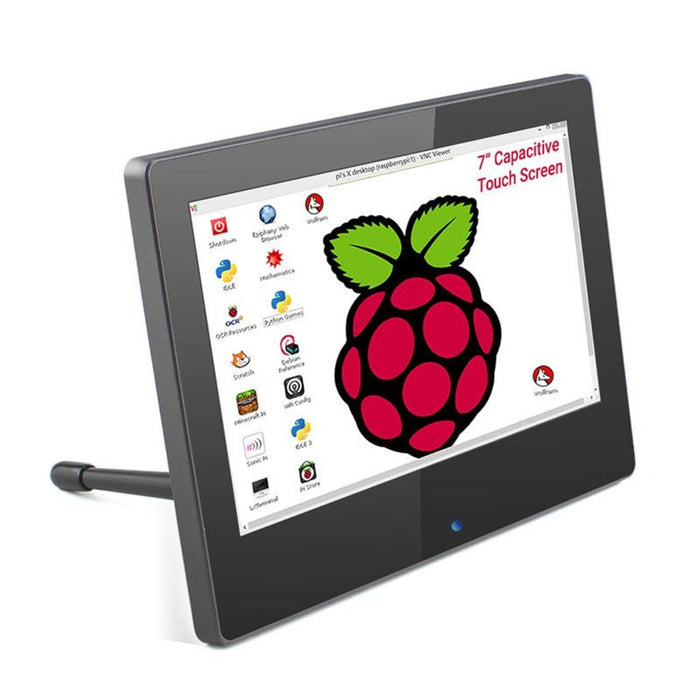

This 7" IPS touchscreen monitor is designed for Raspberry Pi with a built-in speaker, stand, and all necessary cables included in the box. Mount your Raspberry Pi directly on the back of the display using the included acrylic board and copper standoffs for a compact, portable setup.
The capacitive USB touchscreen is plug-and-play with no driver installation required. When used with a PC (Windows 10/8/7), it supports 5-point touch. With Raspberry Pi (Raspbian, Ubuntu, WIN10 IoT), it supports single touch. The OSD menu allows easy adjustment of brightness, volume, contrast, saturation, and language.
Key Features
- 1024×600 IPS Display – Wide viewing angles with consistent colour
- Capacitive Touchscreen – USB plug-and-play, no driver needed
- Built-In Speaker – Audio output without external speakers
- HDMI Input – Works with any HDMI video source
- OSD Controls – Adjust brightness, volume, contrast, saturation, and language
- Backlight Control – Adjustable for lower power consumption
- Pi Mounting Kit – Acrylic board and standoffs for rear-mounting a Raspberry Pi
- Bracket Stand – Included stand for desk use
Specifications
- Display Size: 7"
- Resolution: 1024×600
- Panel Type: IPS
- Touch Type: Capacitive (USB)
- Video Interface: HDMI
- Screen Dimensions: 178 × 127 mm
- Panel Weight: 296 g
Compatibility
- Raspberry Pi – Pi 4/3/2 (Raspbian, Ubuntu, WIN10 IoT) — single touch
- Windows PC – Win10/8/7 — 5-point touch
- Gaming Consoles – Nintendo Switch, Xbox, PS4 (display only)
- Any HDMI Device – Works as a standard HDMI monitor
Ideal For
- Portable Raspberry Pi setups
- Desktop secondary monitors
- Embedded projects requiring touch input
- Gaming console portable displays
Package Contents
- 1× 7" Touchscreen Monitor
- 1× Bracket stand
- 1× HDMI-to-Micro-HDMI cable
- 1× HDMI-to-HDMI cable
- 1× Micro-USB to USB cable
- 1× Acrylic mounting board
- 2× M4×5 screws (for acrylic board)
- 4× Copper standoffs (for Raspberry Pi)
- 4× M2.5×5 screws (for Raspberry Pi)
