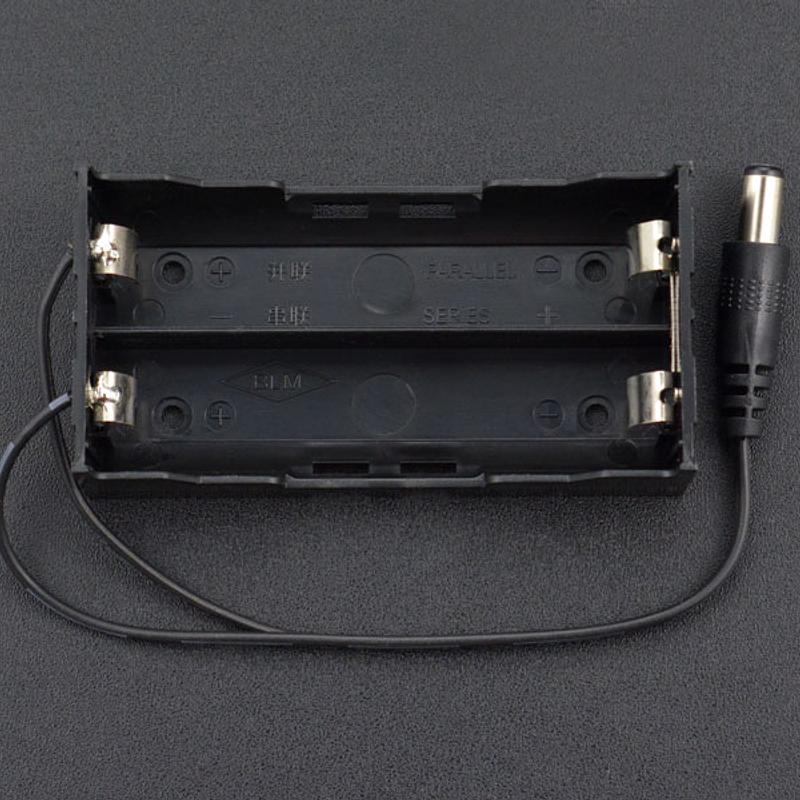

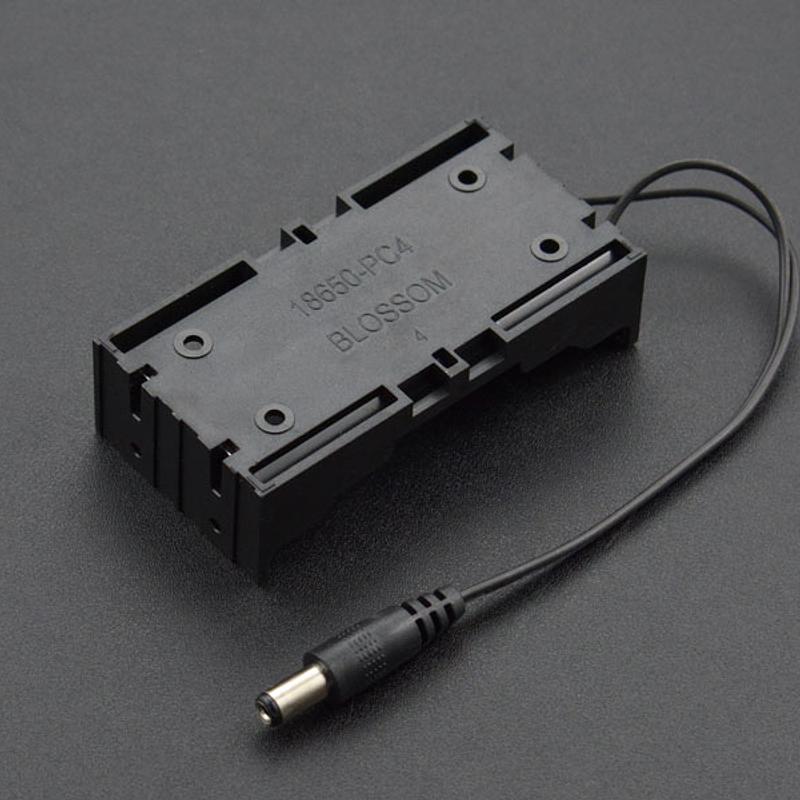

2 x 18650 Battery Holder with DC 2.1mm Jack
· MPN: FIT0538
This battery holder takes two 18650 lithium cells and connects them internally in series for a standard 7.4 V output. It is a simple way to power electronics...
Get notified when back in stock
This battery holder takes two 18650 lithium cells and connects them internally in series for a standard 7.4 V output. It is a simple way to power electronics projects from common 18650 cells, such as those used in laptop battery packs and power banks.
The holder includes a DC 2.1 power jack, making it suitable for connecting to compatible Arduino boards or other devices that accept this barrel-style input. The enclosure uses an ABS shell with a durable spring contact structure.
One 2 x 18650 battery holder with DC2.1 power jack is included. Different batches of DC connectors may have slight differences in appearance, but this does not affect use.
Features:
- ABS shell
- The spring plate is nickel plated with stainless steel.
- The material structure is firm and durable.
Specifications:
- RoHs Certification: RoHs Certification
- Battery Model: 18650
- Cell number: 2
- Output Voltage: 7.4 V
- Plug form: DC 2.1 (outer diameter 5.5, inner diameter 2.1)
- Size: 77.9 x 40.11 x 21.41 mm/ 3.07 x 1.58 x 0.84 inches
- Weight: 15.5 g
Jargon buster
Plain-language definitions for the technical terms used above.
- DC
- DC means direct current, where electricity flows in one constant direction, as supplied by batteries, USB ports and many plug-pack power supplies. When a product specifies DC, it runs from a DC supply rather than mains AC, so you need to provide the correct voltage and polarity.
