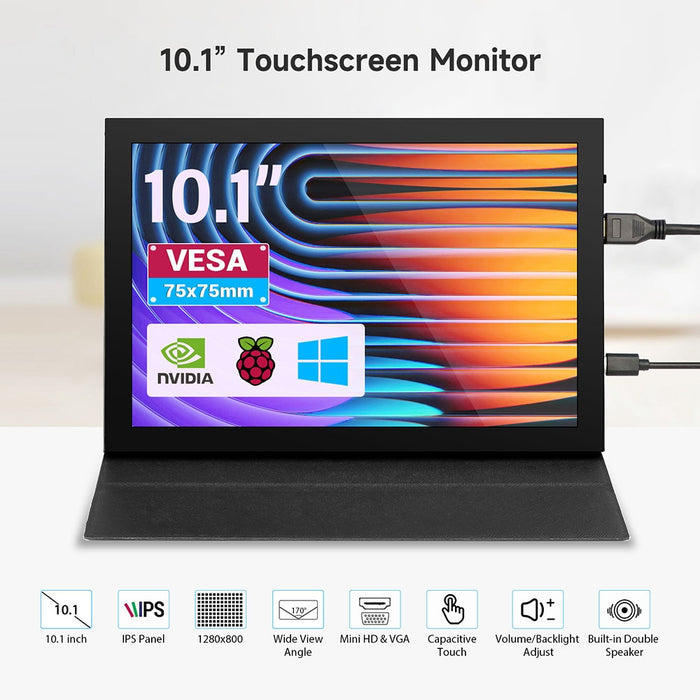

10.1” IPS Capacitive Touch Display 1280*800
A 10.1" IPS capacitive touchscreen monitor with 1280 × 800 resolution, built-in dual stereo speakers, and a metal enclosure. It supports mini-HDMI and VGA vi...
Get notified when back in stock
A 10.1" IPS capacitive touchscreen monitor with 1280 × 800 resolution, built-in dual stereo speakers, and a metal enclosure. It supports mini-HDMI and VGA video inputs with signal switching, and features 5-point touch with the GT911 touch controller — driver-free on most systems.
The display is compatible with Raspberry Pi, Banana Pi, BeagleBone Black, and game consoles such as PS4, Xbox, and Switch. It supports Raspbian, Kali Linux, Ubuntu, Kodi, and Windows 7/8/10/11 with plug-and-play touch. A protective leather case that doubles as a stand is included.
Specifications
- Screen Size – 10.1"
- Resolution – 1280 × 800 (max input 1920 × 1080)
- Panel Type – IPS (178° viewing angle)

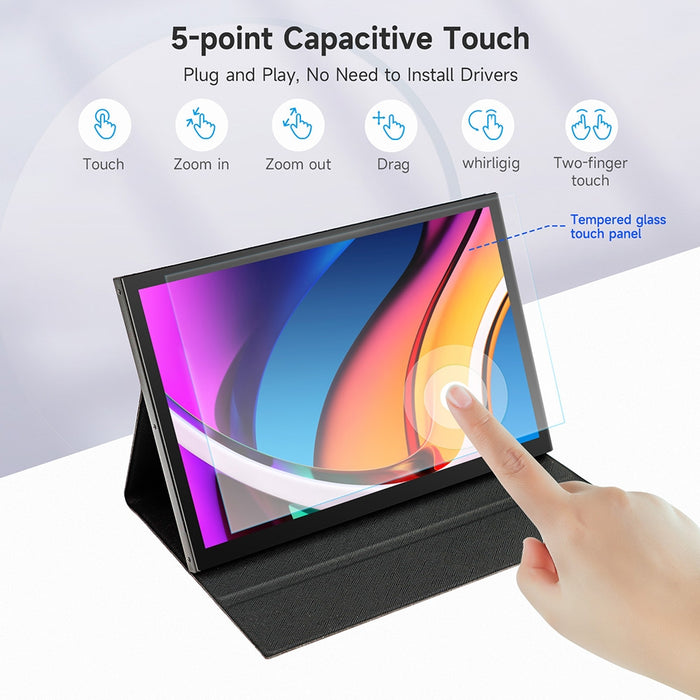

- Touch Type – Capacitive, 5-point (GT911 controller)
- Touch Hardness – 6H
- Colour Depth – 16.7 M colours
- Brightness – 250 cd/m²
- Contrast Ratio – 1000:1

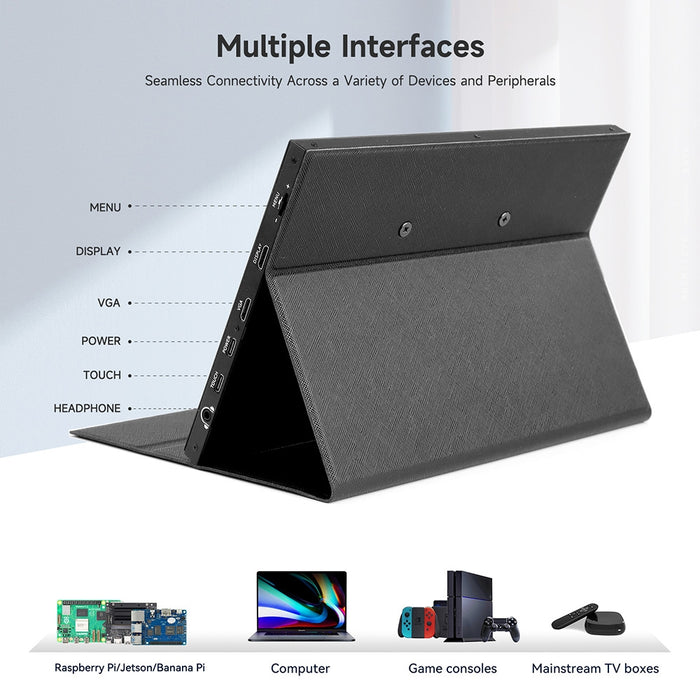

- Video Inputs – Mini-HDMI, VGA

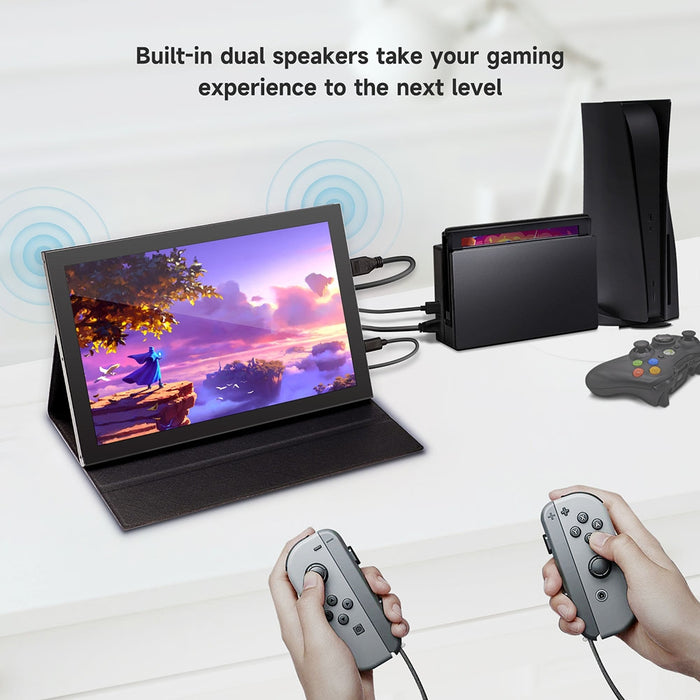

- Audio – Built-in dual speakers (8 ohm, 2 W × 2) + 3.5 mm audio jack
- Power/Touch Interface – USB Type-C
- Supply Voltage – 5 V
- Power Consumption – 6.15 W (max brightness, no audio) / 9 W (max brightness + audio)
- Enclosure – Metal shell
- Dimensions – 242.5 × 161.2 × 10.7 mm
- Weight – 695 g
- Operating Temperature – −10 °C to 50 °C
Ideal For
- Raspberry Pi and SBC desktop setups
- Game console portable displays (PS4, Xbox, Switch)
- Kiosks, digital signage, and development workstations
Package Contents
- 1× 10.1" touch monitor
- 2× USB-A to Type-C cables
- 1× Protective leather stand
- 1× Mini-HDMI to standard HDMI cable
- 1× VGA male to mini-HDMI cable
- 1× Micro-HDMI to standard HDMI adapter
Jargon buster
Plain-language definitions for the technical terms used above.
- Colour depth
- Colour depth describes how many different colours a display can show. A 65K-colour display can show about 65,000 colours, which is useful for icons, graphs, and simple full-colour interfaces but is less detailed than modern phone or computer screens.
- HDMI
- HDMI is a common digital video and audio connection used by computers, media players, and many displays. If a display kit has HDMI input, it is usually much easier to test with a single-board computer because it can act like a normal monitor.
- IPS
- IPS is a type of LCD panel that keeps colours and contrast more consistent when viewed from an angle. This matters for small displays that may be mounted in a dashboard, handheld project, or enclosure where the viewer is not always looking straight on.
- Type-C
- USB Type-C (USB-C) is a small, reversible USB connector used for charging, power, and data transfer on many modern devices. A Type-C port or plug indicates the cable and charger connection needed to power, charge, or communicate with a device.
- USB Type-C
- USB Type-C is a small, reversible USB connector used for power, data and sometimes video on many modern devices. The connector itself does not guarantee a particular speed or voltage, so check the supported USB version, data rate and whether it carries more than 5V via USB Power Delivery.
- VGA
- VGA has two common meanings in electronics: as a resolution it usually refers to a 640 x 480 pixel image, which is modest detail suitable for basic display or inspection rather than high definition; as a connector it refers to the analogue 15-pin video output long used on computers and monitors. Check which sense a listing means.
