VCE Systems Engineering Unit 1 — Electrotechnological systems design — kit, BoM & downloads
Everything you need to buy, quote and distribute this unit. The teaching content lives elsewhere — this page exists so that prices, cart actions and downloads stay out of the student and presentation flows.
Single kit — sample, top-ups & replacements

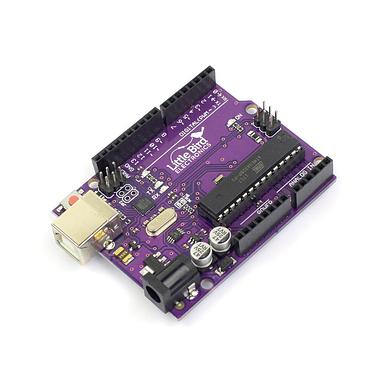

Uno R3 - Little Bird
$19.55 each
Same kit as one of the 0 in the pack — order it on its own for an evaluation sample, a lost component, or to make up an odd class size.
For purchase orders, email team@littlebirdelectronics.com.au — include the unit name and student count.
Bill of materials
15 linesCore (7)
qty shown per class of 30-
Uno R3 - Little BirdLB-00300 · 1 per student
Microcontroller board, programmed over USB from the browser. The USB A-to-B cable is included in the box.
×30
$19.55
In stock -
Breadboard - Full-Size (Bare)SF-PRT-12615 · 1 per student
830 tie points, enough for the whole project.
×30
$15.65
In stock -
3 Colour Male to Male Jumper Wire 20cm x 30LB-PT-JUMPER-KIT · 1 per student
Male-to-male, which is what breadboard-to-breadboard and board-to-breadboard work needs.
×30
$5.85
In stock -
Resistor Kit in Plastic CaseLB-LR0679 · 1 per student
525 resistors, 1% metal film. Every value the unit needs.
×30
$15.45
In stock -
×60
$1.25
In stock -
×30
$10.25
In stock -
Soil Moisture SensorLB-LR0040 · 1 per student
The sustainability sensor most projects end up using.
×30
$3.50
In stock
Consumable (1)
qty shown per class of 30-
5mm LED Mixed Pack (50 pcs)LB-50LED · 1 per student
Five colours. Students will destroy a few learning current limiting.
×30
$5.80
In stock
Shared classroom (5)
qty shown per class of 30-
Jumper Wires Premium 6 M/F Pack of 100SF-PRT-09139 · 0 per student
Male-to-female, for connecting sensor modules to the breadboard. One pack covers a class.
×1
$55.65
In stock -
×8
$52.75
In stock -
L298N Dual H-Bridge Motor Driver BoardLB-OWL-HBRIDGE · 0 per student
The driver for PRP 7. Screw terminals, and the flyback protection a motor needs is already on the board.
×8
$15.45
In stock -
DC Diaphragm Pumps for Arduino Automatic Smart Plant Watering KitLB-PMMA19004A001 · 0 per student
PRP 7. One between three or four students; they run it in a tray, not at a desk.
×8
$9.75
Out of stock -
Digital Vernier Callipers - 150mm, Four-Way MeasurementLB-HR0309-27 · 0 per student
For measuring components and enclosure parts during production.
×4
$14.20
In stock
Extension (2)
qty shown per class of 30-
Thermoelectric Generator (TEG) Module - SP1848-27145, 40 x 40mmLB-HR0214-42A · 0 per student
Turns a temperature difference into electricity. Good for energy-harvesting projects.
×1
$11.42
In stock -
Flex Sensor - 2.2 inchLB-HS7762 · 0 per student
Bend sensing, for projects that detect movement or position.
×1
$25.30
In stock
About the kit
The per-student kit covers every practical activity in sequences 1-5 and most student projects. It is deliberately components rather than a sealed kit, so students choose parts rather than follow a wiring diagram.
The shared classroom items are the measuring instruments. One multimeter between three or four students is workable and encourages them to talk about readings.
Projects that go further — energy harvesting, movement sensing — need one or two extension parts. Order those per project, not per student.
Downloads
For school procurement
- We accept purchase orders from Australian schools and universities; net-30 terms apply.
- Quotes include line-item GST and freight; request via team@littlebirdelectronics.com.au.
- Bulk pricing is available on class-of-30 orders — we'll send a tailored quote on request.
- Replacement parts (consumables, lost components) are stocked individually.
