All Products

SKU: LB-LR0244

This general-purpose 130-size hobby motor runs on 3–6V and spins at 4,000–8,000 RPM depending on the input voltage. Its compact size and 2 mm shaft make it well suited for small robotics projects, fan-powered cars, and other DIY builds. Specifications Voltage – 3–6V DC Speed – 4,000 RPM @ 3V ...

SKU: AF-711

A standard 130-size DC hobby motor with a wider operating range than typical toy motors: 4.5–9V DC instead of the usual 1.5–4.5V. This makes it ideal for Arduino and motor shield projects where 5V or 9V is readily available. Pre-soldered breadboard-friendly wires allow for quick prototyping. Dro...

SKU: DF-FIT0016

This is a TT Micro DC Geared Motor with Back Shaft working at 6V with 160rpm. The TT motor series the most popular DC motors for DIY enthusiasts.  It is designed to easily incorporate the DFRobot Encoder. These motors are inexpensive, small, easy to install, and ideally suited for ...

SKU: LB-LS6460

A battery box with a built-in 130 DC motor and on/off switch — a simple, self-contained power and drive unit for beginner robotics, model vehicles, and STEM projects. Just add batteries and connect to your build. Specifications Motor – 130 DC motor Voltage – 3–6 V (depending on battery config...

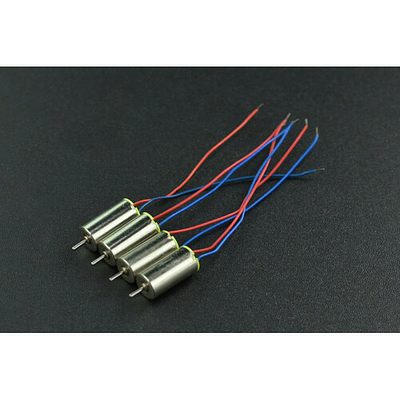

SKU: DF-FIT0791

A pack of four coreless micro motors measuring 6 × 12 mm, reaching 50,000 RPM at 3.7V. The slightly longer body compared to the 6 × 10 mm variant provides additional torque, making these motors a good balance of power and size for DIY micro drones and small RC projects. Key Features 50,000 RPM...

SKU: DF-FIT0520

A 6V brushed DC motor with a 20:1 metal gearbox and an integrated quadrature encoder. The encoder provides 11 counts per revolution of the motor shaft, corresponding to 224.4 counts per revolution of the gearbox output — giving precise speed and position feedback for closed-loop motor control. T...

SKU: AF-4638

This N20 micro geared DC motor includes a built-in magnetic encoder wheel and two Hall effect sensors, providing speed and direction feedback without additional wiring. The compact N20 form factor makes it well suited for small robotics projects requiring precise motor control. The motor runs on...

SKU: DF-FIT0790

A pack of four coreless micro motors measuring 6 × 10 mm, capable of reaching 55,000 RPM at 3.7V. Slightly larger than the 4 × 12 mm variant, these motors offer a wider shaft (0.8 mm) for improved propeller compatibility, making them well suited for DIY micro drones and small RC aircraft. Key Fe...

SKU: AF-4639

The first step in a robotics project is to get a motor spinning. Once you've done that you quickly learn that not all motors go the same speed, even if they are the same part number! There are always variations that relate to voltage, environment, and manufacturing changes. So, the second step is...

SKU: DF-FIT0473

This metal DC geared motor features a 45:1 metal gear reducer in a compact form factor, delivering up to 4.5 kg·cm of stall torque at 133 RPM. The all-metal gearbox provides durability and reliability for robotics, drive systems, and mechanical projects. The motor operates on 2–7.5 V (rated 6 V)...

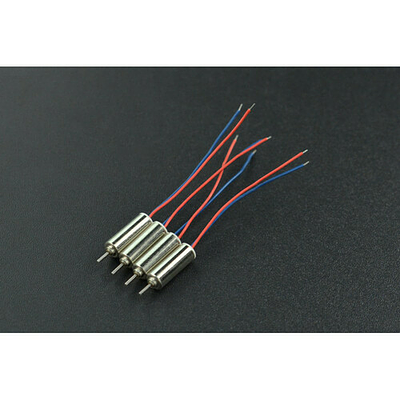

SKU: DF-FIT0789

A pack of four coreless micro motors measuring just 4 × 12 mm, capable of reaching 60,000 RPM at 3.7V. Their tiny size and high speed make them ideal for DIY micro drones, small RC aircraft, and other lightweight motorised projects. The 0.7 mm shaft is compatible with small propellers designed fo...

SKU: DF-FIT0492-A

A high-torque 12V DC geared motor with a 100:1 metal gear reducer. Built with 100% copper coils and a metal gearbox for durability, this compact motor delivers up to 50 kg·cm of stall torque at 50 RPM — ideal for robotics, automation, and projects requiring strong, controlled rotation. Key Featu...

SKU: DF-FIT0185

This 12 V DC geared motor (model GB37Y3530-12V-83R) pairs a powerful brushed motor with a 131:1 metal gearbox and an integrated Hall-effect quadrature encoder. The encoder provides 16 counts per revolution on the motor shaft — equivalent to 2096 counts per revolution on the gearbox output — givin...

SKU: DF-FIT0577

This DC gearmotor are now in the status of Pre-order and will ship in the end of Jun. This DC gearmotor has an integrated M3*20mm threaded rod as its output shaft, turn it into a linear actuator. 6V rated voltage, the no-load speed could arrive 98RPM, equivalent to 1.1mm/s. The brass facepla...

SKU: DF-FIT0495-E

This compact metal DC geared motor features a 99:1 metal gear reduction for high torque output in a small form factor. With a maximum torque of 2.5kg·cm, it's built for robotics, automation, and mechanical projects requiring reliable, durable performance. Specifications Rated Voltage: 6V Oper...

SKU: DF-FIT0565

This is a mini DC motor with a 1:35 reduction box. It has small size and takes up very little space. It uses metal gears which is durable. The D-shape shaft facilitates the installation of motor. The no-load speed is 375rpm and the noise is low.     In order to protect the service...

SKU: DF-FIT0522

This is a metal geared DC motor w/Encoder. It is a 6V motor with a 75:1 metal gearbox and an integrated quadrature encoder that provides a resolution of 11 counts per revolution of the motor shaft, which corresponds to 823.1 counts per revolution of the gearbox’s output shaft. Pinmap These ...

SKU: PL-1587

A low-power 6V brushed DC gearmotor with a 98.78:1 metal spur gearbox. The cylindrical motor body measures just under 25mm in diameter, and the D-shaped output shaft is 4mm in diameter, extending 12.5mm from the gearbox face plate. The low-power variant draws less current than the HP version, mak...

SKU: PL-3215

A high-power 12V brushed DC gearmotor with a 20.4:1 metal spur gearbox and integrated 48 CPR quadrature encoder. The encoder on the motor shaft provides 979.62 counts per revolution of the gearbox output shaft, enabling precise speed and position control for robotics applications. The cylindrica...

SKU: LB-LS2977

Specification:Model: Mini 130 Vibration MotorMotor size: 25*20mmMotor height: 15.3mmVoltage range: DC 3V-6VRated voltage: DC 3.7VRated current: 0.8AWeight: 26gApplication: It is a Strong Vibration Motor. Package Include:1 x  Vibration Motor
