These are 12V DC motors with gearboxes; the main choice is output speed, torque, and whether you need an encoder.
- High torque, low speed: Metal DC Geared Motor – 12V 50RPM 50kg.cm has a 100:1 metal gearbox and 50 kg·cm stall torque ($20.95).
- Budget options without encoders: 12v JGA25-370 DC speed reduction motor 60 RPM and 12v JGA25-370 DC speed reduction motor 280 RPM are $8.80 each.
- With speed feedback: 12V GA25-370 DC Gear motor with Speed Encode 60 RMP and 12V GA25-370 DC Gear motor with Speed Encode 280 RMP include encoders ($16.45 each).
- Higher-spec choices: 47:1 Metal Gearmotor 25Dx52L mm HP 12V runs at 220 RPM no-load ($44.05); Metal DC Geared Motor w/Encoder – 12V 122RPM 38Kg.cm combines a 90:1 gearbox with a quadrature encoder ($47.70).
Which motor characteristic matters most?
Showing 41-60 of 97 products
Micro Metal Gearmotor with Push Header Shim - 50:1
Our ever popular micro metal gearmotor, now available with a solderless push header shim for ease of prototyping! Connect your motor to your project with some jumper jerky and you're good to go! This gearmotor is a miniature brushed DC motor with a metal gearbox available in a range of ge...
Solenoid Valve-DN20
A 12V DC motorised solenoid valve with a DN20 (20 mm) bore, designed for controlling water flow in automated projects. The valve integrates a DC motor with a metal reduction gearbox, providing high torque and low noise operation. It withstands up to 1.0 MPa static pressure. The valve has three c...
Metal DC Geared Motor w/Encoder - 6V 300RPM 3.6Kg.cm
A 6V brushed DC motor with a 20:1 metal gearbox and an integrated quadrature encoder. The encoder provides 11 counts per revolution of the motor shaft, corresponding to 224.4 counts per revolution of the gearbox output — giving precise speed and position feedback for closed-loop motor control. T...
Micro Metal Gearmotor (Extended back shaft) - 1006:1
A miniature brushed DC motor with a 1006:1 metal gearbox and an extended back shaft for attaching optical encoders. This high-ratio gearmotor delivers very low speed with high torque, making it ideal for precision robotics, slow-motion mechanisms, and applications requiring fine positional contro...
6.3:1 Metal Gearmotor 37Dx65L mm 24V with 64 CPR Encoder (Helical Pinion)
A powerful 24V brushed DC gearmotor with a 6.25:1 metal gearbox and integrated 64 CPR quadrature encoder. The gearbox uses helical gears on the first stage for reduced noise and improved efficiency, with spur gears for the remaining stages. The integrated Hall effect encoder provides 400 counts ...
30:1 Micro Metal Gearmotor LP 6V
A miniature low-power brushed DC motor with a 29.86:1 metal gearbox, designed for robotics and compact mechanical projects. The 6V LP (Low Power) variant draws minimal current while delivering useful torque through the metal gear train. The D-shaped output shaft is compatible with a wide range o...
298:1 Micro Metal Gearmotor LP 6V
A miniature low-power 6V brushed DC gearmotor with a 297.92:1 metal gearbox. With a 10 × 12mm cross section, this micro metal gearmotor delivers useful torque in an extremely compact form factor. The D-shaped output shaft is 3mm in diameter and extends 9mm from the gearbox. Key Features 297.92...
70:1 Metal Gearmotor 37Dx54L mm
A powerful brushed DC motor with a 70:1 metal gearbox, designed for operation at 12V. The unit features a 16mm-long, 6mm-diameter D-shaped output shaft, suitable for robotics and mechanical projects requiring high torque. Key Features Gear Ratio – 70:1 metal gearbox Operating Voltage – 12V O...
Micro Metal Gearmotor 50:1
The Micro Metal Gearmotor 50:1 is a compact, high-quality DC motor with an integrated metal gearbox, ideal for small robotics and motorised projects. With a 50:1 gear ratio, it delivers a good balance of speed (260 RPM) and torque at 6V. The motor features a long D-shaped metal output shaft (9.2...
Micro Metal Gearmotor (Extended back shaft) - 20:1
A miniature brushed DC motor with a 20:1 metal gearbox and an extended back shaft for mounting optical encoders. All micro metal gearmotors share the same physical dimensions, so different gear ratios can be easily swapped without changing your mechanical design. Key Features 20:1 Metal Gearbo...
Micro Metal Gearmotor with Push Header Shim - 11:1
A miniature brushed DC motor with an 11:1 metal gearbox, fitted with a solderless push header shim for easy prototyping — no soldering required. Simply connect with jumper wires and you're ready to go. The compact form factor and D-shaped metal output shaft make it ideal for small robotics and me...
Metal Gearmotor with Encoder - 12V (9.7:1)
This 12V brushed DC gearmotor features a 9.68:1 metal spur gearbox and an integrated 48 CPR quadrature encoder on the motor shaft, providing 464.64 counts per revolution of the gearbox output. The two-channel Hall effect encoder senses a magnetic disk on the motor shaft, delivering speed and dire...
20.4:1 Metal Gearmotor 25Dx50L mm HP 12V with 48 CPR Encoder
A high-power 12V brushed DC gearmotor with a 20.4:1 metal spur gearbox and integrated 48 CPR quadrature encoder. The encoder on the motor shaft provides 979.62 counts per revolution of the gearbox output shaft, enabling precise speed and position control for robotics applications. The cylindrica...
99:1 Metal Gearmotor 25Dx54L mm MP 12V with 48 CPR Encoder
A medium-power 12V brushed DC gearmotor with a 98.78:1 metal spur gearbox and an integrated 48 CPR quadrature encoder on the motor shaft. The encoder provides 4741.44 counts per revolution of the gearbox output shaft, enabling precise closed-loop speed and position control. The cylindrical motor...
227:1 Metal Gearmotor 25Dx56L mm MP 12V with 48 CPR Encoder
This medium-power 12V brushed DC gearmotor features a 226.76:1 metal spur gearbox and an integrated 48 CPR quadrature encoder on the motor shaft, providing 10,884.47 counts per revolution of the gearbox output shaft for precise position and speed feedback. The gearmotor has a cylindrical form fa...

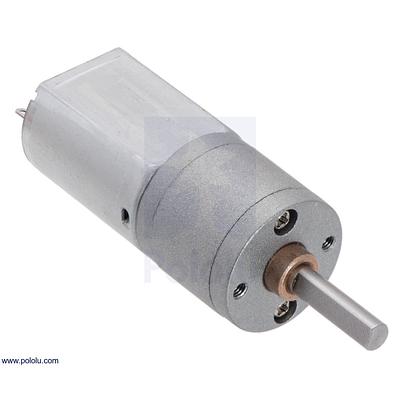

25:1 Metal Gearmotor 20Dx41L mm 6V
A compact 6V brushed DC gearmotor with a 25:1 metal spur gearbox, delivering strong torque in a small form factor. The cylindrical design has a 20mm diameter, and the D-shaped output shaft is 4mm in diameter extending 18mm from the gearbox face plate. Key Features 25:1 Metal Gearbox – Durable ...
120:1 Mini Plastic Gearmotor, Offset 3mm D-Shaft Output
A compact, inexpensive brushed DC motor with a 120:1 plastic reduction gearbox, well suited for small robot builds. The motor is rated for 4.5V but runs comfortably in the 3–6V range. The gearbox output shaft is a 3mm D-shape, offset from and parallel to the motor shaft. A built-in safety clutch ...
99:1 Metal Gearmotor 25Dx54L mm HP 6V
A high-power 6V brushed DC gearmotor with a 98.78:1 metal spur gearbox. The cylindrical motor body measures just under 25mm in diameter, and the D-shaped output shaft is 4mm in diameter, extending 12.5mm from the gearbox face plate. Also available with an integrated encoder for closed-loop contro...
99:1 Metal Gearmotor 25Dx54L mm LP 6V
A low-power 6V brushed DC gearmotor with a 98.78:1 metal spur gearbox. The cylindrical motor body measures just under 25mm in diameter, and the D-shaped output shaft is 4mm in diameter, extending 12.5mm from the gearbox face plate. The low-power variant draws less current than the HP version, mak...
Rover 5 Tank Chassis (2 motors with 2 Encoders)
The Rover 5 is a tracked robot chassis designed for students and hobbyists. Unlike conventional tracked platforms, the ground clearance is adjustable by rotating the gearboxes in 5° increments, while the stretchy rubber treads automatically maintain tension as the height changes. Each of the two...
