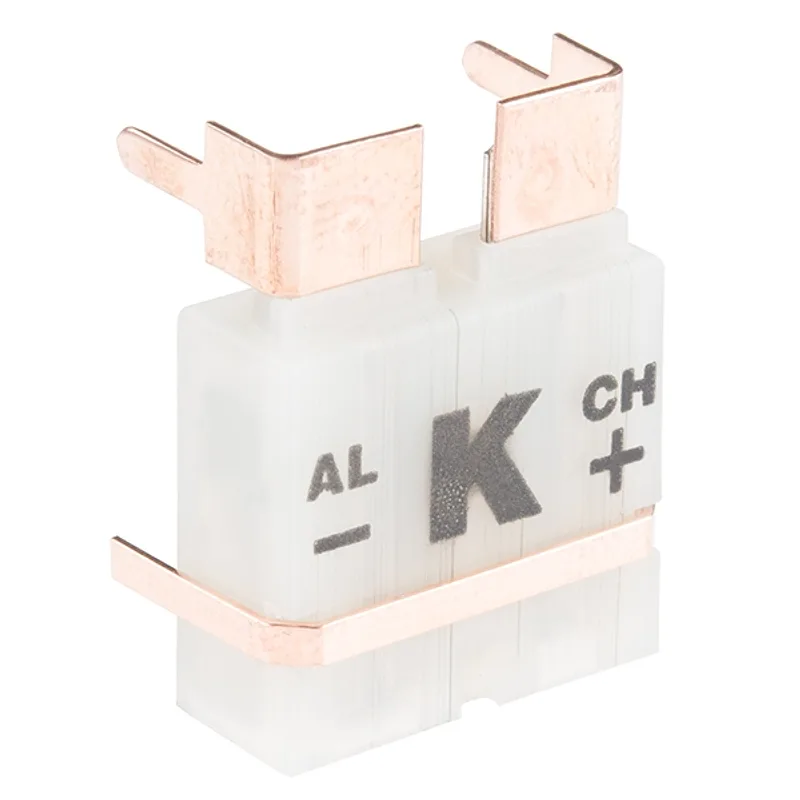

Thermocouple Connector - PCC-SMP-K
This Thermocouple Connector is perfect for bridging the gap between Type-K thermocouples with standard connectors with a PCB. This little connector is act...
This Thermocouple Connector is perfect for bridging the gap between Type-K thermocouples with standard connectors with a PCB. This little connector is actually the exact part we recommend using with our SparkFun Thermocouple Breakout! Each connector can easily attach to a printed circuit board with it’s included mounting clip.
If you plan on using this connector with a custom PCB make sure to check out the Datasheet in the Documents section below for mounting dimensions.
Documents:
Jargon buster
Plain-language definitions for the technical terms used above.
- PCB
- A printed circuit board is a rigid board with copper tracks that connect electronic parts without loose wires. For this kit, the PCBs also form the airplane shape, so they are both the circuit base and part of the finished model.
- Thermocouple
- A temperature sensor made from two different metals that produces a very small voltage depending on temperature. Because the signal is tiny, it usually needs careful amplification and accurate measurement hardware.
Find this product in
Brands
Sensors & Input
PCC-SMP-K Thermocouple Connector Datasheet
Datasheet · 614.4 KB · Click any page to view full size
