TFS20-L ToF LiDAR Sensor (20m, Sunlight Resistant, 1.35g)

Name: TFS20-L ToF LiDAR Sensor (20m, Sunlight Resistant, 1.35g)
Brand: DFRobot
SKU: DF-SEN0672
Price: 86.5 AUD
Availability: InStock

· MPN: SEN0672

All Products Distance & Ranging Sensors New Arrivals Sensors Brands and Manufacturers Proximity & Distance DFRobot Sensors & Modules Arduino Sensors Sensors & Input Prototyping & Wiring

$86.50 |

In stock at supplier

No reviews yet

The Benewake TFS20-L is an ultra-compact ToF LiDAR sensor weighing just 1.35g. With 20m range, centimetre-level accuracy, and 100K LUX sunlight resistance, i...

Add to Wishlist

Compare

Estimated Delivery

Arrives

Disclaimer

View Markdown

Secure checkout

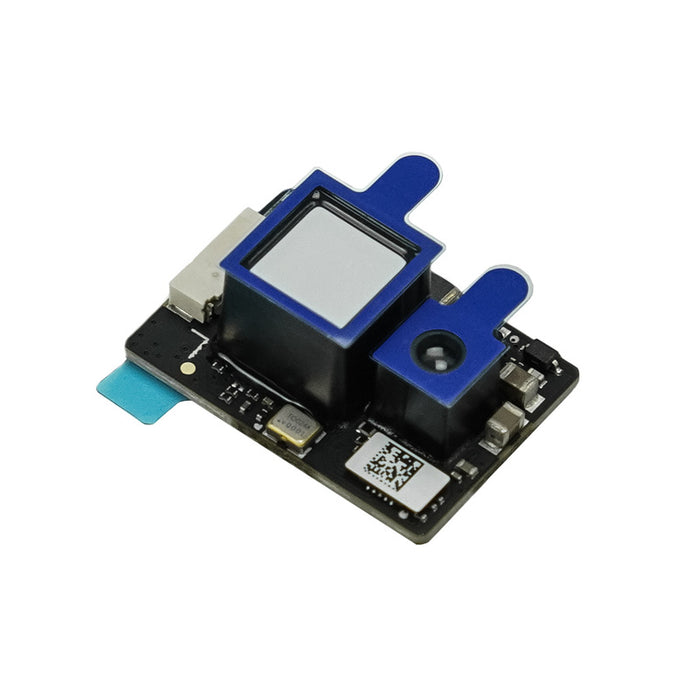

The Benewake TFS20-L is an ultra-compact ToF LiDAR sensor weighing just 1.35g. With 20m range, centimetre-level accuracy, and 100K LUX sunlight resistance, it's designed for drones, robots, and space-constrained applications where weight matters.

Key Features

Ultra-Lightweight – Only 1.35g, smaller than a thumbnail (21×15×7.87mm)
20m Range – Precise distance measurement with ±6cm accuracy
250Hz Refresh Rate – Configurable up to 250Hz for real-time applications
100K LUX Resistant – Stable outdoor operation in direct sunlight
I2C & UART – Flexible interface options for any microcontroller
Class 1 Eye-Safe – 905nm VCSEL laser, certified EN60825

Ideal For

UAV altitude hold and terrain following
Drone assisted landing systems
Robot anti-drop and edge detection
High-speed obstacle avoidance for AGVs
Presence detection and interactive installations

Specifications

Range – 0.2–20m (@90% reflectivity, 0 LUX) / 0.2–15m (@90%, 100K LUX)
Accuracy – ±6cm (0.2–6m); 1% (≥6m)
Resolution – 1cm
Frame Rate – 0 / 20 / 50 / 100 (default) / 250Hz
FOV – <2°
Supply Voltage – 3.3V DC (±9%)
Power – ≤0.43W average, <130mA peak
Interface – I2C / UART (3.3V LVTTL)
Operating Temp – -20°C to +60°C
Dimensions – 21 × 15 × 7.87mm
Weight – 1.35g

Package Contents

1× TFS20-L ToF LiDAR Sensor
1× 0.8mm to 2.54mm Dupont Cable (20cm)
1× 0.8mm to 0.8mm Cable (8cm)

Jargon buster

Plain-language definitions for the technical terms used above.

DC: DC means direct current, where electricity flows in one constant direction, as supplied by batteries, USB ports and many plug-pack power supplies. When a product specifies DC, it runs from a DC supply rather than mains AC, so you need to provide the correct voltage and polarity.
I2C: I2C is a two-wire communication bus used by many sensors and small modules. It matters because several I2C devices can share the same two wires, but each device needs a compatible address and your controller must support I2C.
LiDAR: A sensing method that uses laser light to measure distance and build a 3D picture of the surroundings. It matters for robotics and autonomous systems because LiDAR data can help with mapping, navigation and obstacle detection.
lux: Lux is the standard unit for measuring how much light falls on a surface, similar to how a light meter reports brightness. A sensor that outputs lux gives readings that are easier to compare between rooms, outdoor conditions, and different projects.
microcontroller: A microcontroller is a small computer on a single chip that runs a stored program and controls connected inputs and outputs such as buttons, sensors, displays and communication interfaces. In a device built around one, it is the part that executes the code and coordinates the device's behaviour.
UART: UART is a simple asynchronous serial interface that sends data over separate transmit and receive wires, usually labelled TX and RX, with both ends set to the same baud rate. It is a common way for microcontrollers and other serial devices to exchange data.
UAV: UAV stands for Unmanned Aerial Vehicle, an aircraft that flies without an onboard pilot, such as a drone or autonomous aircraft. Because airborne platforms have limited payload, factors like weight, power draw and any positioning features such as GNSS or RTK are often important considerations.
