Straight Male Header - Gold Plated, PTH, 0.1in, 24-Pin
· MPN: PRT-28382
This is a single-row strip of straight male breakaway header pins, useful for adding standard through-hole connections to development boards and maker projec...
Get notified when back in stock

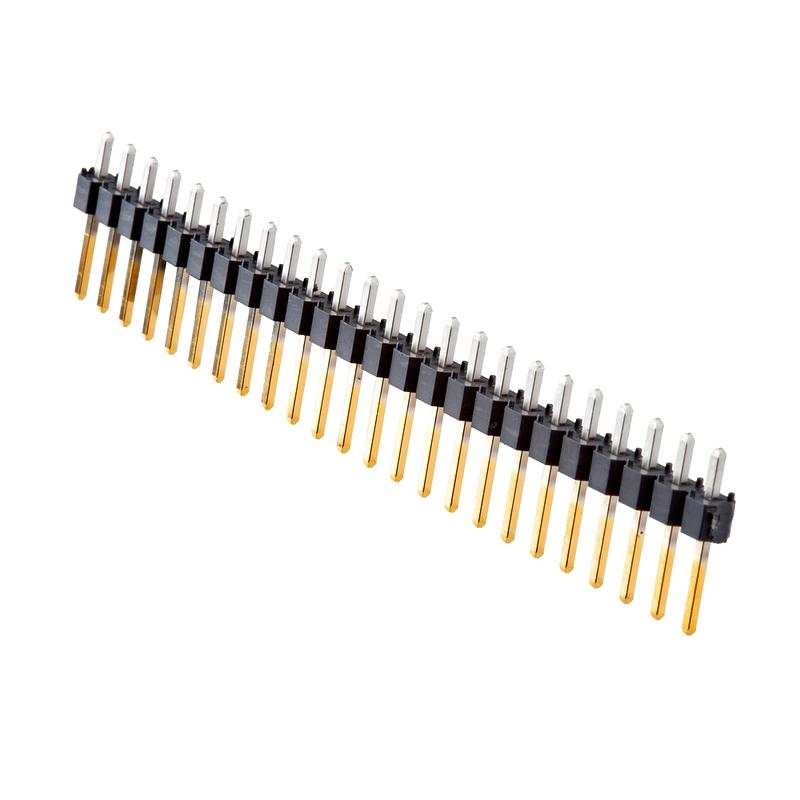

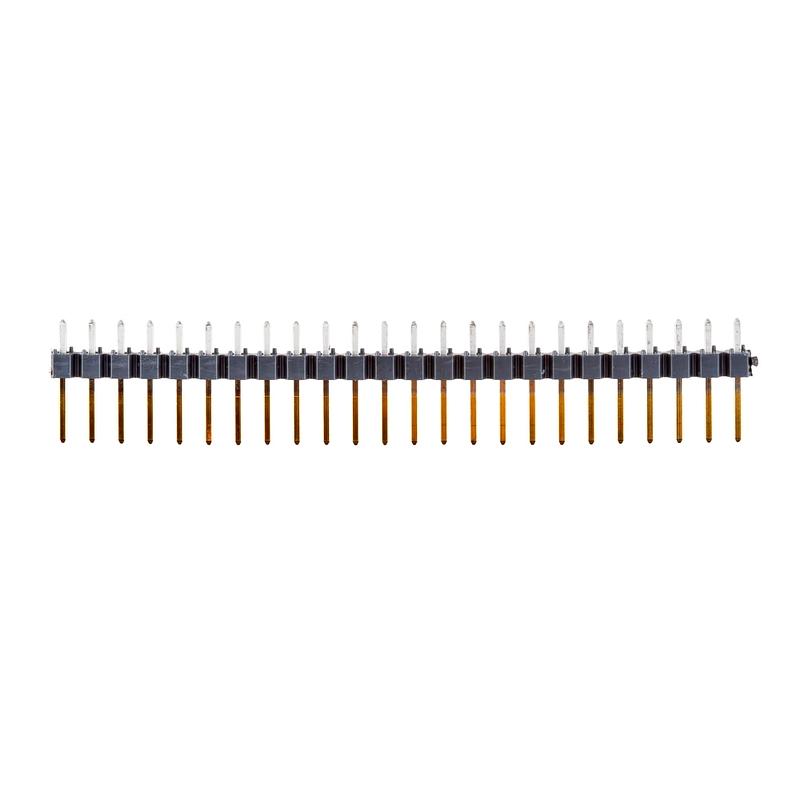

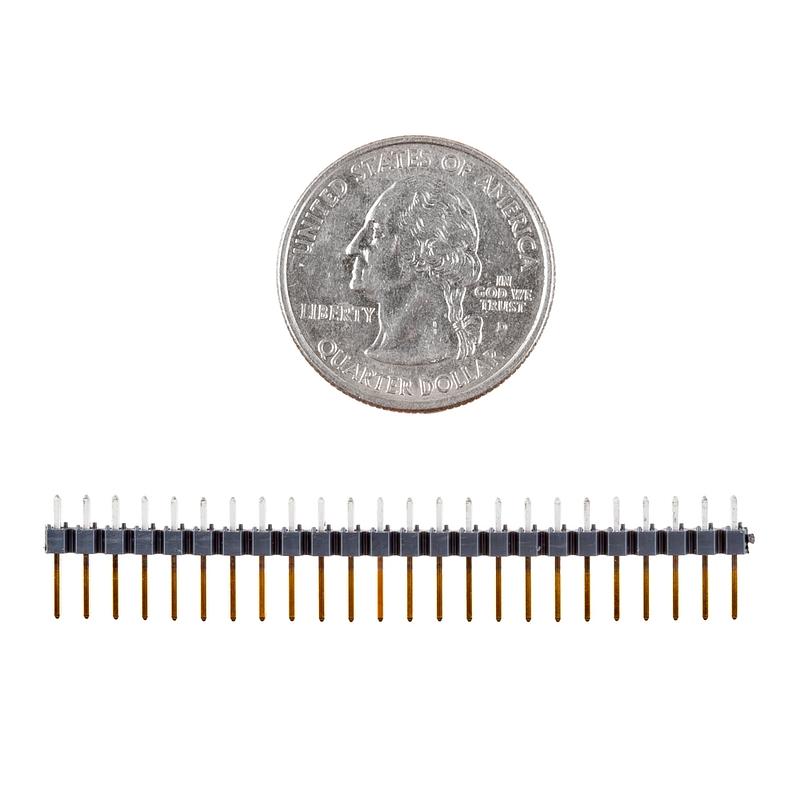

This is a single-row strip of straight male breakaway header pins, useful for adding standard through-hole connections to development boards and maker projects.
The header uses standard 0.1" (2.54mm) spacing and comes in a 24x1 format. This size is normally used with Teensy 3.5, Teensy 3.6 or Teensy 4.1 boards.
For those Teensy boards, two header strips are required, with one fitted to each side of the board. The pins feature 15µ" gold plating for a high-quality contact surface.
Specifications:
- Header type: Straight male
- Pin count: 24-pin
- Row format: Single row
- Size: 24x1
- Pitch: 0.1" (2.54mm)
- Mounting style: PTH
- Plating: 15µ" gold plating
- Typical compatibility: Teensy 3.5, Teensy 3.6 or Teensy 4.1
- Quantity required for typical Teensy use: Two, one for each side of the board
Jargon buster
Plain-language definitions for the technical terms used above.
- PTH
- Plated through-hole means the pin holes are metal-lined so solder connects the pad on both sides of the board. It is useful for connectors and headers that need a strong mechanical and electrical connection.
- through-hole
- A mounting style where the component leads pass through holes in a circuit board and are soldered on the other side. Through-hole parts are often easier to handle and solder by hand, which is useful for classroom and hobby projects.
