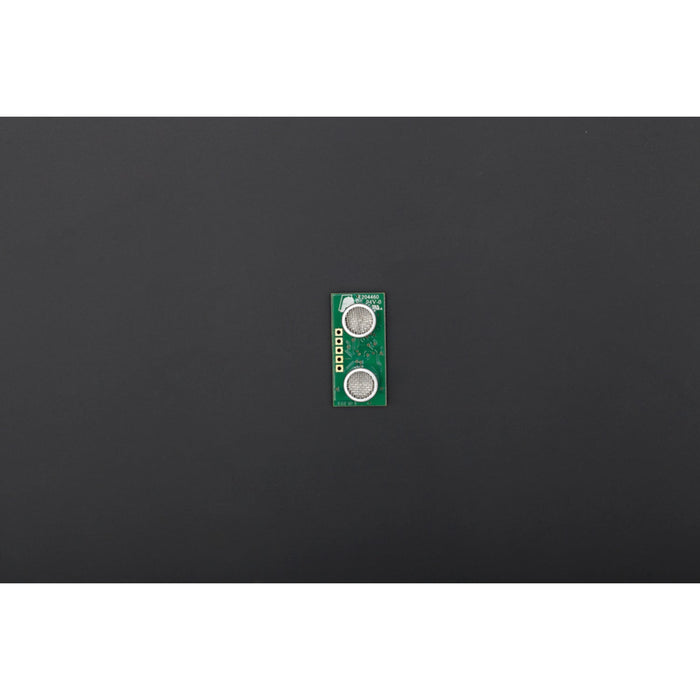

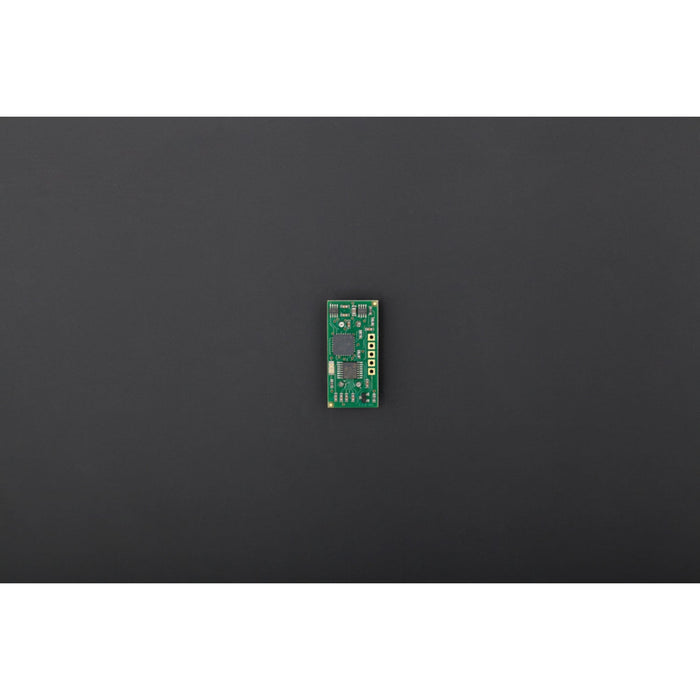

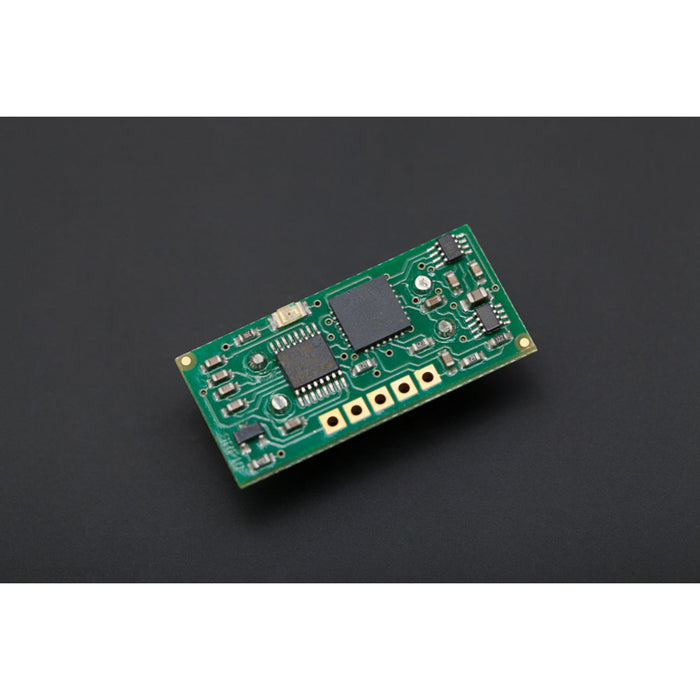

SRF10 - The Worlds Smallest Dual Transducer Ultrasonic Ranger

$81.93

Part Number:  DF-SEN0008
Brand:  DFRobot Australia

Introduction This small sonar ranger from Devantech offers an amazing wide range from 3cm to 6m. The SRF10 is interfaced using the IIC bus.     Specification     Voltage-5v Current-15mA Typ. 3mA Standby Frequency-40KHz Maximum Range-6 m Minimum Range-3 cm Max Analogue Gain-Variable 40 to 700 in 16 steps Connection-Standard IIC Bus Timing-Fully timed echo, freeing host computer of task Units-Range reported in uS,...
We can dispatch today: - units (delivered by -)
We can dispatch in - days: - units (delivered by -)
Introduction

This small sonar ranger from Devantech offers an amazing wide range from 3cm to 6m. The SRF10 is interfaced using the IIC bus.






Specification




  • Voltage-5v
  • Current-15mA Typ. 3mA Standby
  • Frequency-40KHz
  • Maximum Range-6 m
  • Minimum Range-3 cm
  • Max Analogue Gain-Variable 40 to 700 in 16 steps
  • Connection-Standard IIC Bus
  • Timing-Fully timed echo, freeing host computer of task
  • Units-Range reported in uS, mm or inches
  • Size -1.25in w x 0.59in d x 0.39in h (32mm w x 15mm d x 10mm h)

Documents
Shipping List
  • SRF10 ultrasonic sensor x1
