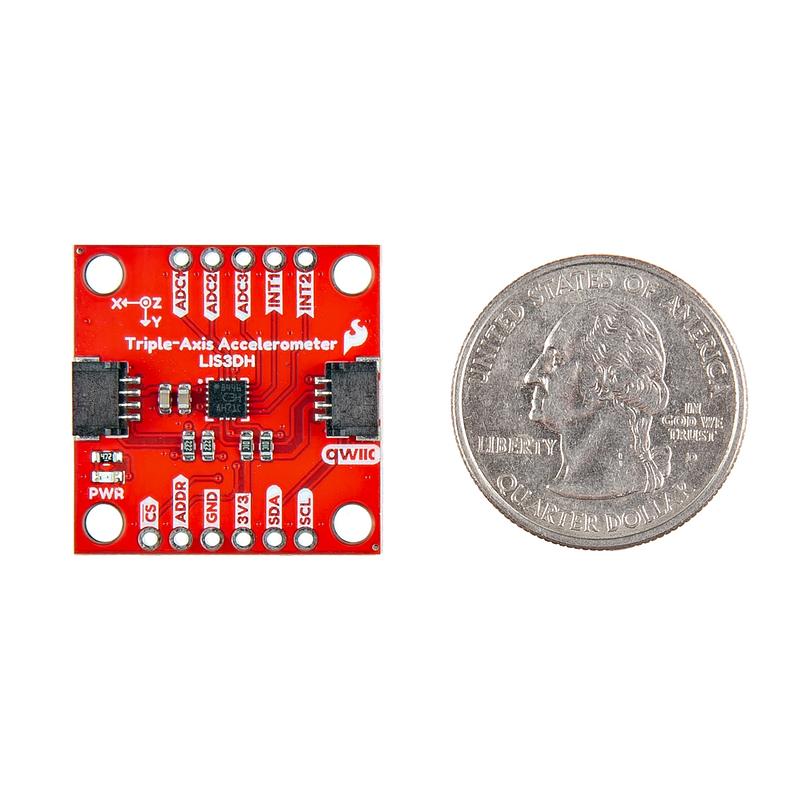

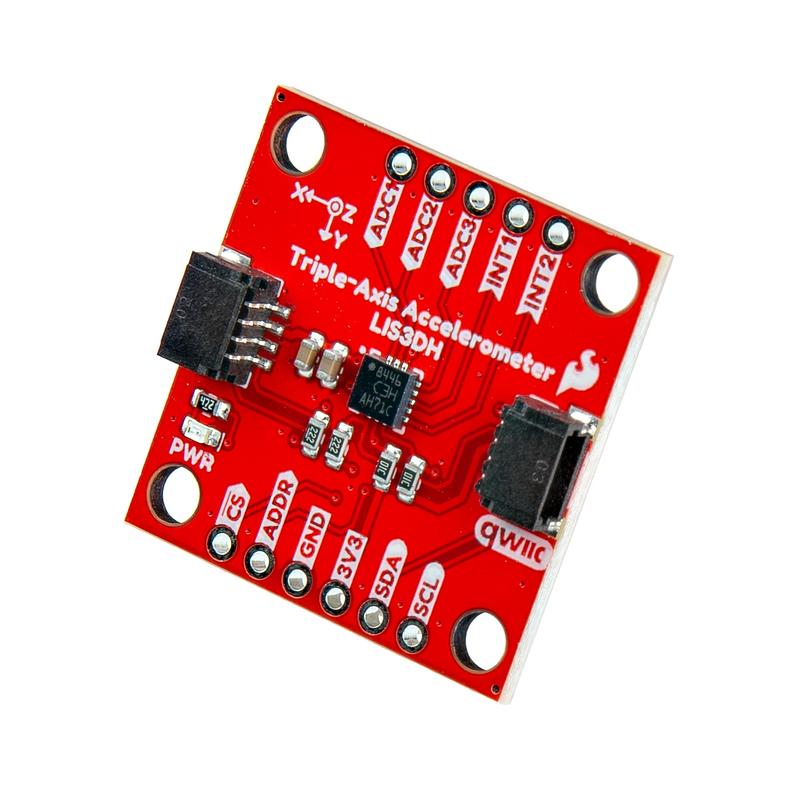

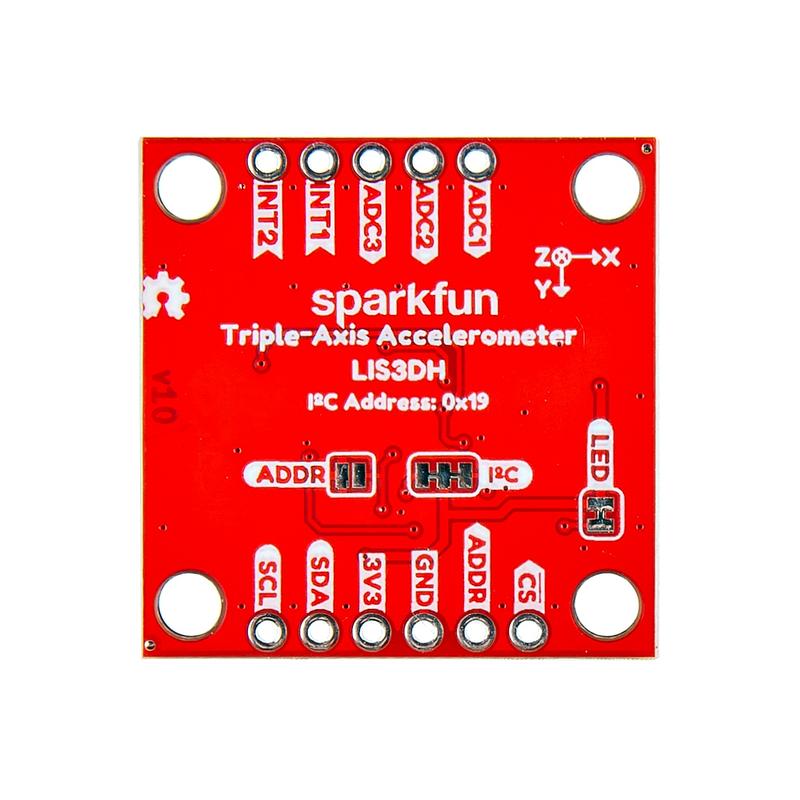

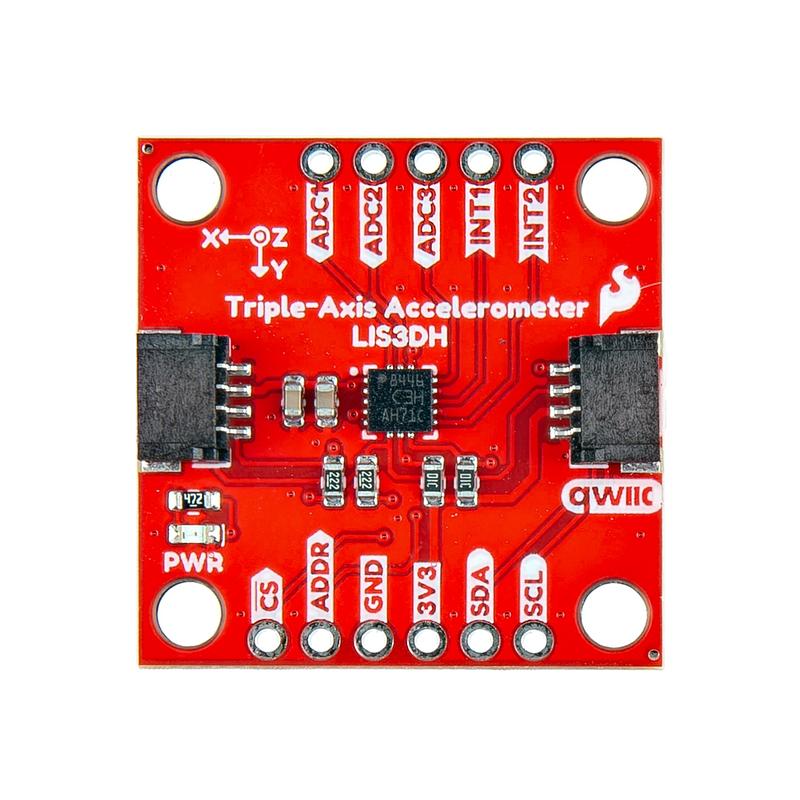

LIS3DH Triple Axis Accelerometer Breakout (Qwiic)

Jargon buster

Plain-language definitions for the technical terms used above.

12-bit resolution

12-bit resolution means a value is represented with 12 binary digits, giving 4096 possible levels. For a sensor, analogue-to-digital converter or similar device, higher resolution divides the measured range into finer steps so smaller changes can be distinguished, provided the device's range and noise allow it.

3DoF

3DoF stands for "three degrees of freedom", meaning a sensor or system measures motion along three independent axes. Those three may be linear movement (X, Y and Z, as with a 3-axis accelerometer) or rotation (pitch, roll and yaw), so check which sense is meant; a 6DoF device measures both linear and rotational motion.

breakout

A breakout board carries a small or fine-pitched component and brings its connections out to standard, breadboard- and header-friendly pins. Describing a part as a breakout means it can be wired into a project without soldering directly to the component's tiny contacts.

FIFO

FIFO stands for "first in, first out", a way of handling stored items so the oldest one is read out first, like a queue. In electronics a FIFO is usually a small buffer that temporarily holds data, such as sensor samples or serial bytes, so a processor can collect it in batches instead of reading continuously.

I2C

I2C is a two-wire communication bus used by many sensors and small modules. It matters because several I2C devices can share the same two wires, but each device needs a compatible address and your controller must support I2C.

LIS3DH

A specific low-power 3-axis accelerometer chip made by STMicroelectronics. Knowing the chip part number helps you find the correct datasheet, libraries, wiring details, and limits such as its safe voltage range.

Motion detection

The ability to sense that something has moved, either by comparing successive camera frames or by using a dedicated sensor such as a PIR (infrared) or radar module. When a product lists motion detection, movement can be used as a trigger so a system only acts or records when there is activity rather than running continuously.

Qwiic

Qwiic is a plug-in connector system for I2C devices that uses small 4-pin cables, so you can connect compatible sensors without soldering. It matters because your controller or adapter also needs Qwiic, or you will need a cable or breakout to wire it up.

SPI

A fast serial communication bus often used for displays, memory cards, and sensors. It matters because SPI devices need specific pins for clock and data, plus a separate chip-select line for each device.
