SparkFun SOIC to DIP Adapter - 8-Pin
The SparkFun 8-Pin SOIC to DIP Adapter is a small PCB that lets you adapt SOIC packages into a DIP footprint. These tiny boards are useful for modding and...
Get notified when back in stock

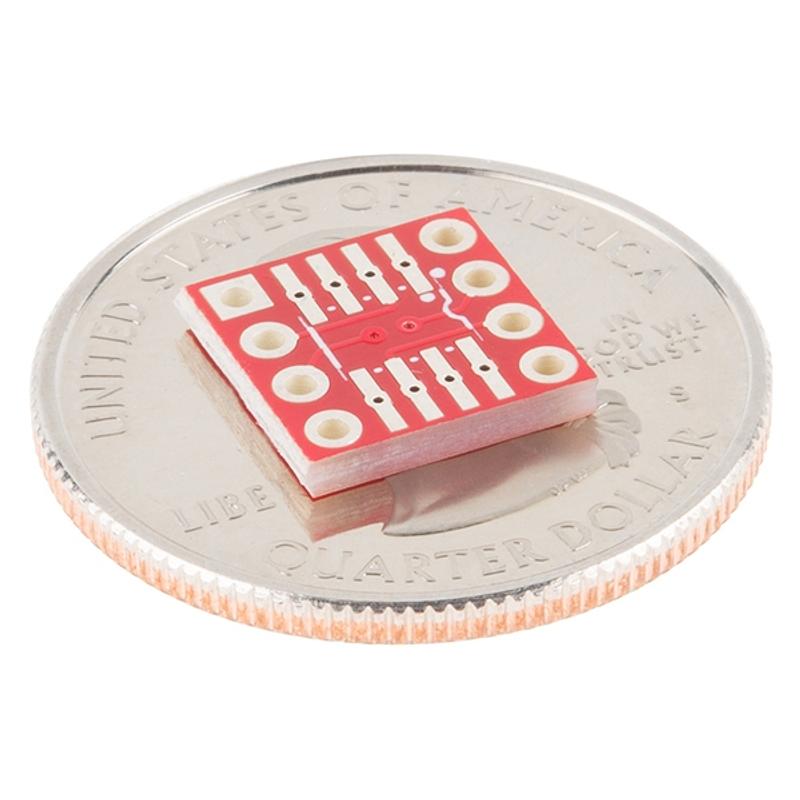

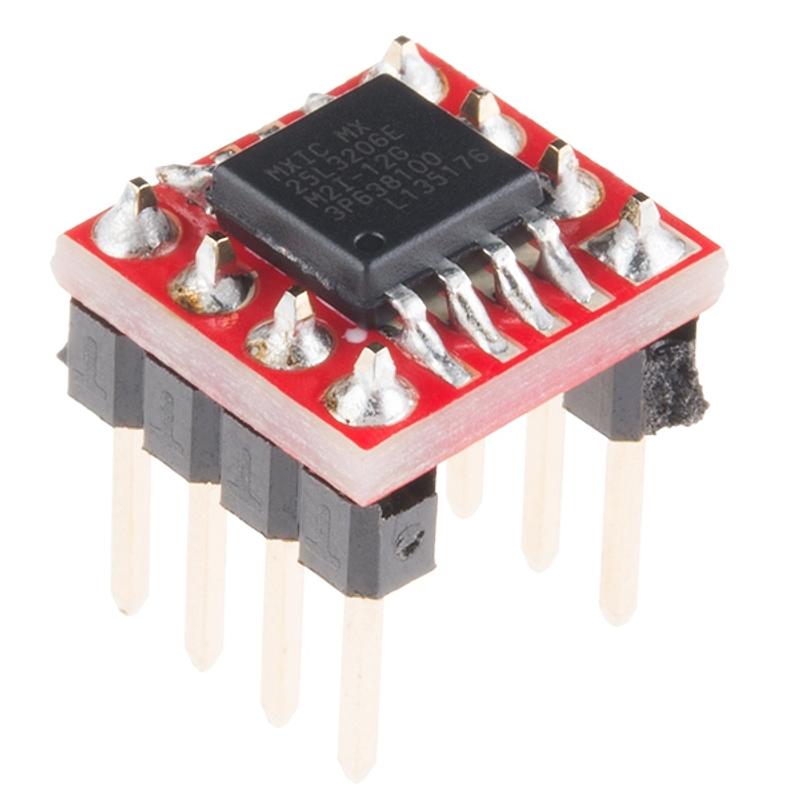

The SparkFun 8-Pin SOIC to DIP Adapter is a small PCB that lets you adapt SOIC packages into a DIP footprint. These tiny boards are useful for modding and upgrading devices that use 8-pin DIP ICs, when the upgraded IC is only available in a SOIC footprint. You can also use these adapters for prototyping by making SOIC packages compatible with solderless breadboards.

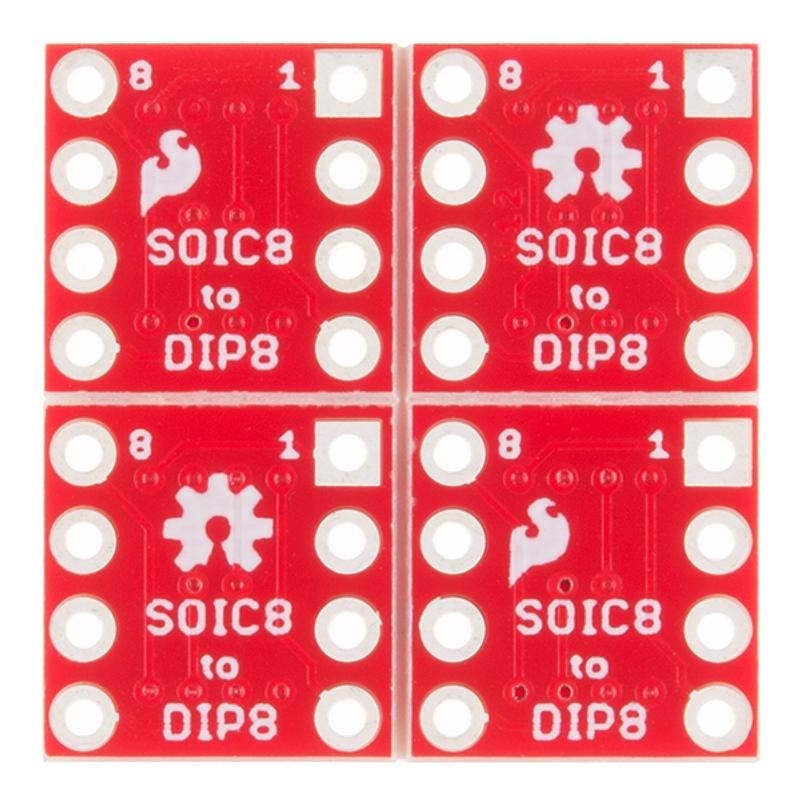

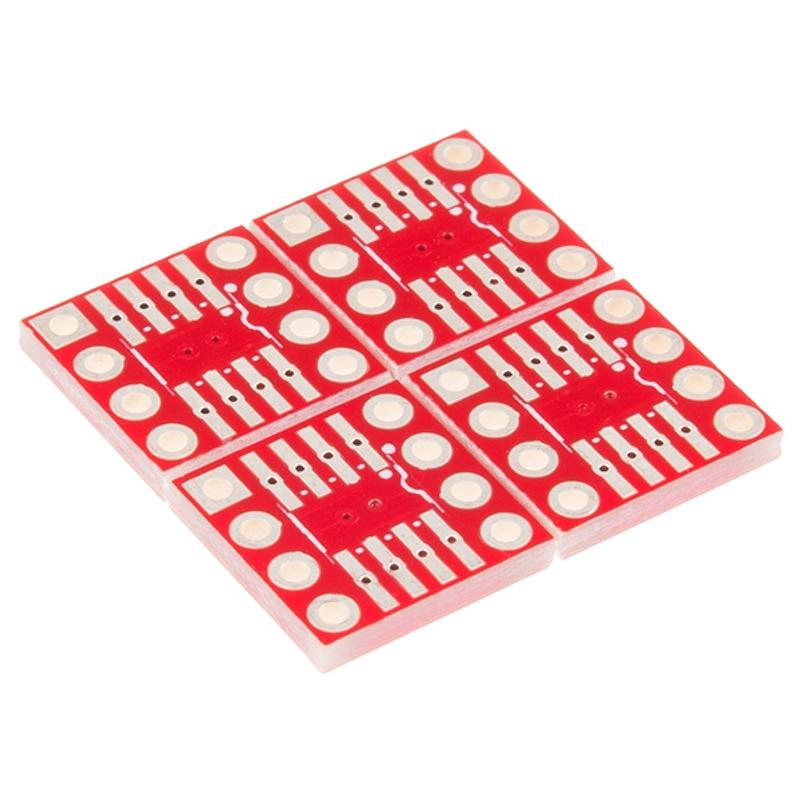

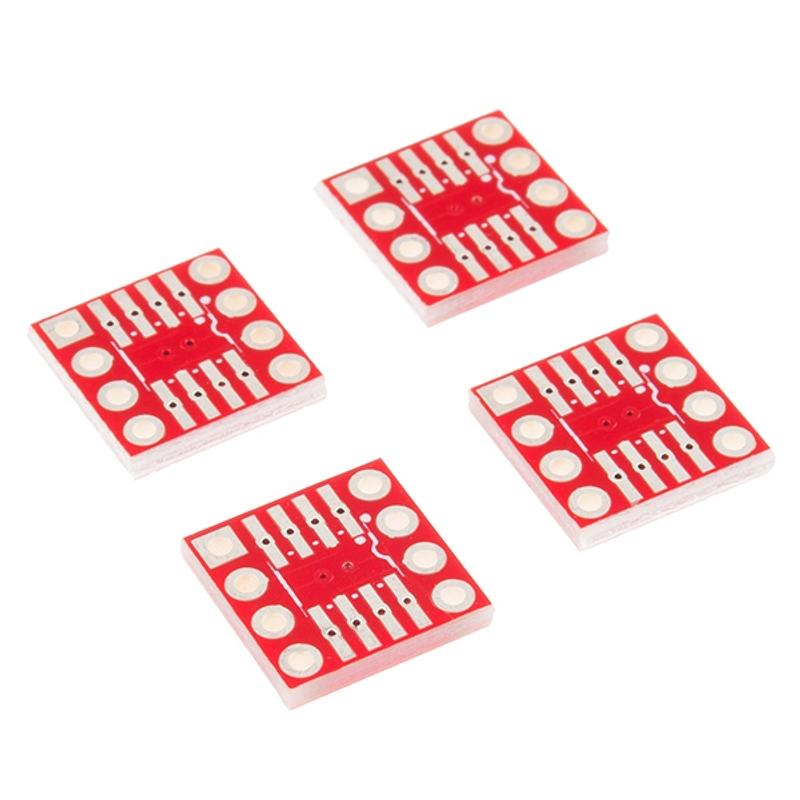

This version of the SparkFun SOIC to DIP Adapter adapter comes as a small array of four boards. We did this because if you’re adapting one chip, you are more than likely to adapt another. The PCBs easily snap apart from each other, thanks to two crossing v-scored lines.
Documents:
- Schematic
- Eagle Files
- Hookup Guide
- GitHub (Designs Files)
Jargon buster
Plain-language definitions for the technical terms used above.
- PCB
- A printed circuit board (PCB) is a board, usually rigid, with etched copper tracks that connect electronic components together without loose wiring. Components are mounted on the board and signals route between them through the copper layout.
Find this product in
Brands
Prototyping & Wiring
SOIC to DIP Adapter 8-Pin Schematic
Schematic · 38.5 KB · Click any page to view full size
Supplier page — sparkfun.com
Supplier Description · 611.0 KB · Click any page to view full size
Resources & Downloads
Guides, code examples, and more
Source Code
Open-source libraries, firmware & example projects for this product
d66a734
almost 11 years ago
· 15 commits
- Documentation Adding files for annotated board & footprint dimensions almost 11 years ago
- Hardware Fixing merge error. about 11 years ago
- .gitattributes Initial hardware file commit over 11 years ago
- .gitignore Initial hardware file commit over 11 years ago
- LICENSE.md Updating README, adding LICENSE file almost 11 years ago
- README.md Updating README, adding LICENSE file almost 11 years ago
