SparkFun Snappable Protoboard

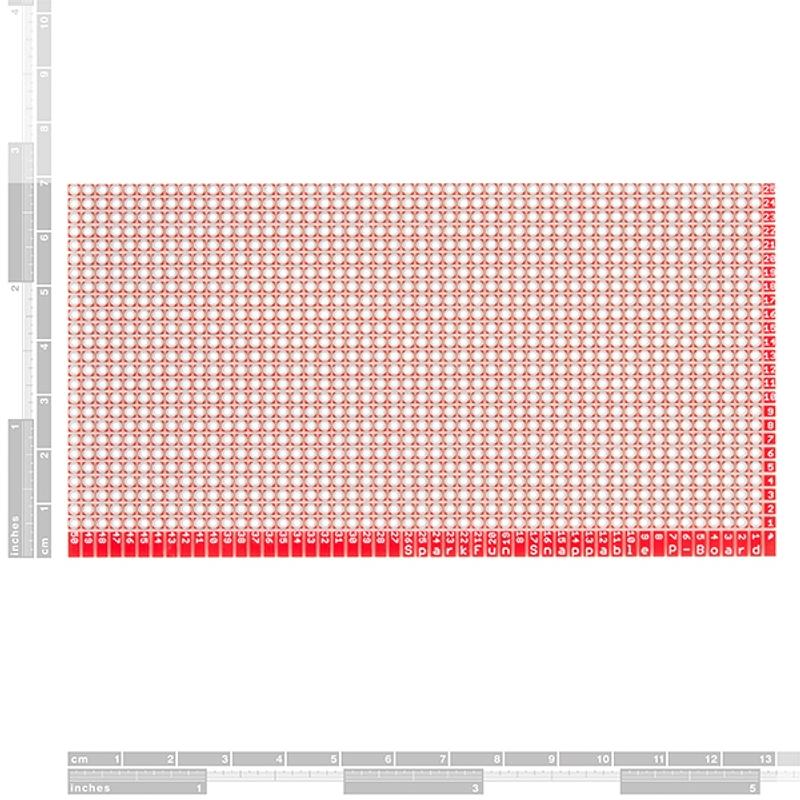

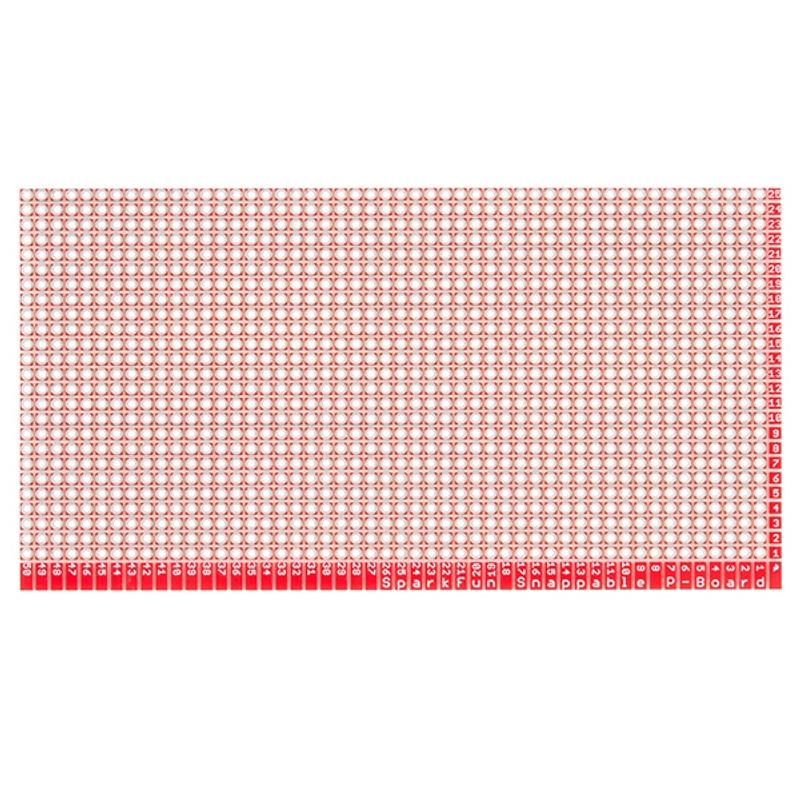

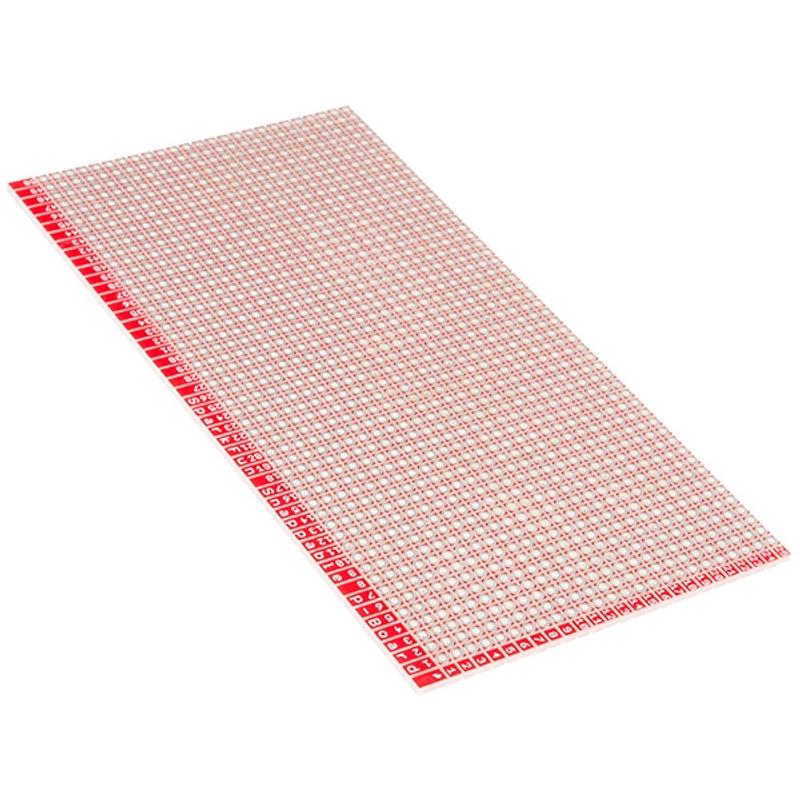

A large prototyping PCB with v-scored lines that let you snap it to any custom size. The 50 × 25 solder point array provides up to 1250 plated through-hole (...
Get notified when back in stock
A large prototyping PCB with v-scored lines that let you snap it to any custom size. The 50 × 25 solder point array provides up to 1250 plated through-hole (PTH) pins on a 2.54 mm (0.1″) pitch grid. Simply snap along the scored lines to create the exact board dimensions your project requires.
Key Features
- V-Scored Snap Lines – Break apart to any size within the 50 × 25 grid
- 1250 Solder Points – Plated through-hole on 2.54 mm (0.1″) pitch
- Customisable Sizes – From 2 × 2 up to the full 50 × 25 array
- Multiple Boards – One panel yields as many protoboards as you need
Ideal For
- Custom-sized prototyping boards
- Permanent soldered circuits
- Projects requiring non-standard board dimensions
