SparkFun MP3 Player Shield

$39.60

Part Number:  SF-DEV-10628
Brand:  SparkFun Australia

This new revision of the SparkFun MP3 player shield retains the awesome MP3 decoding abilities of the last version but adds the storage functionality of the SD card shield. Now you can pull MP3 files from an microSD card and play them using only one shield, effectively turning any Arduino into a fully functional stand-alone MP3 player! The MP3 Shield still utilizes the VS1053B MP3...
We can dispatch today: - units (delivered by -)
We can dispatch in - days: - units (delivered by -)

This new revision of the SparkFun MP3 player shield retains the awesome MP3 decoding abilities of the last version but adds the storage functionality of the SD card shield. Now you can pull MP3 files from an microSD card and play them using only one shield, effectively turning any Arduino into a fully functional stand-alone MP3 player! The MP3 Shield still utilizes the VS1053B MP3 audio decoder IC to decode audio files. The VS1053 is also capable of decoding Ogg Vorbis/MP3/AAC/WMA/MIDI audio and encoding IMA ADPCM and user-loadable Ogg Vorbis.

The VS1053 receives its input bitstream through a serial input bus (SPI). After the stream has been decoded by the IC, the audio is sent out to both a 3.5mm stereo headphone jack, as well as a 2-pin 0.1" pitch header.

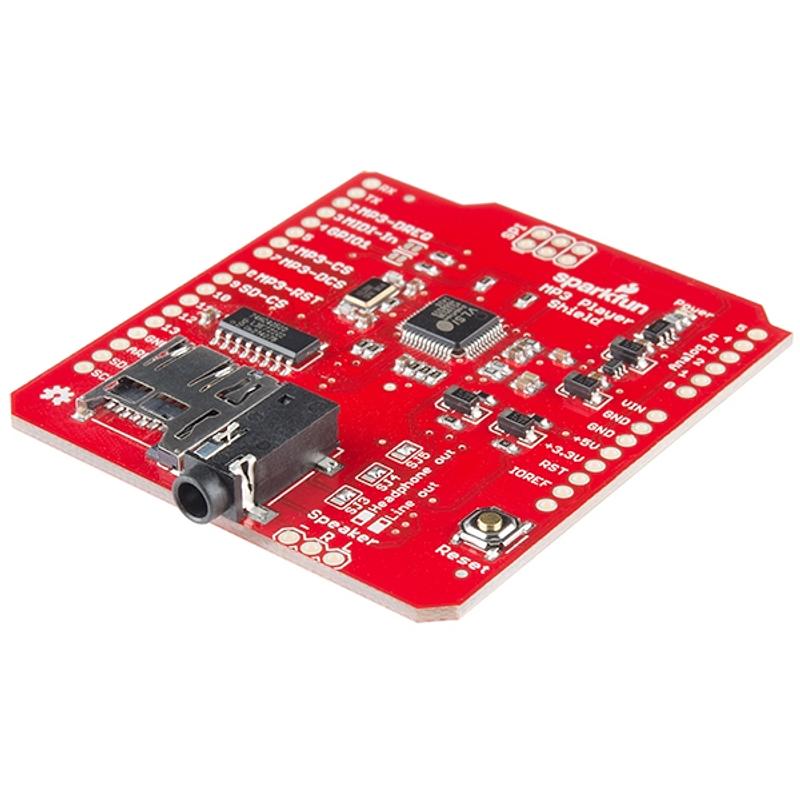

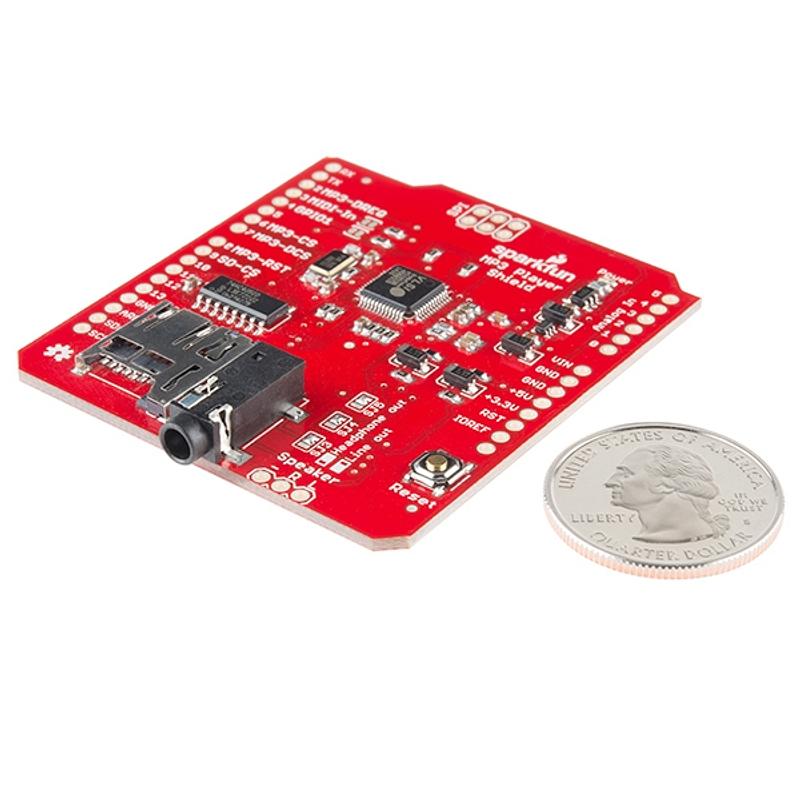

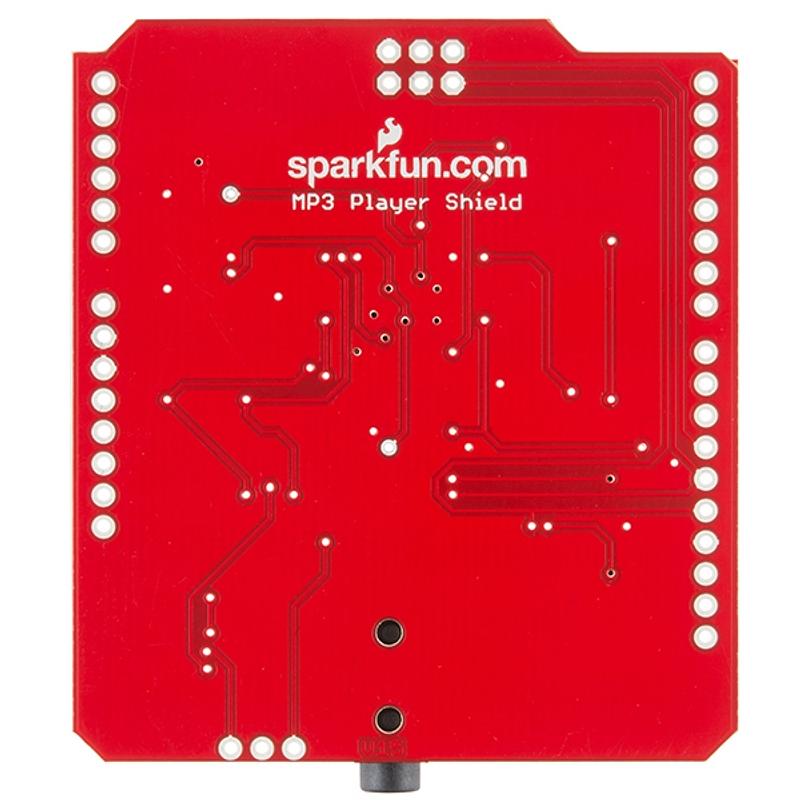

This shield comes populated with all components as shown in the images and schematic; but it does not come with headers installed. We recommend the 6 and 8-pin stackable headers.

Note: Please refer to the Line Out document below for important information regarding connecting this shield directly to an amplifier.

Features:

  • 3.5mm audio out jack
  • 0.1" spaced header for speaker out
  • microSD card slot

Documents:

Checkout the great MP3 Player library that Bill created (and fixed some of our programming bugs!). Bill, we owe you a beer.
