SparkFun IR Thermometer Evaluation Board - MLX90614
102 units will be available shortly.

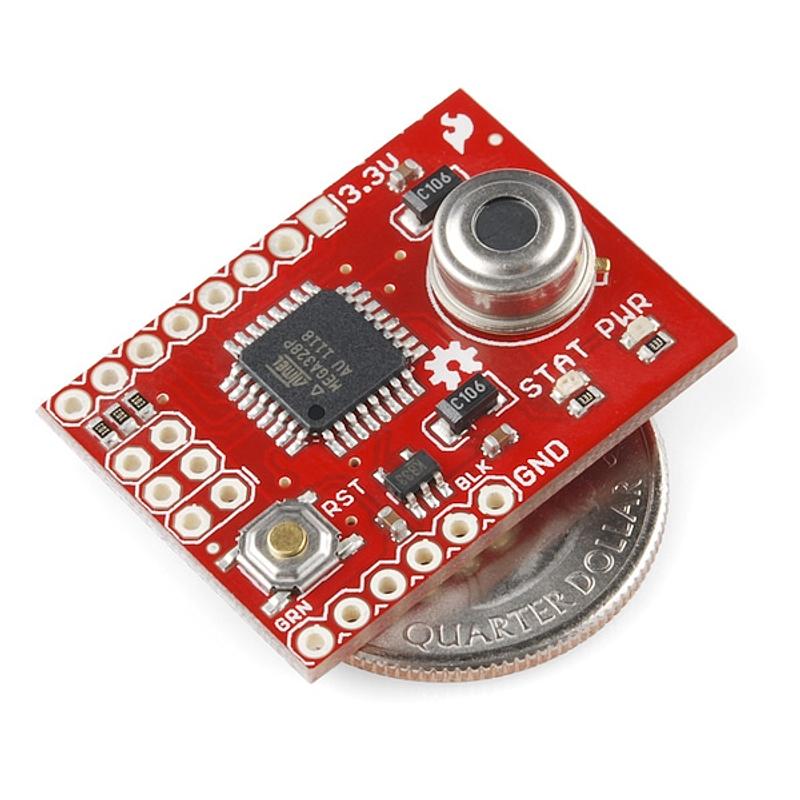

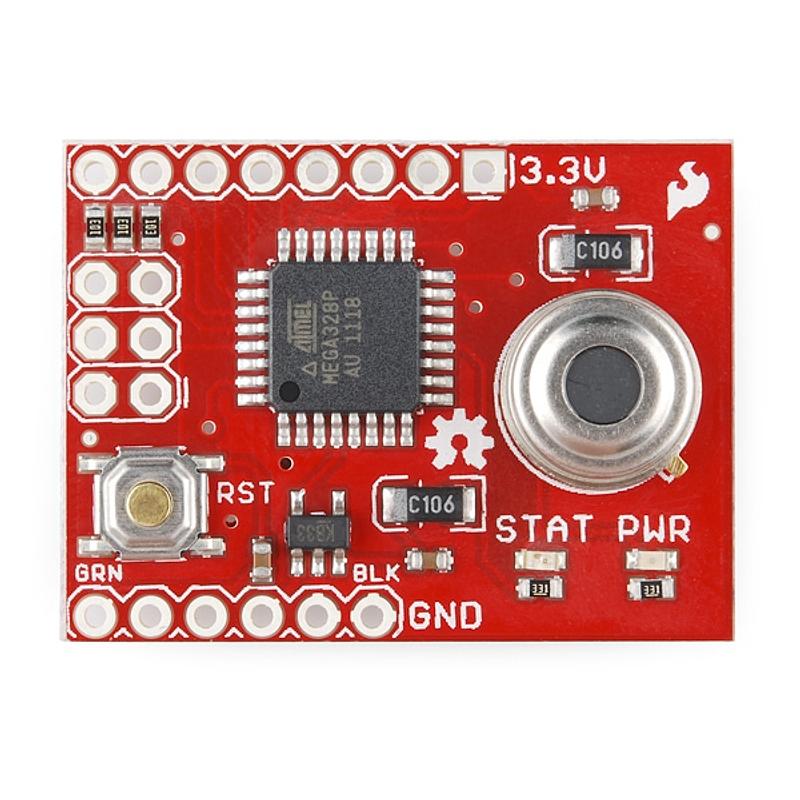

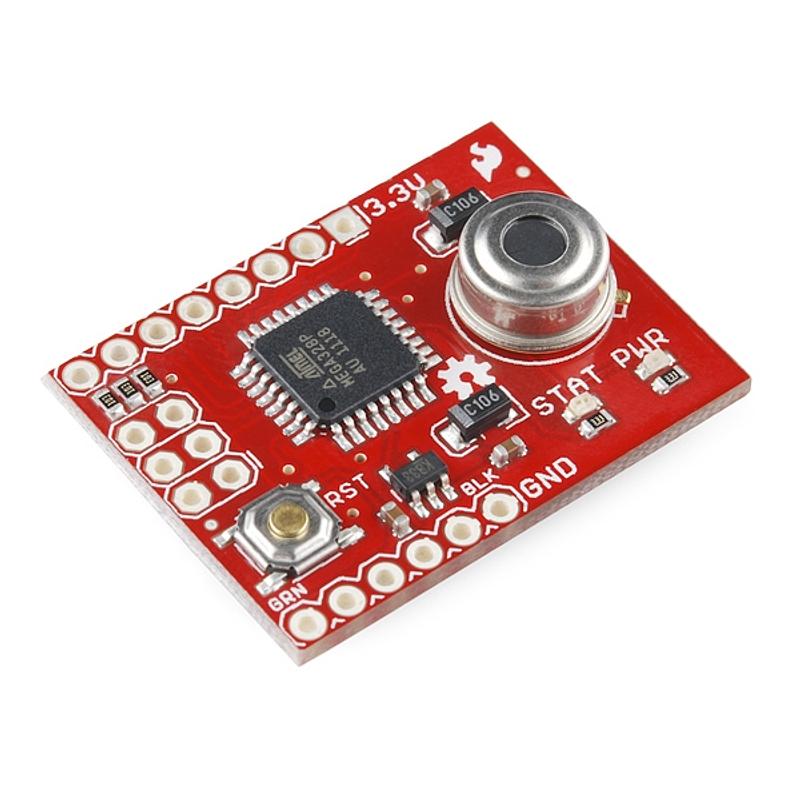

This is an evaluation board for the MLX90614 IR Thermometer. The sensor is connected to an ATmega328 running at 3.3V with a STK500 (Arduino) 8MHz bootloader. Code can be loaded through the FTDI basic interface and the Arduino environment.
The MLX9061 sensor is a high precision, small size, single zone IR thermometer with an optional SMBus (two-wire) or PWM interface. The ATMega328 comes with demo code that gives a temperature readout in degrees F at 38400bps. You can use a 3.3V FTDI Basic to connect to the board.
This revision corrects the silkscreen error on the FTDI header. We’ve also added pull-up resistors to the I2C lines.
Features:
- ATMega328 w/ 8MHz STK500 (Arduino) bootloader
- MLX90614 IR sensor, 3V version
- Power and status LEDs
Documents:
- Schematic
- Eagle Files
- Hookup Guide
- Datasheet (MLX90614)
- GitHub
