Solenoid - 36v
$62.15
|
In stock
A linear push-type solenoid rated for 36 V DC that also works well at 12 V. Solenoids produce linear motion for pushing, pulling, or actuating switches and l...
Get notified when back in stock
Estimated Delivery
Arrives
Order now — ships Tue 4 Aug
Disclaimer
Secure checkout

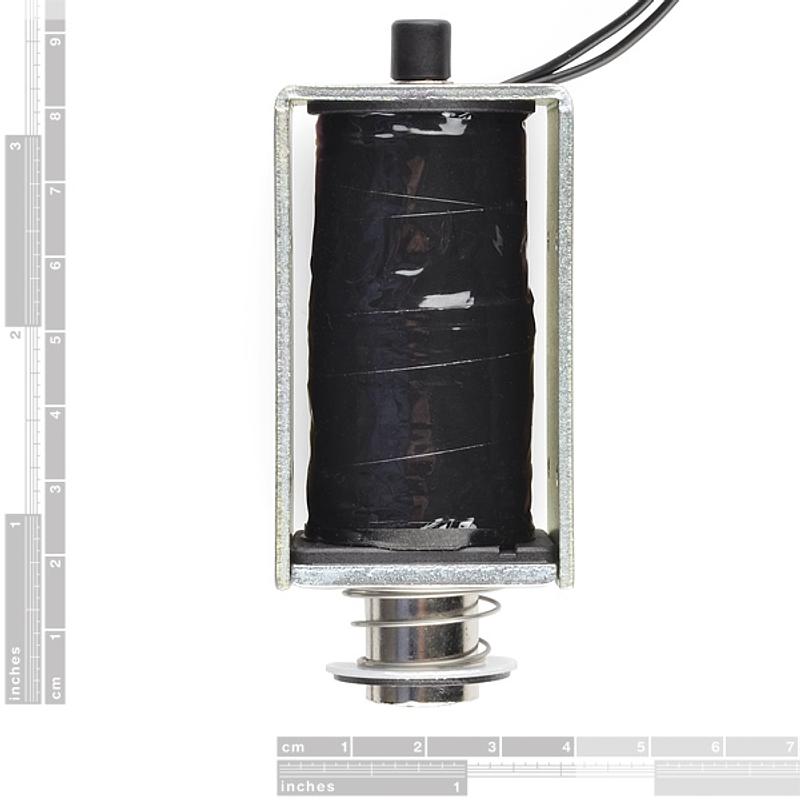

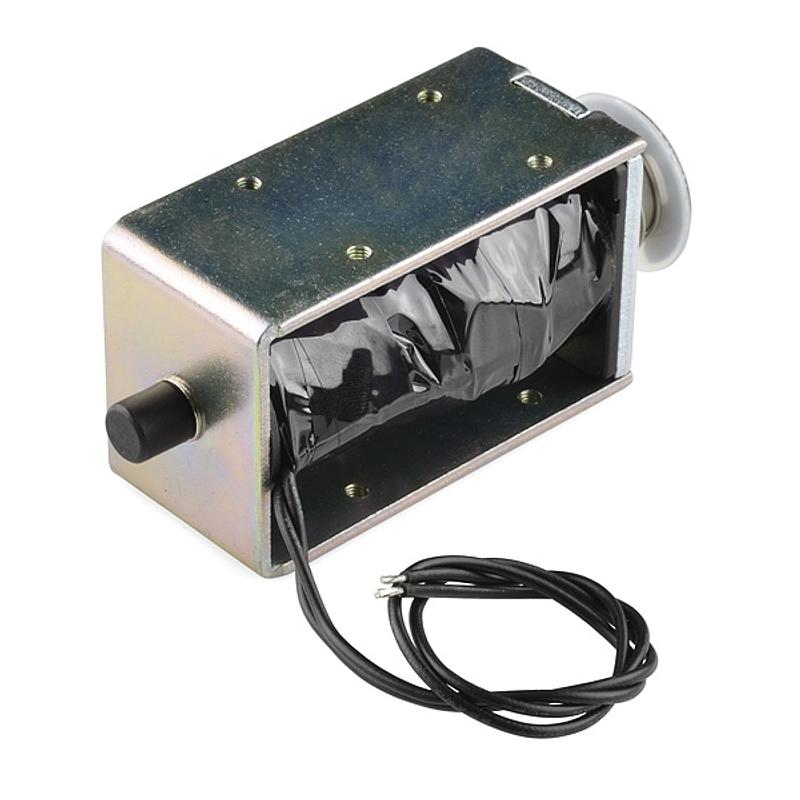

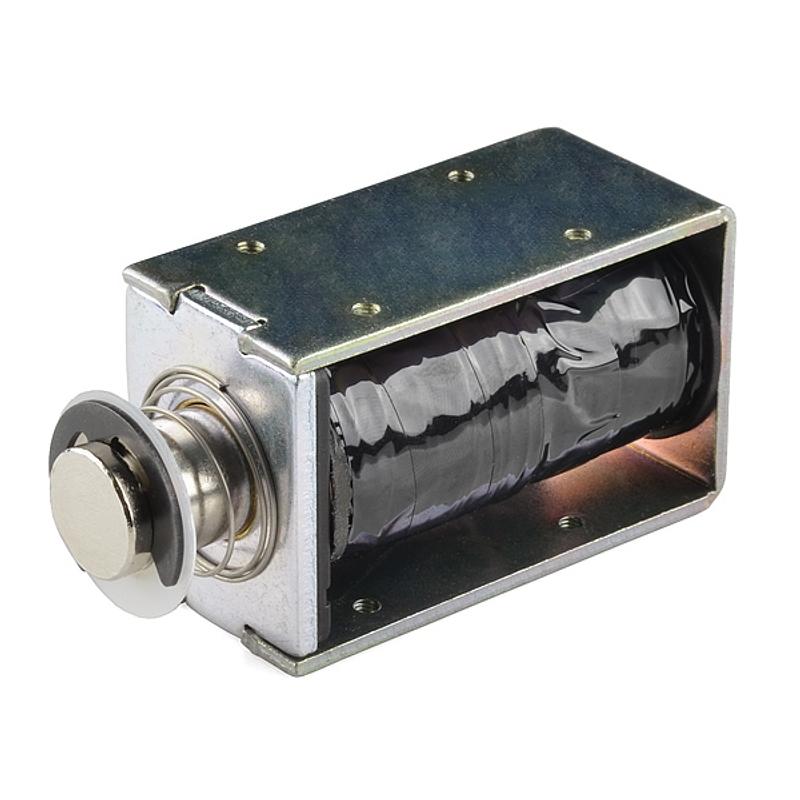

A linear push-type solenoid rated for 36 V DC that also works well at 12 V. Solenoids produce linear motion for pushing, pulling, or actuating switches and levers. This unit has a measured throw of approximately 10 mm.
Key Features
- Linear Push Solenoid – For push, pull, and actuation applications
- 36 V DC Rated – Also operates reliably at 12 V
- ~10 mm Throw – Measured stroke length
Specifications
- Rated Voltage – 36 V DC
- Current Draw at 12 V – 650 mA
- Current Draw at 36 V – 1.85 A
- Throw – ~10 mm (measured; datasheet indicates 25 mm)
Ideal For
- Door latch actuation
- Automated percussion instruments
- Robotics and mechanical automation
- Arduino-controlled motion projects
Package Contents
- 1× Solenoid (36 V)
Resources
Jargon buster
Plain-language definitions for the technical terms used above.
- DC
- DC means direct current, where electricity flows in one constant direction, as supplied by batteries, USB ports and many plug-pack power supplies. When a product specifies DC, it runs from a DC supply rather than mains AC, so you need to provide the correct voltage and polarity.
