Servo - Generic High Torque Continuous Rotation (Standard Size)
Here, for all your mechatronic needs, is a simple, high quality continuous continuous rotation servo motor. This servo is able to take in 6 volts and deliver...
Here, for all your mechatronic needs, is a simple, high quality continuous continuous rotation servo motor. This servo is able to take in 6 volts and deliver 66.7 oz-in. of maximum torque at 70 r/min.

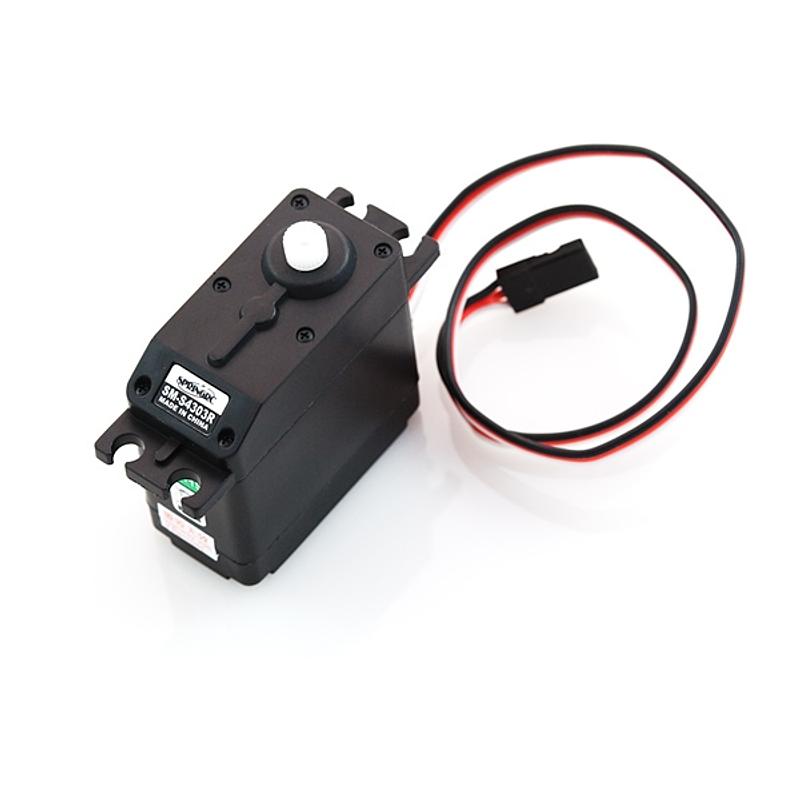

A standard 3-pin power and control cable is attached and all hardware listed below is included.
Features:
- Voltage: 4.8-6.0 Volts
- Torque: 45.8/66.7 oz-in. (4.8/6.0V)
- Speed: 60/70 r/min (4.8/6.0V)
- Rotation: 360°
- Dual Ball Bearing
- 4 Plastic Gears + 1 Metal Gear
- 25T Spline
- Rest point adjustment
Includes:

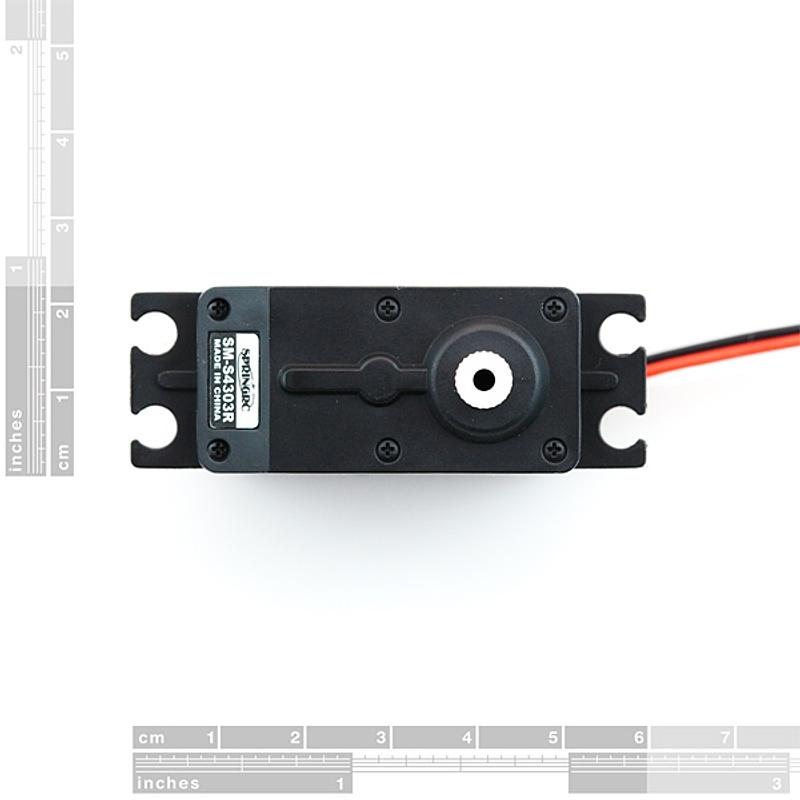

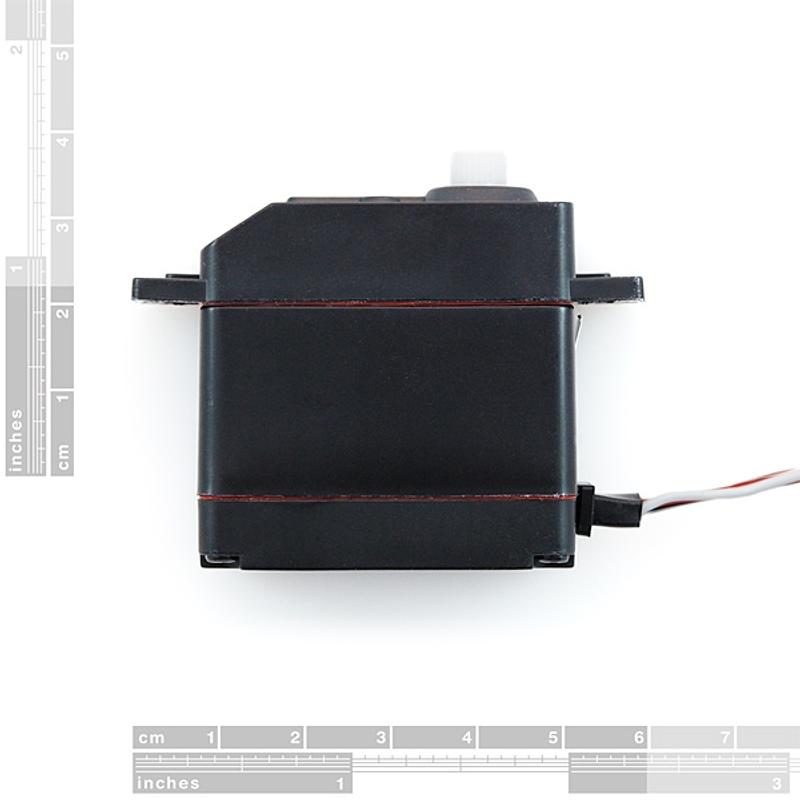

- 1x SM-S4303R High Torque Continuous Rotation Servo
- 1x Mounting Screw
- 1x Four Point Horn
- 1x Six Point Horn
- 2x Double Arm Horn (1x Large, 1x Medium)
- 2x Circle Horn (1x Large, 1x Medium)
- 4x Rubber Grommets
- 4x 2x15mm Phillips Screw
- 4x Brass Eyelets

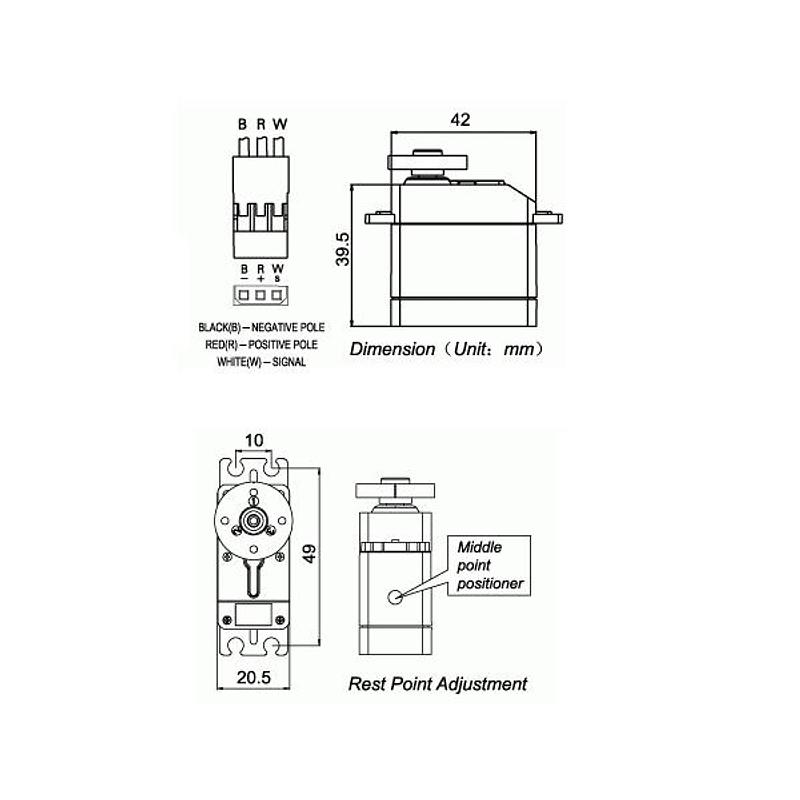

Dimensions:
- 42 x 39.5 x 22.5mm
- Wire length: 300mm
- Weight: 44g
Documents:
Jargon buster
Plain-language definitions for the technical terms used above.
- servo
- A servo is a motor with built-in position control, usually told to move to a specific angle by a control signal. It matters when you need repeatable movement, such as steering, arms, flaps, or linkages, rather than continuous spinning.
- servo motor
- A motor module that moves to a commanded angle rather than simply spinning freely. It matters for robotics and mechanisms because it is useful for steering, arms, gates and other parts that need controlled position.
- Torque
- A twisting force that causes something to rotate, usually measured in newton-metres or kilogram-centimetres. It matters when choosing motors, servos, gears, and tools because higher torque is needed to lift heavier loads, turn larger wheels, or move mechanisms without stalling.
