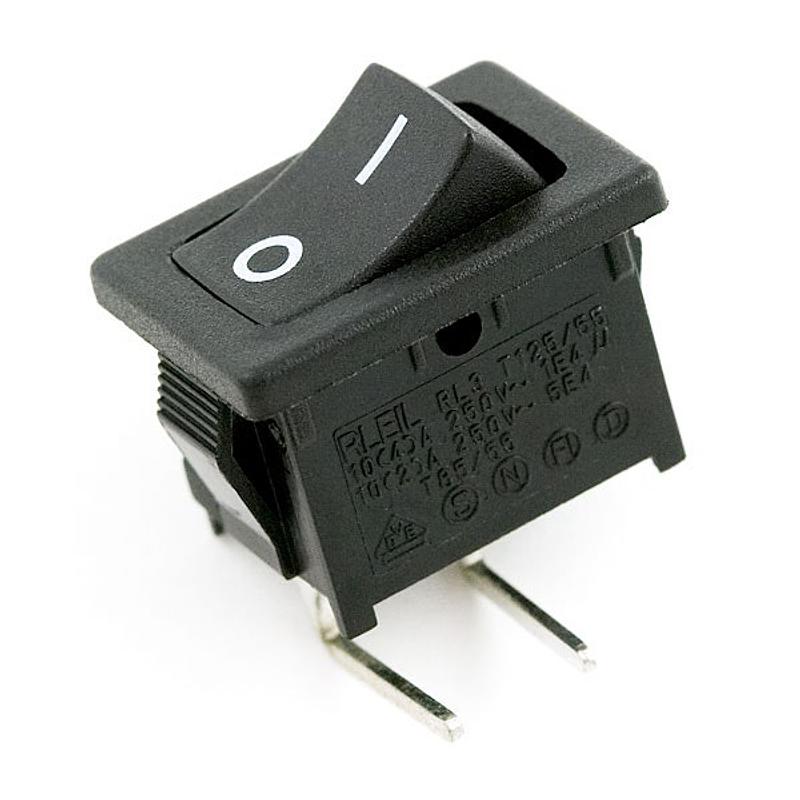

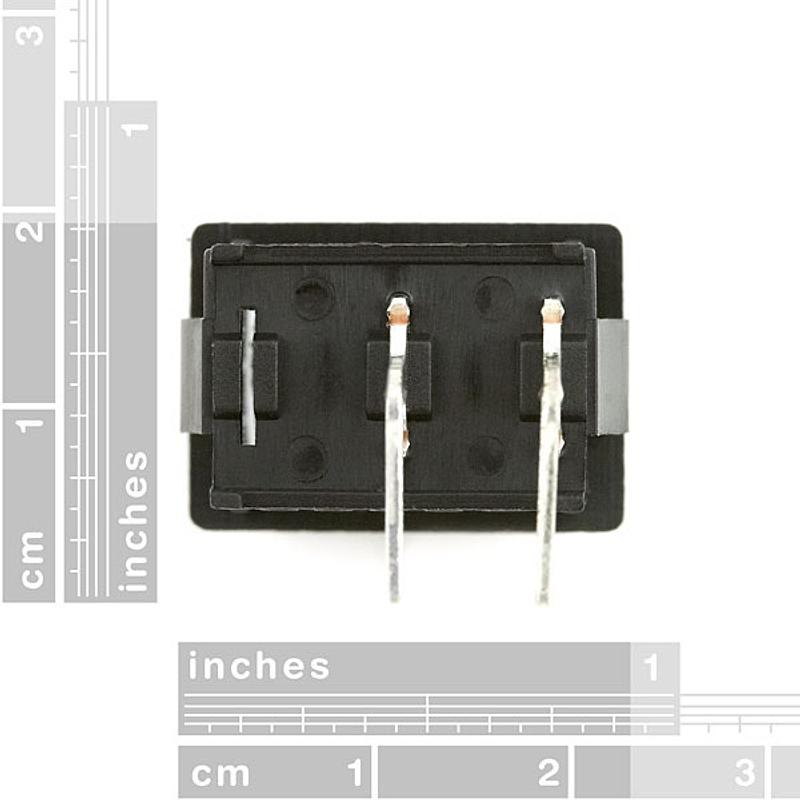

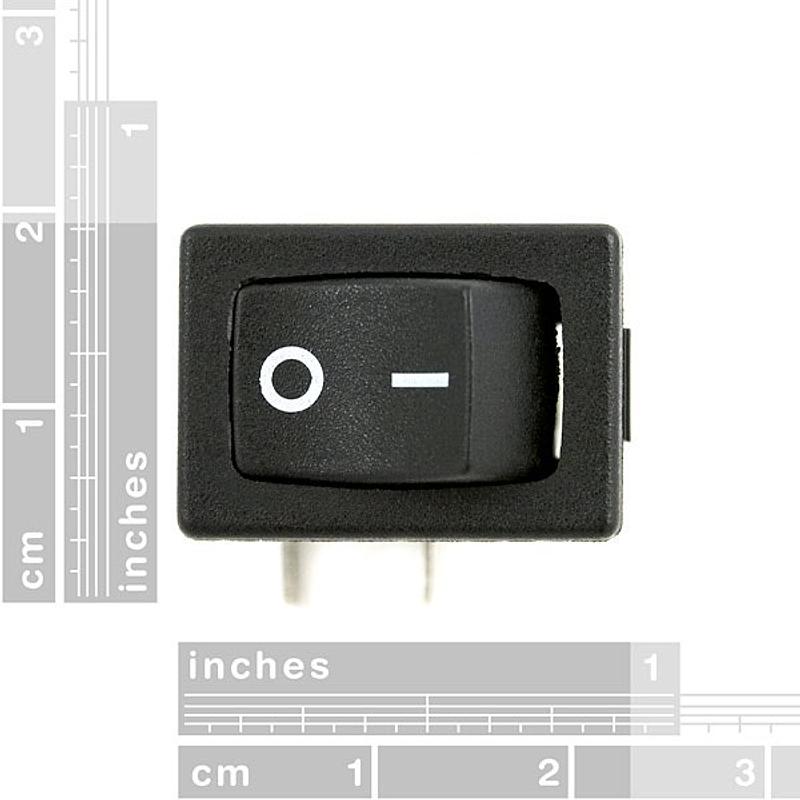

Rocker Switch - SPST (right-angle)
Your project will probably need an on/off switch. If you plan to house the project in an enclosure, we found this great rocker switch to help you out. RoH...
Get notified when back in stock
Your project will probably need an on/off switch. If you plan to house the project in an enclosure, we found this great rocker switch to help you out. RoHS and UL approved.
Features:
- Right angle solid through-hole mounting
- Can also be snap-in panel mounted
- Rated up to 15A @ 125V
Documents:
Jargon buster
Plain-language definitions for the technical terms used above.
- through-hole
- A mounting style where the component leads pass through holes in a circuit board and are soldered on the other side. Through-hole parts are often easier to handle and solder by hand, which is useful for classroom and hobby projects.
Find this product in
Brands
Components
Rocker Switch Right Angle Mechanical Drawing
Mechanical Drawings · 44.4 KB · Click any page to view full size
Supplier page — sparkfun.com
Supplier Description · 500.3 KB · Click any page to view full size
