Robotic Arm Air Pump Valve Controller Vacuum Suction Cup set
We have ✅ 30 available of the LB-LS7942 in our Sydney warehouse. An extra 100 units available with a short lead time.
Robot Arm Vacuum Pump & Valve Kit – PWM Electronic Switch Controller with Suction Cup (Arduino Compatible)
Take your robotics projects to the next level with this compact vacuum suction kit, designed for robotic arms, manipulators, and automation systems. Featuring a high-efficiency air pump, three-way electronic valve, and silicone suction cup assembly, this kit enables precise pick-and-place control using Arduino or other microcontrollers.
Ideal for DIY robotics, STEM education, and automation experiments, it supports PWM control for accurate vacuum switching and release.
🔧 Key Features
- Arduino Compatible – Easily integrate with servo control panels and microcontrollers
- PWM Control Support – Fine-tune suction and release timing
- Compact & Lightweight – Perfect for small robotic arms and manipulators
- Reliable Vacuum Performance – Strong suction for stable object handling
- Plug-and-Play Kit – Includes all essential components for quick setup
Vacuum Pump
- Rated Voltage: DC 4.5–6.6V
- No-load Current: 0.15A
- Pressure Range: 400–650 mmHg
- Maximum Vacuum: > -350 mmHg
- Weight: 65g
Three-Way Electronic Valve
- Rated Voltage: DC 6V
- Operating Voltage: DC 4.8–6.6V
- Power: 2W (220mA)
- Pressure Range: 0–350 mmHg
- Cable Length: 15cm
- Weight: 16g
Silicone Suction Cup Assembly
- Mounting Hole Diameter: 10mm
- Connecting Rod Length: 60mm
- Expansion Range: 18mm
- Suction Cup Diameter: 20mm
📦 Package Options

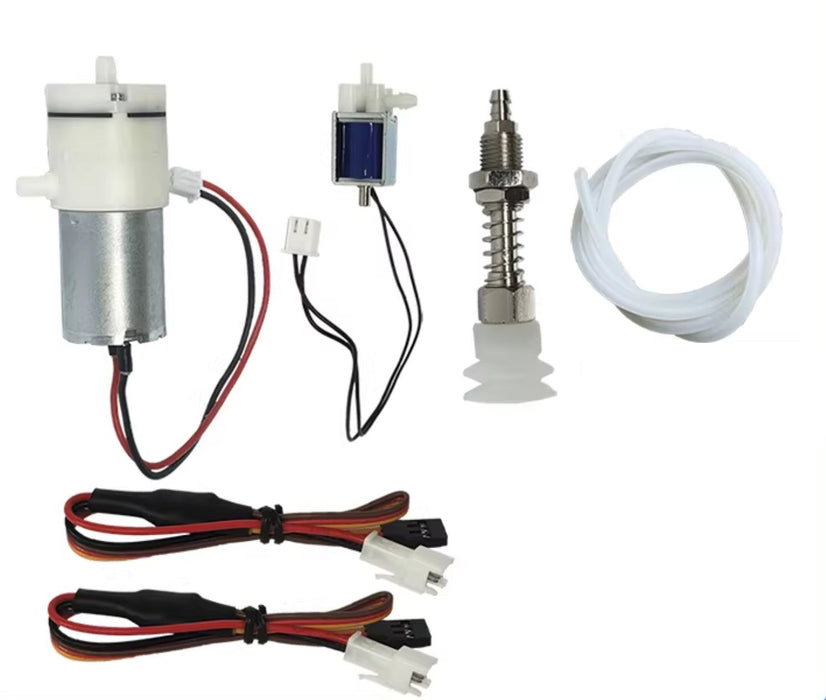

Package 1 Includes:
- Vacuum Air Pump ×1
- Three-Way Electronic Valve ×1
- Telescopic Connecting Rod with Suction Cup ×1
- Silicone Air Tube (800mm) ×1
The Robotic Arm Air Pump Valve Controller Vacuum Suction Cup set appears in the following collections:
SKU LB-LS7942
by Little Bird
