Right-Angle 6-Pin Male Header - PTH 0.1in
· MPN: PRT-30218
This 6-pin male header is a simple, reliable connector for linking components, boards or cables in electronics projects.The right-angle layout routes the pin...
Get notified when back in stock
This 6-pin male header is a simple, reliable connector for linking components, boards or cables in electronics projects.

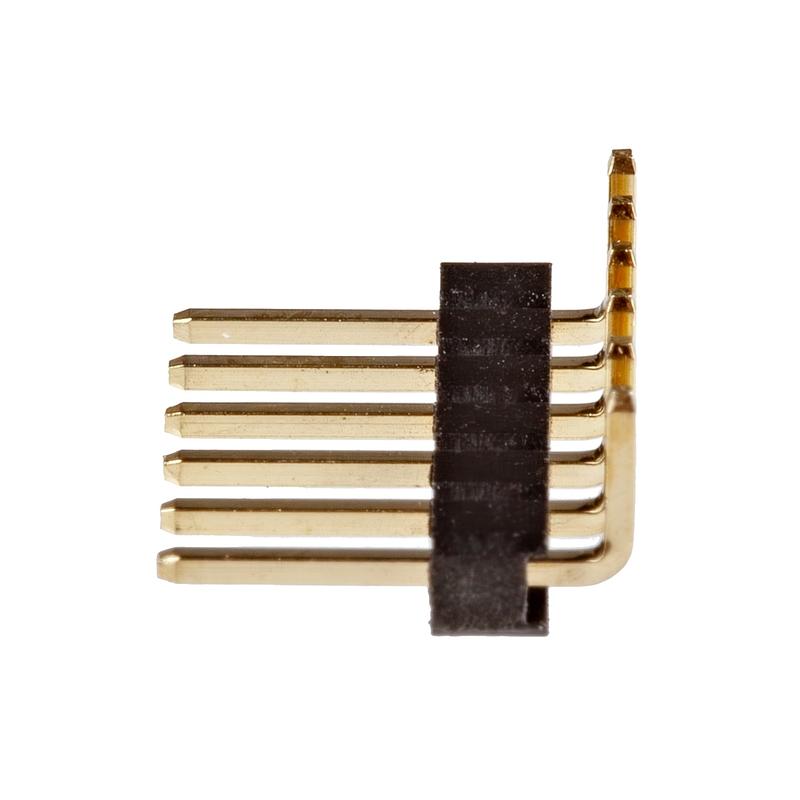

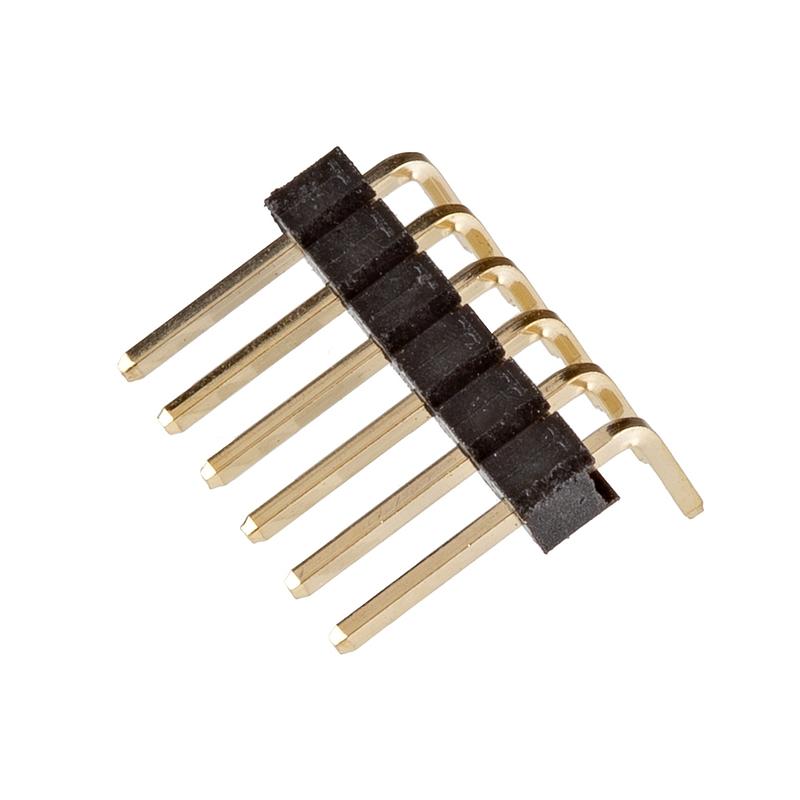

The right-angle layout routes the pins parallel to your PCB, making it useful for low-profile builds or for bringing connections out sideways instead of vertically.
With a single-row 1x6 format and standard 0.1" (2.54mm) pitch, it is compatible with breadboards, perfboards and standard connectors such as FTDI adapters.
Specifications:
- Pin Configuration: 1x6 (Single Row)
- Pitch (Spacing): 0.1" (2.54mm)
- Mounting Type: PTH (Plated Through-Hole)
- Gender: Male
- Orientation: Right-Angle (Pins parallel to the board)
