RFID Reader ID-3LA (125 kHz)

$40.96

Part Number:  SF-SEN-11862
Brand:  SparkFun Australia

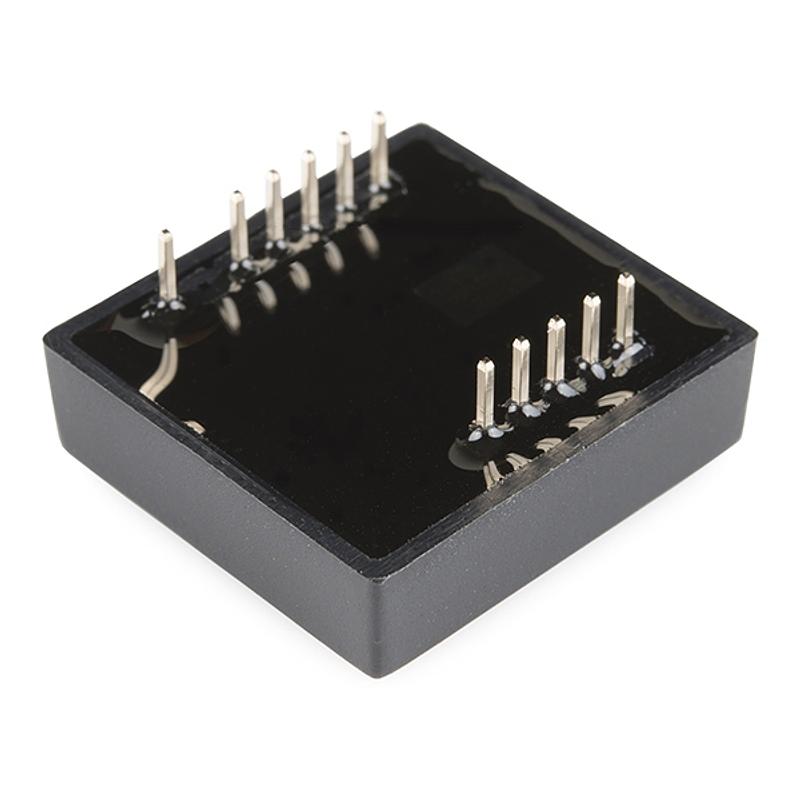

RFID (radio-frequency identification) is the wireless non-contact use of radio-frequency electromagnetic fields, for the purposes of identifying and tracking tags attached to objects. This is the ID-3LA, a very simple to use RFID reader module from ID Innovations. The only holdups are the 2mm pin spacing and you will need an external antenna. Power the module, hold up a 125kHz card, and get a serial...
We can dispatch today: - units (delivered by -)
We can dispatch in - days: - units (delivered by -)

RFID (radio-frequency identification) is the wireless non-contact use of radio-frequency electromagnetic fields, for the purposes of identifying and tracking tags attached to objects. This is the ID-3LA, a very simple to use RFID reader module from ID Innovations. The only holdups are the 2mm pin spacing and you will need an external antenna. Power the module, hold up a 125kHz card, and get a serial string output containing the unique ID of the card.

Note: The new ID-3LA is essentially the same as the ID-2, but has a lower voltage input.

Features:

  • 2.8~5V supply
  • 125kHz read frequency
  • EM4001 64-bit RFID tag compatible
  • 9600bps TTL and RS232 output
  • Magnetic stripe emulation output

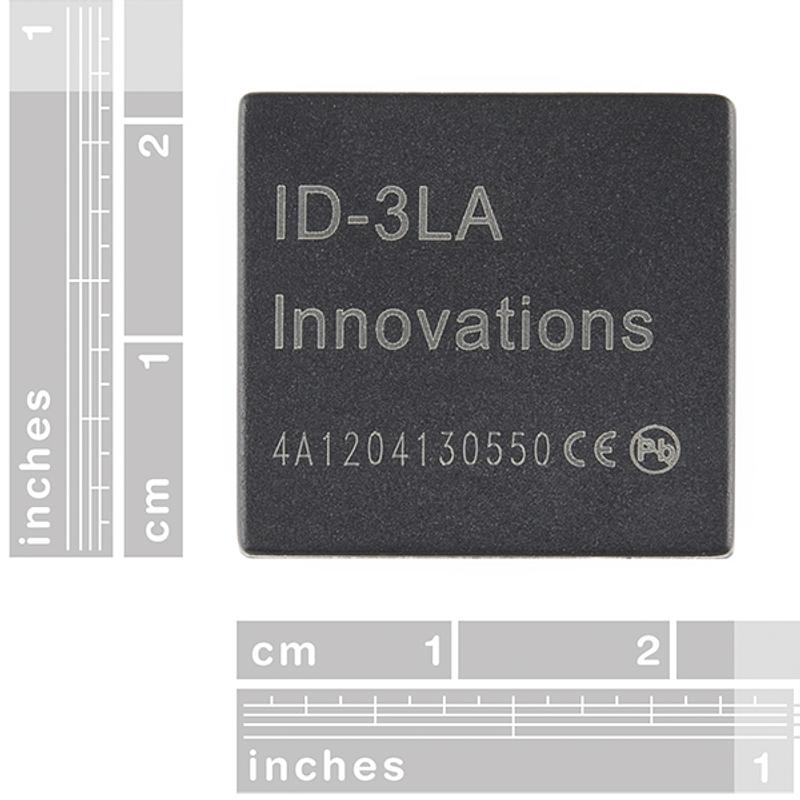

Dimensions: 19x21mm
