Renesas FS3000-1005 SMD Air Velocity Module
· MPN: SEN-29758

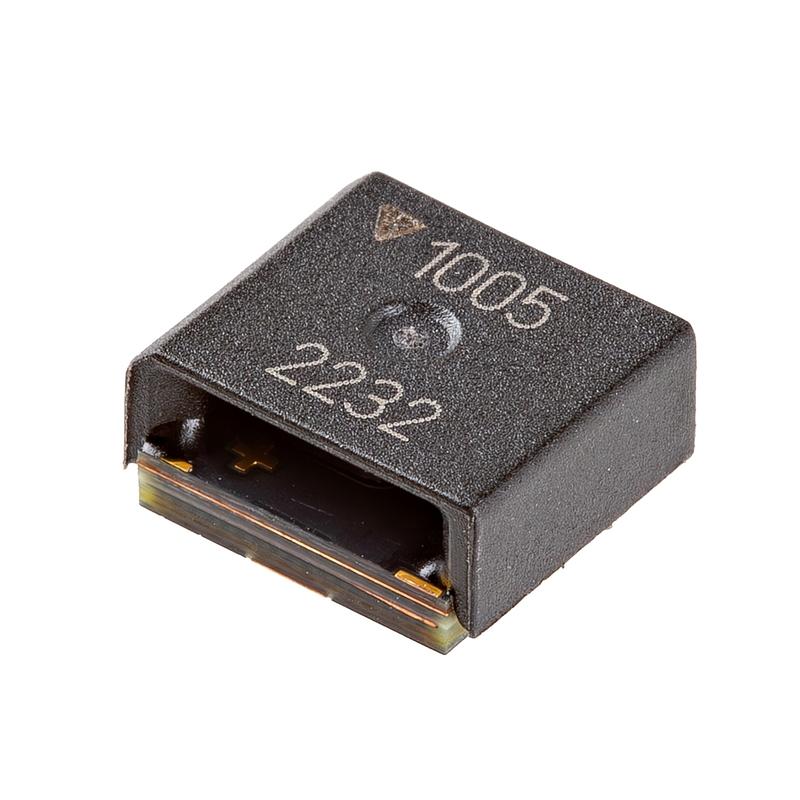

This surface-mount air velocity module uses a MEMS thermopile-based sensor to measure airflow in compact electronic assemblies. It is designed for low-profil...
This surface-mount air velocity module uses a MEMS thermopile-based sensor to measure airflow in compact electronic assemblies. It is designed for low-profile enclosures where board space and height are limited.
The FS3000-1005 provides a digital I2C output and 12-bit resolution, making it suitable for integration with microcontrollers and embedded systems. Its sensing structure uses solid thermal isolation technology and a silicon-carbide coating to help protect against abrasive wear and water condensation.
Features:
- MEMS thermopile-based air velocity sensing
- Digital output with 12-bit resolution
- Solid thermal isolation technology
- Silicon-carbide coating to protect from abrasive wear and water condensation
- Compact design fit for low profile enclosures
Specifications:
- Air Flow Range: 0-7.23m/s (0-16.17mph)
- Digital Output: I2C
- Supply Voltage: 3.3V
- Operating Temperature: -20°C ~ 85°C

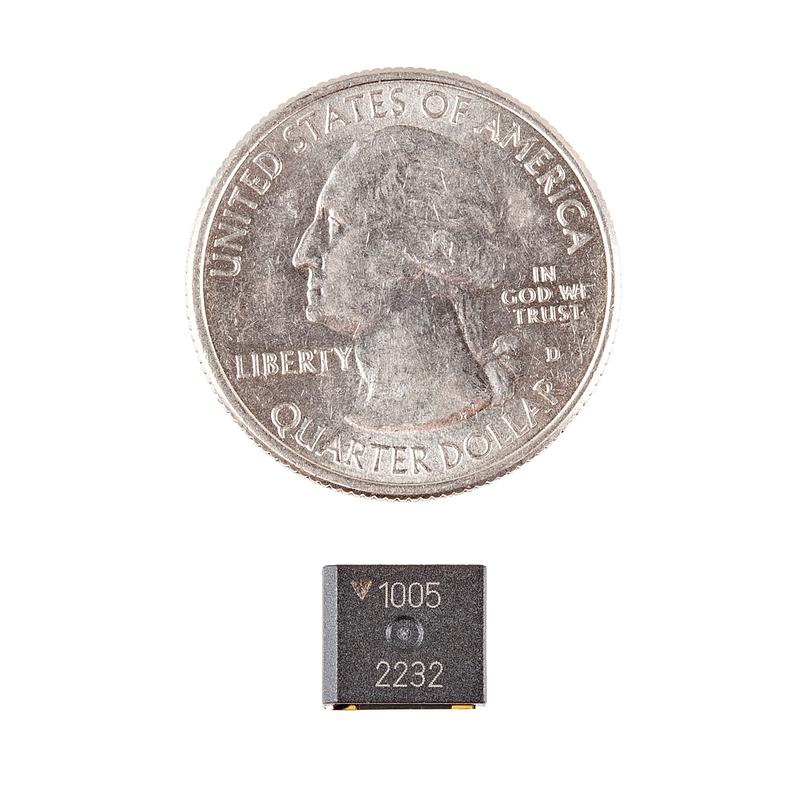

- Dimensions: 8 x 9 x 4mm
- Mfg Part #: FS3000-1005
A useful sensor module for airflow monitoring, ventilation control, and compact embedded sensing projects.
Jargon buster
Plain-language definitions for the technical terms used above.
- 12-bit resolution
- 12-bit resolution means the sensor’s measurement is divided into 4096 possible digital values. Higher resolution can make small changes in motion or tilt easier to detect, as long as the sensor range and noise are suitable for the project.
- I2C
- I2C is a two-wire communication bus used by many sensors and small modules. It matters because several I2C devices can share the same two wires, but each device needs a compatible address and your controller must support I2C.
