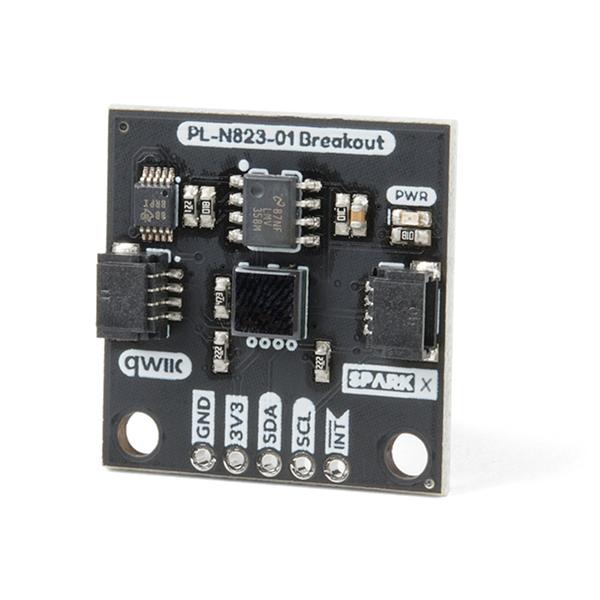

Qwiic IR Breakout
All Products
Breakouts
Infrared & Thermal Sensors
New Arrivals
Sensors
SparkFun
Brands and Manufacturers
Sensors & Modules
Sensors & Input
Prototyping & Wiring
SparkFun Qwiic Ecosystem
$40.30
|
Only 1 left
Have you ever needed to monitor your yogurt in the community fridge because there’s a yogurt thief loose at work? Or have you ever needed the lights to flick...
Get notified when back in stock
Estimated Delivery
Arrives
Order now — ships Thu 6 Aug
Disclaimer
Secure checkout
Have you ever needed to monitor your yogurt in the community fridge because there’s a yogurt thief loose at work? Or have you ever needed the lights to flick on when walking in a room because your hands were full of groceries? The Qwiic IR breakout is the solution to all your people-detecting needs.
This board utilizes Kemet Corporation’s lensless passive infrared sensor, PL-N823. It uses the pyroelectric effect of ceramic by absorbing infrared rays emitted from the human body. This sensor has a 60 degree viewing angle, low power consumption, and low profile which makes it ideal for gathering visual requirements.
Though this is a lensless infrared sensor, placing the sensor behind a material like glass, acrylic, or polyethylene may amplify the distance at which it can detect. The detecting distance varies by what material is used, but the PL-N823 can detect up to 2 meters.
We’ve written some example code using the ADS1015 library. The qwiic IR breakout board includes an ADC which quantifies the amplified source voltage of the IR sensor.
There’s also a rudimentary peak detection example that could notify the user when someone waves their hand across the sensor.
We do not plan to regularly produce SparkX products so get them while they’re hot!
Experimental Product: SparkX products are rapidly produced to bring you the most cutting edge technology as it becomes available. These products are tested but come with no guarantees. Live technical support is not available for SparkX products. Head on over to SparkFun's forum for support or to ask a question.
Jargon buster
Plain-language definitions for the technical terms used above.
- ADC
- An analogue-to-digital converter reads a changing voltage and turns it into a number the microcontroller can use. It matters when connecting analogue sensors such as light, sound, or variable-resistor sensors.
- breakout
- A breakout board carries a small or fine-pitched component and brings its connections out to standard, breadboard- and header-friendly pins. Describing a part as a breakout means it can be wired into a project without soldering directly to the component's tiny contacts.
- Qwiic
- Qwiic is a plug-in connector system for I2C devices that uses small 4-pin cables, so you can connect compatible sensors without soldering. It matters because your controller or adapter also needs Qwiic, or you will need a cable or breakout to wire it up.
